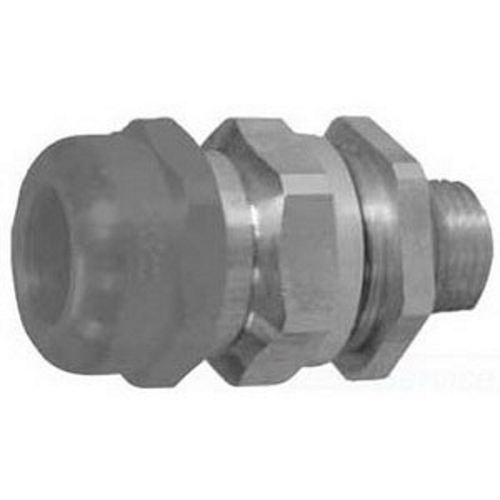

1-1/2 IN HAZ LOC MC CONN ALUM

Armored/Metal Clad Cable Connectors
302121 MFG #: TMCX150A
Appleton™
265.98000 / ea
The TMCX explosionproof, dust-ignitionproof connector features a gas block and epoxy seal for use in hazardous environments. It uses an exclusive union sleeve that simplifies installations and guarantees the reusability of connectors when doing repair or replacements. The TMCX offers stainless steel grounding springs for positive ground continuity and excellent pullout resistance, additional integral deluge proof seals for protection in extreme offshore and onshore locations, and the widest cable acceptance range in the industry.
QTY
  • Applications
  • Features
For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; For hazardous locations; For use on horizontal or vertical run; Independent sealing and armor clamping; True 360 DEG grounding; Superior pull out prevention; Compact slim profile; Widest cable acceptance range; Supplied complete with epoxy sealing compound; Disconnectable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Explosionproof, dust-ignitionproof; Stainless steel grounding spring; LSF-TPE (halogen-free) bushing; Nylon stop and slip washers; Viton o-ring; LTCOMP90 replacement compound
Independent sealing and armor clamping
Superior pull out prevention
Compact slim profile
Widest cable acceptance range
Supplied complete with epoxy sealing compound
Additional integral deluge proof seal for protection in extreme offshore and onshore environments
Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor
For use on horizontal or vertical run
Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor
For hazardous location
0.63 in minimum thread length
2.37 in L nominal assembly
2.62 in envelope diameter
3.2 cc compound weight
Jacketed MC/TECK cable
Copper Free Aluminum
