Appleton™

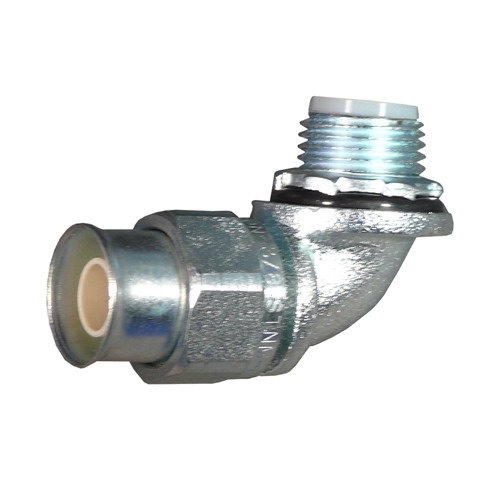

1-1/2 IN 90D LFNC CONN
Custom_Product_Images_Illustration
Appleton™
1-1/2 IN 90D LFNC CONN
SKU17059
MFGR #STNM90150
Your Cost: $187.68/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Connecting To Type A Flexible Nonmetallic Conduit ARRA Compliant N Buy American Compliant N Catalog Number STNM90150 Country of Origin MX Currency USD Dimensions 3-19/32 in L x 2-25/32 in H EU RoHS Indicator C Gross Weight Per Pack 2.0100 lb Gross Weight per Pack Metric 0.91 Gross Weight UOM Metric kg Height 1.80 in Height [Metric] 4.5720 cm Insulation Insulated Throat Length 9.30 in Length [Metric] 23.6220 cm Series STNM Size 1-1/2 IN in Standard Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18, 065178 Standards UL 514BUL File No. E14814CSA C22.2 No. 18CSA 065178RoHS CompliantClass I, Div 2 Suitable For Use With Type A Flexible Non-Metallic Conduit Type STNM Series 90 DEG Liquidtight Connector UNSPSC 39121420 UPC 11 78138123892 UPC 12 781381238922 Width 3.60 in Width [Metric] 9.1440 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle 90 ° Material Steel Trade Size 1-1/2 in For Connecting To Type A Flexible Nonmetallic Conduit Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals; The positive, pull out proof seal formed by a STNM connector begins with its deep-threaded ferrule that bites into the inner wall of the conduit; The sleeve separates the STNM series apart from ordinary connectors; The sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit having a slightly irregular surface or varying wall thickness; The nut rides only on the sleeve and not on the conduit; It cannot bend or twist the conduit and thereby protects wiring; When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing; Ease of assembly and disassembly of STNM connectors permits make-up of harnesses in advance for fast, simple connections during production line assemblies; Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit The sleeve separates the STNM series apart from ordinary connectors The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness The nut rides only on the sleeve and not on the conduit It cannot bend or twist the conduit and thereby protects wiring When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies STNM connectors with exclusive floating sleeve reduces installation time when connecting to Type A nonmetallic flexible conduit
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Connecting To Type A Flexible Nonmetallic Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | STNM90150 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3-19/32 in L x 2-25/32 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 2.0100 lb |
| Gross Weight per Pack Metric | 0.91 |
| Gross Weight UOM Metric | kg |
| Height | 1.80 in |
| Height [Metric] | 4.5720 cm |
| Insulation | Insulated Throat |
| Length | 9.30 in |
| Length [Metric] | 23.6220 cm |
| Series | STNM |
| Size | 1-1/2 IN in |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18, 065178 |
| Standards | UL 514BUL File No. E14814CSA C22.2 No. 18CSA 065178RoHS CompliantClass I, Div 2 |
| Suitable For Use With | Type A Flexible Non-Metallic Conduit |
| Type | STNM Series 90 DEG Liquidtight Connector |
| UNSPSC | 39121420 |
| UPC 11 | 78138123892 |
| UPC 12 | 781381238922 |
| Width | 3.60 in |
| Width [Metric] | 9.1440 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | 90 ° |
| Material | Steel |
| Trade Size | 1-1/2 in |
| For Connecting To Type A Flexible Nonmetallic Conduit |
| Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals; The positive, pull out proof seal formed by a STNM connector begins with its deep-threaded ferrule that bites into the inner wall of the conduit; The sleeve separates the STNM series apart from ordinary connectors; The sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit having a slightly irregular surface or varying wall thickness; The nut rides only on the sleeve and not on the conduit; It cannot bend or twist the conduit and thereby protects wiring; When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing; Ease of assembly and disassembly of STNM connectors permits make-up of harnesses in advance for fast, simple connections during production line assemblies; |
| Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals |
| The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit |
| The sleeve separates the STNM series apart from ordinary connectors |
| The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness |
| The nut rides only on the sleeve and not on the conduit |
| It cannot bend or twist the conduit and thereby protects wiring |
| When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing |
| Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies |
| STNM connectors with exclusive floating sleeve reduces installation time when connecting to Type A nonmetallic flexible conduit |
