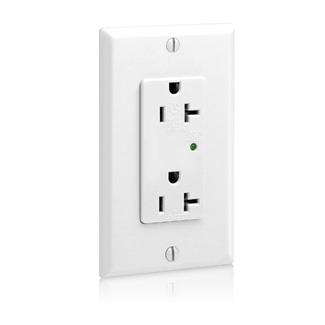

Decora® Plus 5380-W Duplex Straight Blade Surge Protective Receptacle, 20 A, 125 VAC, 2 Poles, 5 kA SCCR
Straight Blade Surge Suppressions
71924
MFG #: 5380-W
Leviton®
50.56000
/ ea
- Application: Commercial
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 5380-W
- Class: Duplex
- Color: White
- Connection: Back Wired;Side Wired in
- Country of Origin: MX
- Currency: USD
- Depth: 1.47 in
- Environmental Conditions: Flammability (Rated UL 94 V-2)
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.3800 lb
- Gross Weight per Pack Metric: 0.17
- Gross Weight UOM Metric: kg
- Height: 5.3750 in
- Height [Metric]: 6.0325 cm
- Insulation: Back Wired;Side Wired
- Length: 12.7500 in
- Length [Metric]: 12.7000 cm
- Material: Polycarbonate
- Mounting: Box
- Operating Temperature: -40 to +60 °C
- Outlet: Duplex kA
- Response Time: Box
- Series: Decora Plus
- Short Circuit Rating: 5 kA
- Size: 3.81 H x 1.7 W x 1.47 D in
- Standard: NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057)
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73UL 498/1449CSA C22.2NOM 057UL94 V-2 Flammability Rating
- Sub Brand: Decora Plus
- Type: Type 3 SPD
- Type Of Indicators: Indicator Light
- UNSPSC: 3.912161E+7
- UPC 11: 07847700923
- UPC 12: 078477009239
- Width: 2.81 in
- Width [Metric]: 7.1450 cm
- Stock Status: NONSTOCK
- Brand: Leviton®
- Manufacturer: Leviton Manufacturing Co., Inc.
- Amperage Rating: 20 A
- Frequency Rating: NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) V
- Phase: 20 A
- Voltage Rating: 125 V
Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- Brochure URL - 10962_5VBKUWY4L1A9CZQD.pdf(Brochure URL)
- http://www.leviton.com(Seller Home Page URL)
- Install Instructions URL - Decora_Plus_5280_B_Instruction_Sheet.pdf(Install Instructions URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10962_3XEWY0M5H8CS6QFP.pdf(Spec Sheet URL)
- Tech Drawing URL - 10962_GA5TQU46H7EVPIRC.jpg(Tech Drawing URL)
- Video - https://youtube.com/embed/iYF5b1yuesM(Video)
- Applications
- Features
| Commercial |
| Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts |
| Indicator light provides visual indication that equipment is being protected |
| EMI/RFI noise filtering |
| Wide variety of color options aid in identifying different types of equipment or applications |
| Back and side wired design with durable metal mounting strap |
| Point of use protection for up to 18000 A of surge current total |
| L-N/L-G modes of protection |
| 720 J energy rating |
| 27 kA peak surge current |
| Self-grounding |
| 27 kA (L-N: 18 kA, L-G: 9 kA) maximum surge current, per mode (per phase) |
| Nylon face |
| Brass-plated steel terminal screws |
| Non-alarmed |
| Tamper resistant |
| Type 3 |
