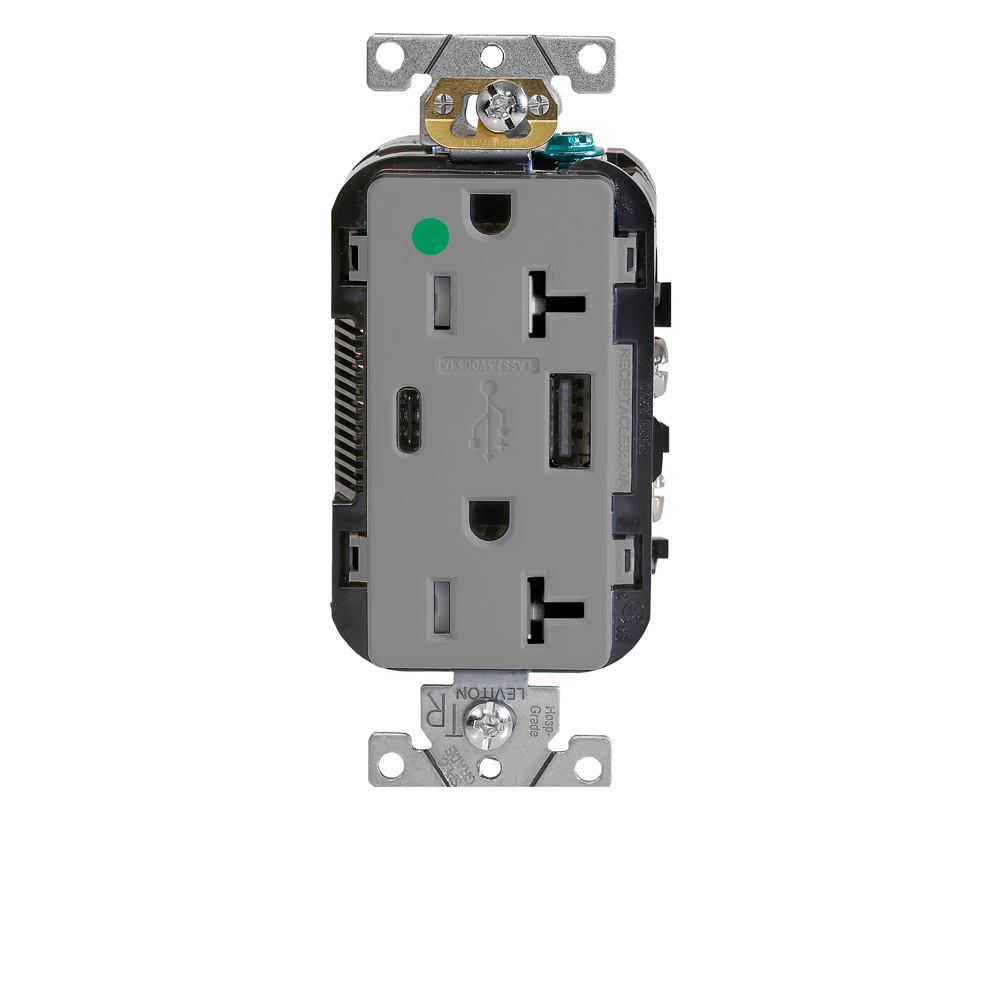

Leviton® Decora® Plus T5833-HGG Combination Heavy Duty Self-Grounding Smooth Face Tamper-Resistant Duplex Receptacle and USB Charger, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Receptacles & USB Ports
1285858
MFG #: T5833-HGG
Leviton®
57.52000
/ ea
- Application: Hospitals, Urgent Care Centers, Lobbies and Waiting Rooms, Assisted Living Facilities and Educa
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: T5833-HGG
- Connection: Screw
- Country of Origin: UKN
- Currency: USD
- Environmental Conditions: -10 to 40 deg C Operating Temperature
- EU RoHS Indicator: C
- Grade: Hospital
- Gross Weight Per Pack: 0.3500 lb
- Gross Weight per Pack Metric: 0.16
- Hazard Class: N
- Height: 4.25 in
- Length: 2.25 in
- Material: Thermoplastic
- Mounting: Threaded/Wall Box
- Size: 4.04 in H x 1.73 in W x 1.68 in D
- Type: Combination Heavy Duty Self-Grounding Smooth Face Tamper-Resistant
- UNSPSC: 39121406
- UPC 11: 07847789423
- UPC 12: 078477894231
- USB Quantity: 2
- USB Rating: 5.1
- USB Type: 2.0 Type A/C
- Width: 2.00
- Width [Metric]: 5.0800
- Wire Size: 14 to 12
- Wiring Method: Back/Side Wired
- Stock Status: NONSTOCK
- Brand: Leviton®
- Manufacturer: Leviton Manufacturing Co., Inc.
- Color: Gray
- Electrical Ratings: 125 VAC, 20 A
- Number of Wires: 3
- Number Of Poles: 2
Leviton® Decora® Plus Duplex Receptacle and USB Charger, Combination Heavy Duty Self-Grounding Smooth Face Tamper-Resistant, 125 VAC, 20 A Electrical Rating, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type-A USB 2.0/C USB, 2 USB Quantity, 5.1 A USB, 4.04 in H x 1.73 in W x 1.68 in D Size, Screw Connection, Threaded/Wall Box Mounting, Hospital Grade, Wiring Method: Back/Side Wired, Thermoplastic, Gray, Environmental Conditions: -10 to 40 d
- Applications
- Features
| Hospitals, Urgent Care Centers, Lobbies and Waiting Rooms, Assisted Living Facilities and Educa |
| Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, pixel and more |
| Tamper-resistant improves child safety built-in shutter prevents access by most non-rated |
| USB ports tested to withstand over 10000 insertions |
| Charges most Type A and Type C USB powered devices |
| Type C port permits the cables to be inserted easily in either direction |
| Charging time may be affected by the charge cord used, Leviton® recommends using the cord provided with the device |
| Compatible with Decora® wallplates and Decora® Plus screwless wallplates |
