Appleton® BD-1 Bus Drop Cable Clamp, 0.4 to 1.19 in, For Use With Exposed Branch Feeder
Flexible Bus Drop Cable Clamps
258128
MFG #: BD-1
Appleton™
19.00000
/ ea
- Application: For Use With Exposed Branch Feeder
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: BD-1
- Country of Origin: US
- Currency: USD
- Dimensions: 6.5 in L x 6.2 in W x 0.74 in H
- EU RoHS Indicator: C
- Finish: Zinc Plated
- Gross Weight Per Pack: 1.3200 lb
- Gross Weight per Pack Metric: 0.60
- Gross Weight UOM Metric: kg
- Height: 0.74 in
- Height [Metric]: 18.7960 mm
- Length: 6.50 in
- Length [Metric]: 16.5100 cm
- Material: Steel
- Mounting Type: Threaded
- Size: 0.4 to 1.19 in
- Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
- Suitable For Use With: Exposed Branch Feeder
- Type: Bus-Drop
- UNSPSC: 39121701
- UPC 11: 78138115630
- UPC 12: 781381156301
- Width: 6.20 in
- Width [Metric]: 15.7480 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Cable Size: 0.4 - 1.19 in
Electrical products that work flawlessly under the harshest conditions go unnoticed everyday. The Appleton brand has long been the hallmark for the protection of people and equipment while delivering reliable power. Count on certified protection for any environment, from ordinary commercial settings to harsh industrial conditions, in any region of the world. Our fittings lighting, and power distribution solutions are designed to operate without incident: because failure is not an option.
- http://www.appletonelec.com(Seller Home Page URL)
- Line Drawing URL - 11043_BD-1LINE.jpg(Line Drawing URL)

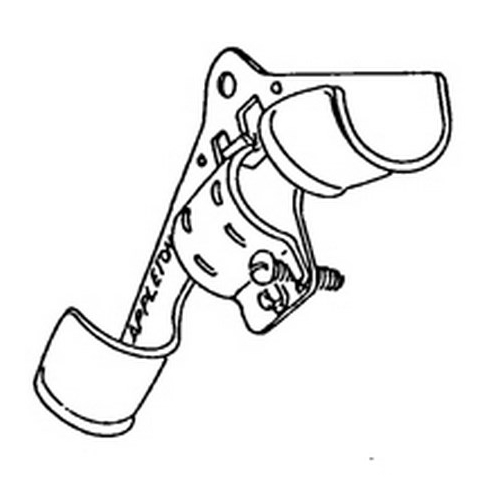

- Line Drawing URL - BD-1LINE.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_781381156301_Spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381156301_Spec.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Exposed Branch Feeder |
| Clamps provide maximum versatility of installation where equipment is likely to be moved from one location to another Installation is fast and modification is simple; One clamp covers entire range of cable sizes and can be used for one 90 DEG bend |
| Clamps provide maximum versatility of installation where equipment is likely to be moved from one location to another installation is fast and modification is simple |
| One clamp covers entire range of cable sizes and can be used for one 90 deg bend |
| Supports cable in flexible connecting circuits used to feed equipment |
| Mooring cable clamps are used to attach a guy wire to the cable where it leaves bus structure, thus preventing wire terminal strain and possible conductor breakage |
| Cable is run in fixed overhead bused structures to a point directly above equipment then dropped with a 90 deg bend |
| At the point of drop, the cable clamp is installed to support the cable |
| Two clamps, back to back, allow for an additional loop providing extra cable footage when a machine is likely to be moved |
| Two-piece construction |
