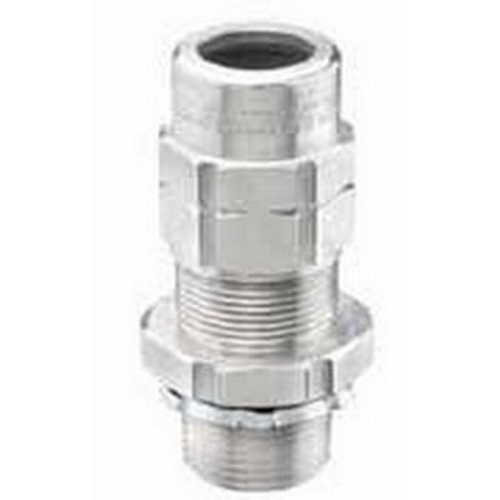

Appleton® TMC2-100118A TMC2 Cable Connector, 1 in Trade, 0.87 to 1.18 in Cable Openings, Aluminum
Armored/Metal Clad Cable Connectors
761726
MFG #: TMC2100118A
Appleton™
63.62000
/ ea
- Angle: 360 °
- Application: For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
- ARRA Compliant: N
- Buy American Compliant: N
- Cable Type: JMC/MC/Teck
- Catalog Number: TMC2100118A
- Connection: NPT
- Connection Type: NPT
- Country of Origin: IN
- Currency: USD
- Dimensions: 1.81 in Dia Across Flat x 1.95 in Dia Across Corner x 3.11 in L
- Enclosure: IP66
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.5000 lb
- Gross Weight per Pack Metric: 0.23
- Gross Weight UOM Metric: kg
- Height: 2.40 in
- Height [Metric]: 6.0960 cm
- Length: 4.70 in
- Length [Metric]: 11.9380 cm
- NEMA Rating: NEMA 4X
- Series: TMC2
- Size: 1 IN in
- Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zones 1 And 2, AExe II AEx tA IIC; Class I, Zones 1 And 2, Exe II Ex tA IIC; Class II, Divisions 1 And 2, Groups E, F, G; Class III, Divisions 1 And 2; UL 514B, 2225, CSA C22.2 No. 174, 249506
- Temperature Rating: -60 to 110 °C
- Type: TMC2 Series Cable Gland Connector
- UNSPSC: 39121431
- UPC 11: 78138130076
- UPC 12: 781381300766
- Width: 2.40 in
- Width [Metric]: 6.0960 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Cable Openings: 0.87 to 1.18 in
- Material: Copper Free Aluminum
- Trade Size: 1 in
The TMC2 Series of cable connectors can be used in Class I, II and II locations. They are designed for use with following MC/MC-HL, corrugated interlocked aluminum/steel armor, or continuously welded armor cables. the TMC2 connectors provide a means for terminating jacketed type MC cable by forming a mechanical watertight connection and providing ground continuity for cable armor.
- Applications
- Features
| For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable |
| TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent sealing and armor clamping; True 360 DEG grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Reduced installation time (no disassembly required); Widest cable acceptance range; Re-usable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Stainless steel grounding spring; LSF-TPE (halogen free) bushing; Nylon end stop washer; Viton o-ring |
| Simplified two piece design |
| Integral 'O' ring face seal providing - 4X and IP66 |
| Independent sealing and armor clamping |
| Removable cable armor end stop accommodates larger insulated conductors |
| Superior pull-out prevention |
| Compact slim profile |
| Reduced installation time |
| Widest cable acceptance range |
| Re-usable design |
| Additional integral deluge proof seal for protection in extreme offshore and onshore environments |
| Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut |
| 1.81 in across corner Flat x 1.95 in across corner |
| 0.79 - 1.1 in cable armor diameter |
| 0.98 in thread length |
| 2.13 in L nominal assembly |
| Copper Free Aluminum |
| 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut |
