Fluke® FLUKE-1555/KIT Insulation Tester Kit, 1000 V, 2 mA, 50/60 Hz, 200 kOhm to 2 TOhm, 5 Pieces

Insulation Testers
717208 MFG #: FLUKE-1555/KIT
Fluke®
7831.99000 / ea

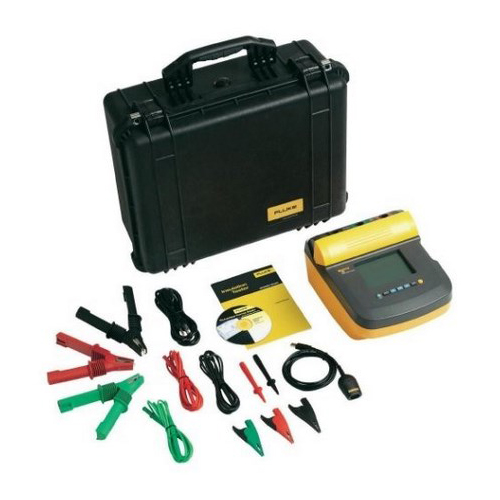

11095_PIC_FLUKE-1555_KIT
  • Alternate Catalog Number: 3665111
  • Amperage Rating: 2m A
  • Application: For Capturing And Trending anomalies for troubleshooting, commissioning and preventative maintenance of insulation resistance
  • ARRA Compliant: C
  • Buy American Compliant: C
  • Catalog Number: FLUKE-1555/KIT
  • Country of Origin: US
  • Currency: USD
  • Dimensions: 269 MM Length X 277 MM Width X 160 MM Height
  • Display: 75 MM Height X 105 MM Width LCD
  • Enclosure: IP40
  • EU RoHS Indicator: U
  • Frequency Response: 50/60 Hz
  • Gross Weight Per Pack: 7.9400 lb
  • Gross Weight per Pack Metric: 3.60
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 9030310000
  • Height: 6.70 in
  • Height [Metric]: 17.0180 cm
  • Interface Type: PC Port
  • Length: 13.00 in
  • Length [Metric]: 33.0200 cm
  • Resistance Range: 200 KOHM - 2 TOHM
  • Standard: CSA, CE Certified, EN 61326, IEC 61010-1: Overvoltage category II, Pollution Degree 2, IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT IIIIEC 61557-1, IEC 61557-2, C/UL Listed
  • Standards: CE Certified, CSA Certified, TUV, N10140 Registered, IEC 61010-2-030- Measurement 600V CAT IV / 1000V CAT IIIIEC 61557-1, IEC 61557-2, C/UL Listed
  • Type: Insulation Tester Kit
  • UNSPSC: 41113624
  • UPC 11: 09596955097
  • UPC 12: 095969550970
  • Width: 9.50 in
  • Width [Metric]: 24.1300 cm
  • Stock Status: NONSTOCK
  • Brand: Fluke®
  • Manufacturer: Fluke Corporation
  • Voltage Rating: 250/500/1,000/2,500/5,000/10,000 V
QTY
Add to Wishlist
  • Applications
  • Features
For Capturing And Trending anomalies for troubleshooting, commissioning and preventative maintenance of insulation resistance
Test voltages to up 10 KV and save time by trending on the spot only with fluke Connect; Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety, selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V; Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall, long battery life gives the user over 750 tests between chargesAutomatic calculation of dielectric Absorption (DAR) and polarization Index (PI) with no additional setup, guard system eliminates the effect of surface leakage current on high-resistance measurements, large digital/analog LCD for easy viewing, capacitance and leakage current measurement, ramp function for breakdown testing; Resistance measurements up to 2 TOHM, timer settings up to 99 MINT for timed tests
Test voltages to up 10 kV and save time by trending on the spot only with fluke connect
Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 VAC/ VDC for increased user safety, selectable test voltages in 50 V steps from 250 - 1000 V, and 100 V steps above 1000 V
Long battery life gives the user over 750 tests between charges
Automatic calculation of dielectric absorption (DAR) and polarization index (PI) with no additional setup
Ramp function for breakdown testing
Timer settings up to 99 minutes for timed tests
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
75 x 105 mm LCD, Digital LCD/analog display
2 deg pollution, -20 to 50 deg C temperature rating, IP rating IP40
5 - 20% accuracy
PC port interface
Hardplastic enclosure
Voltage rating - 250, 500, 1000, 2500, 5000, 10000 V
