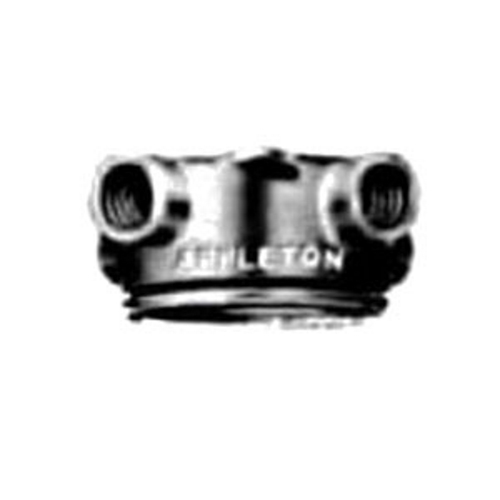

Appleton® V-51® VX-75 Ceiling Mounting Hood, For Use With V-51 Series Incandescent Lighting Fixture, 3/4 in Hub
Custom_Product_Images_Illustration
Appleton® V-51® VX-75 Ceiling Mounting Hood, For Use With V-51 Series Incandescent Lighting Fixture, 3/4 in Hub
SKU280530
MFGR #VX75
Your Cost: $184.03/ea
Appleton® V-51® Ceiling Mounting Hood, For Use With: V-51 Series Incandescent Lighting Fixture, 3/4 in Hub, Malleable Iron, Zinc Plated
Appleton® V-51® Ceiling Mounting Hood, For Use With: V-51 Series Incandescent Lighting Fixture, 3/4 in Hub, Malleable Iron, Zinc Plated
Application For V-51 Series Convertible Vaportight Incandescent Luminaire Accessories ARRA Compliant N Buy American Compliant N Catalog Number VX75 Country of Origin MX Currency USD Enclosure NEMA 3R EU RoHS Indicator N Finish Chromate/Epoxy Powder Coat/Zinc Electroplate Fixture Wattage 60-300 W Gross Weight Per Pack 2.8300 lb Gross Weight per Pack Metric 1.28 Gross Weight UOM Metric kg Height 1.03 in Height [Metric] 2.6238 cm Lamp Type 60 - 300 WTT Medium Incandescent Length 10.80 in Length [Metric] 27.4320 cm Mounting Ceiling Size 3/4 IN in Standard NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 Standards UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III Sub Brand UNILETS Type Ceiling UNSPSC 39111817 UPC 11 78138173795 UPC 12 781381737951 Width 10.20 in Width [Metric] 25.9080 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Malleable Iron Specifications 3/4 in Hub, 60 to 300 W Fixture/Lamp Suitable For Use With V-51™ Convertible Vaportight Incandescent Luminaries For V-51 Series Convertible Vaportight Incandescent Luminaire Accessories Furnished with connection block, gasket and screws; Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; For use with threaded metal conduit; Fixtures suitable for use in wet locations; Enclosed and gasketed lighting fixtures for use in storage areas, tunnels, subways, chemical plants and other areas where moisture, dirt or corrosive atmospheres are a problem Incandescent lamp Four hubs Furnished with connection block for easy wiring Unitized construction reduces installation and maintenance costs Medium incandescent lamp 60 - 300 W fixture and lamp wattage Zinc electroplated/chromate/epoxy powder coated finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For V-51 Series Convertible Vaportight Incandescent Luminaire Accessories |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | VX75 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 3R |
| EU RoHS Indicator | N |
| Finish | Chromate/Epoxy Powder Coat/Zinc Electroplate |
| Fixture Wattage | 60-300 W |
| Gross Weight Per Pack | 2.8300 lb |
| Gross Weight per Pack Metric | 1.28 |
| Gross Weight UOM Metric | kg |
| Height | 1.03 in |
| Height [Metric] | 2.6238 cm |
| Lamp Type | 60 - 300 WTT Medium Incandescent |
| Length | 10.80 in |
| Length [Metric] | 27.4320 cm |
| Mounting | Ceiling |
| Size | 3/4 IN in |
| Standard | NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 |
| Standards | UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III |
| Sub Brand | UNILETS |
| Type | Ceiling |
| UNSPSC | 39111817 |
| UPC 11 | 78138173795 |
| UPC 12 | 781381737951 |
| Width | 10.20 in |
| Width [Metric] | 25.9080 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Material | Malleable Iron |
| Specifications | 3/4 in Hub, 60 to 300 W Fixture/Lamp |
| Suitable For Use With | V-51™ Convertible Vaportight Incandescent Luminaries |
| For V-51 Series Convertible Vaportight Incandescent Luminaire Accessories |
| Furnished with connection block, gasket and screws; Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; For use with threaded metal conduit; Fixtures suitable for use in wet locations; Enclosed and gasketed lighting fixtures for use in storage areas, tunnels, subways, chemical plants and other areas where moisture, dirt or corrosive atmospheres are a problem |
| Incandescent lamp |
| Four hubs |
| Furnished with connection block for easy wiring |
| Unitized construction reduces installation and maintenance costs |
| Medium incandescent lamp |
| 60 - 300 W fixture and lamp wattage |
| Zinc electroplated/chromate/epoxy powder coated finish |
