Appleton™

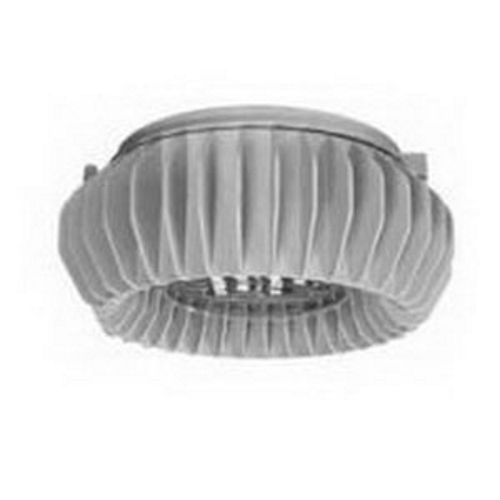

Appleton® MLEDNA102P5BH MM LED BB 100W BH
Custom_Product_Images_Illustration
Appleton™
Appleton® MLEDNA102P5BH MM LED BB 100W BH
SKU722814
MFGR #MLEDNA102P5BH
Your Cost: $1,821.45/ea
Appleton MLEDNA102P5BH Mercmaster Enclosed And Gasketed Luminaire, Fixture Type: Pendant (Rigid Mounting), Lamp Type: 46 WTT 3450 LM 70 CRI 60000 HR 5650 DEG K LED, Lamp Wattage: 46 WTT, Voltage Rating: 347 - 480 VAC, Material: Cast Copperfree (4/10 Of 1
Appleton MLEDNA102P5BH Mercmaster Enclosed And Gasketed Luminaire, Fixture Type: Pendant (Rigid Mounting), Lamp Type: 46 WTT 3450 LM 70 CRI 60000 HR 5650 DEG K LED, Lamp Wattage: 46 WTT, Voltage Rating: 347 - 480 VAC, Material: Cast Copperfree (4/10 Of 1
Amperage Rating 0.2/0.41 A ARRA Compliant N Average Life 60000 hr Buy American Compliant N Catalog Number MLEDNA102P5BH Color Rendering Index [CRI] 70 Color Temperature 5650 K Country of Origin MX Currency USD Dimensions 15.4 in L x 15.4 in W Enclosure Type NEMA 3R/4X/IP66/IP67 EU RoHS Indicator C Fixture Type Pendant (Rigid Mounting) Gross Weight Per Pack 1 lb Housing Material Cast Copper-Free Aluminum Lamp Wattage 46 W Lens Type Polycarbonate Globe Light Output 71 Lumens/W Lumens 3450 Lumens Mounting Type Pendant Series MLEDN Standard ATEX/IECEx: Zone 2 and 22; Ex II 2 GD Sub Brand Mercmaster Type Type V Symmetrical Enclosed Gasketed UNSPSC 39112102 UPC 11 78138196097 UPC 12 781381960977 Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 46/47.5 W Housing Finish Baked Gray Epoxy Clad Lamp Type LED Voltage Rating 347 to 480 VAC For Marine And Wet Locations, Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust, Corrosive Atmosphere Or High Ambient Temperatures Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem Compact light weight low profile design is suited for low mounting heights; Modular design allows scores of fixture component combinations to meet installation needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction assures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; NPT and metric threads standard; NEMA type V symmetrical light distribution
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 0.2/0.41 A |
| ARRA Compliant | N |
| Average Life | 60000 hr |
| Buy American Compliant | N |
| Catalog Number | MLEDNA102P5BH |
| Color Rendering Index [CRI] | 70 |
| Color Temperature | 5650 K |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 15.4 in L x 15.4 in W |
| Enclosure Type | NEMA 3R/4X/IP66/IP67 |
| EU RoHS Indicator | C |
| Fixture Type | Pendant (Rigid Mounting) |
| Gross Weight Per Pack | 1 lb |
| Housing Material | Cast Copper-Free Aluminum |
| Lamp Wattage | 46 W |
| Lens Type | Polycarbonate Globe |
| Light Output | 71 Lumens/W |
| Lumens | 3450 Lumens |
| Mounting Type | Pendant |
| Series | MLEDN |
| Standard | ATEX/IECEx: Zone 2 and 22; Ex II 2 GD |
| Sub Brand | Mercmaster |
| Type | Type V Symmetrical Enclosed Gasketed |
| UNSPSC | 39112102 |
| UPC 11 | 78138196097 |
| UPC 12 | 781381960977 |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 46/47.5 W |
| Housing Finish | Baked Gray Epoxy Clad |
| Lamp Type | LED |
| Voltage Rating | 347 to 480 VAC |
| For Marine And Wet Locations, Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust, Corrosive Atmosphere Or High Ambient Temperatures Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem |
| Compact light weight low profile design is suited for low mounting heights; Modular design allows scores of fixture component combinations to meet installation needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction assures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; NPT and metric threads standard; NEMA type V symmetrical light distribution |
