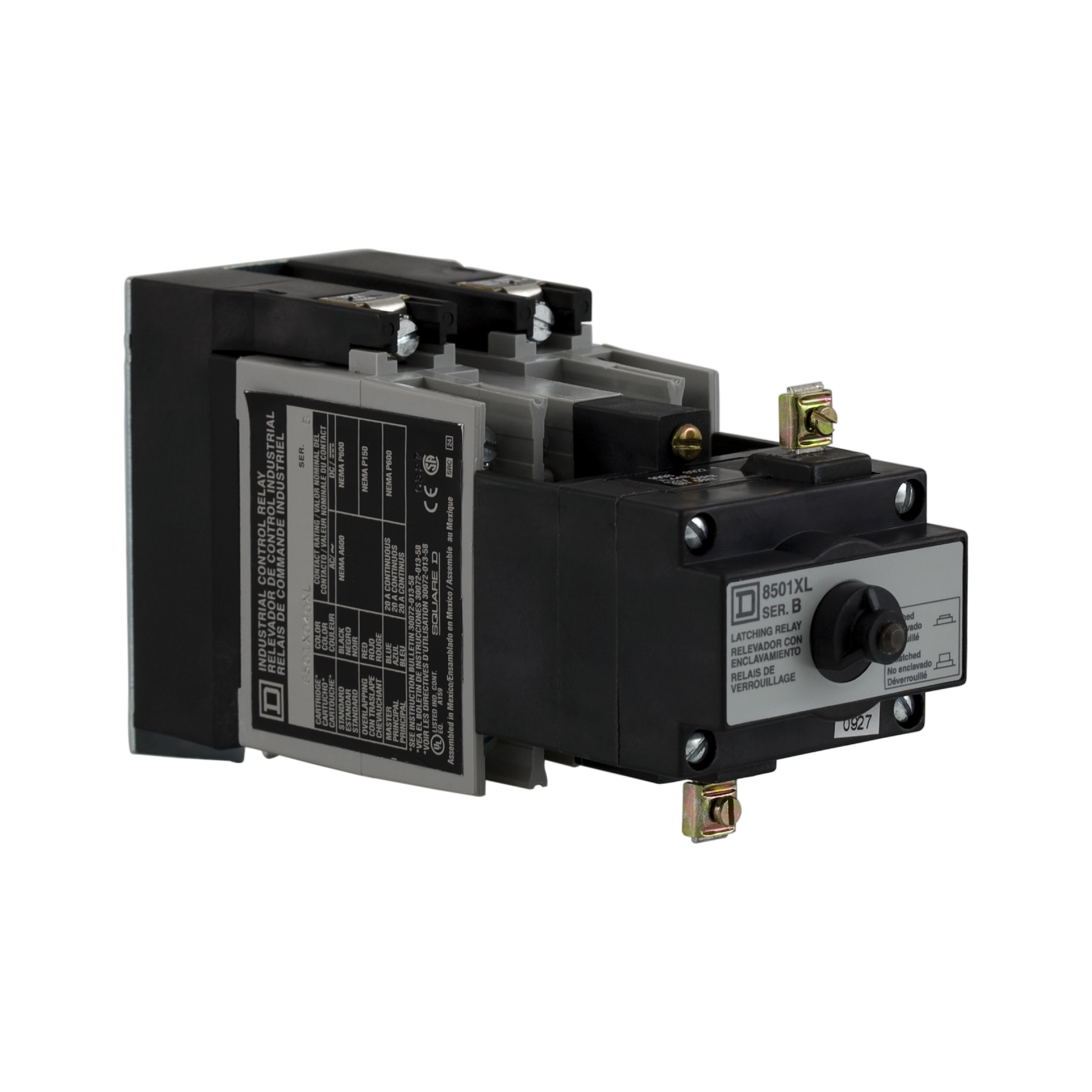

Square D™ 8501XO40XLV02 Latching Control Relay, 5/10 A, 4NO Contact Form, 110 to 120 VAC Coil
Latching Relays
31666
MFG #: 8501XO40XLV02
Square D™
360.00000
/ ea
- Alternate Catalog Number: 8501XO40XLV02
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 8501XO40XLV02
- Coil: 110 V AC 50 Hz;120 V AC 60 Hz
- Connection: Screw clamp terminals
- Contact Configuration: 4 NO 4 STANDARD CONTACT CARTRIDGES
- Contact Rating: 10 A AC-5 A DC,600 V AC
- Country of Origin: MX
- Currency: USD
- Depth: 6.54 in
- Dimensions: 3.5 in H x 3.95 in W x 1.12 in D
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 131.97
- Gross Volume per Pack Metric: 2162.54
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 2.9500 lb
- Gross Weight per Pack Metric: 1.34
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536490080
- Height: 8.3820 in
- Height [Metric]: 8.3820 cm
- Item Group: 21158
- Length: 23.6220 in
- Length [Metric]: 23.6220 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=368997&lang=en-us
- Mounting: Panel
- Mounting Type: Panel
- Number Of Poles: 4
- Operating Temperature: -40-160 A°F
- Returnable: N
- Series: 8501
- Size: 6.54 in
- Standard: CE-CSA-UL LISTED
- Standards: ARRA, Buy American Act, REACH, RoHS Compliant, CE, CSA Certified, UL Listed
- Substitute Product Catalog Number: 8501XC1
- Temperature Rating: -40 to 160 °F
- Terminal Type: Screw/Clamp
- Type: Latching
- UNSPSC: 39122331
- UPC 11: 78590102850
- UPC 12: 785901028505
- Warranty Description: Contractual Warranty:18 months
- Width: 10.9220 in
- Width [Metric]: 10.9220 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 5/10 A
- Coil Voltage: 110 to 120 VAC
- Contact Form: 4NO
Square D 8501XO40XLV02 RELAY 600VAC 10AMP NEMA +OPTIONS,-40...160 deg.F,110 Vac50Hz - 120 Vac60Hz,4 NO 4 standard contact cartridges,A600 - P600,AC 10A - DC 5A,Pick-Up 15ms - Drop-Out 13ms,Screw Clamp,UL Listed - CSA Certified - CE Marked,latching,relay,panel
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8155328360Den&ext=webp(360 Degree View URL)
- Brochure URL - bd344c0c924bdad7f5680eaf84bb6dceb5ba1891.pdf(Brochure URL)
- Catalog URL - Square_D_8501XO40XLV02_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0700901-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_RH5KXU38MAO21SP9.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_GYDUAFL81B4NPCTZ.pdf(Service Manual URL)
- Service Manual URL - 11003_NZ1KDGHWX2BET8QJ.pdf(Service Manual URL)
- Spec Sheet URL - 11003_XIC2AHBO1YK6RTPV.pdf(Spec Sheet URL)
- Tech Drawing URL - 4493ed4dd92e74a87f36e61c6eca30974c166e21(Tech Drawing URL)
- Video - https://www.youtube.com/embed/C4x62XLnW3g(Video)
- Video - https://youtube.com/embed/DQ5NrwpQMD8(Video)
- Features
| SCREW CLAMP TERMINALS |
| Modular design provides greater versatility and reduction in stock |
| Extremely reliable contacts |
| Plug-in color coded contact cartridges |
| Mechanical tie between contact cartridges |
| 110 VAC 50 Hz, 120 VAC 60 Hz control circuit voltage |
| 10 A AC, 5 A DC rated current |
| 15 ms pick-up, 13 ms drop-out operating time |
