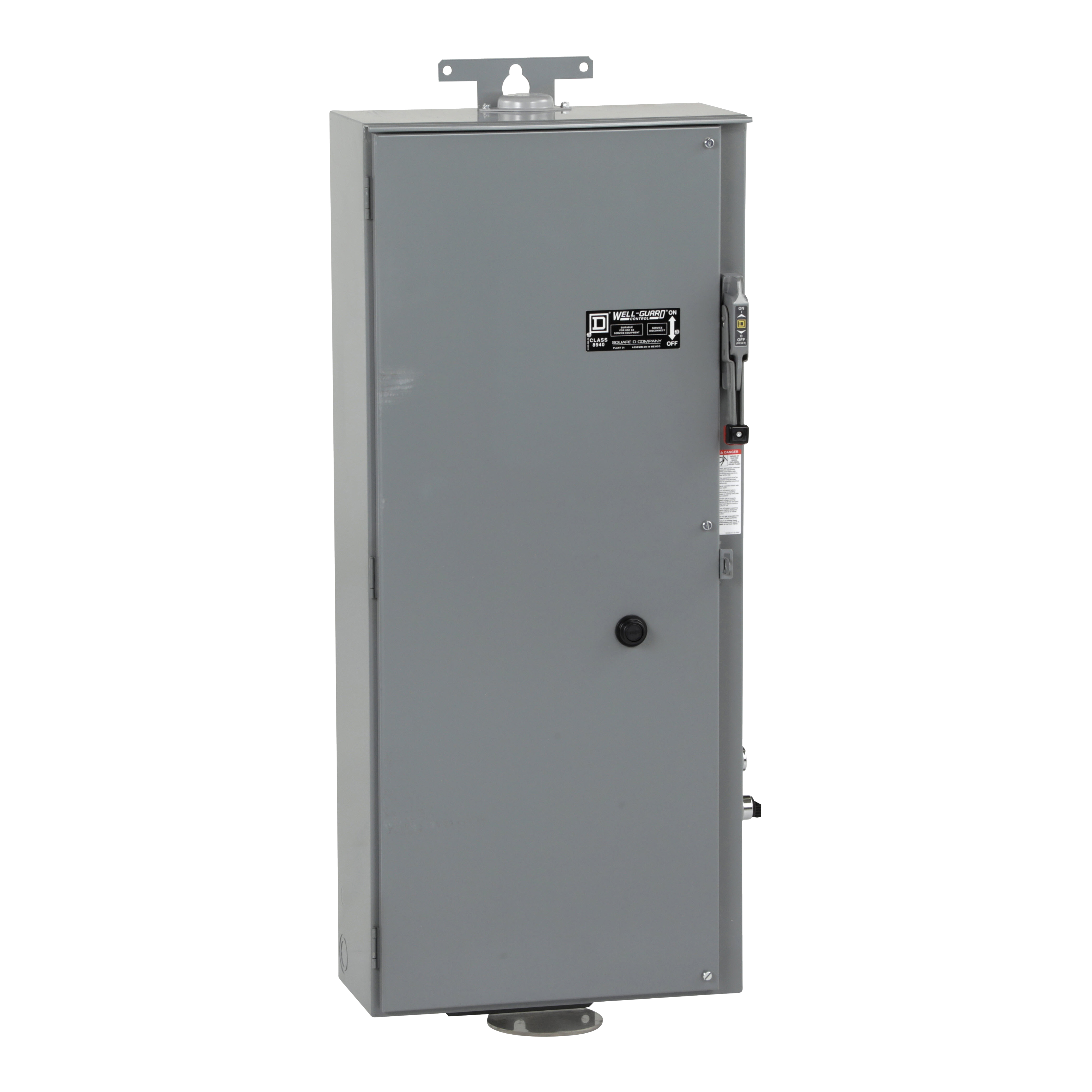

Square D™ Well-Guard® SS Series Pump Panel, 3 Poles, NEMA 3R Enclosure
Pump Control Panels
901246
MFG #: 8940SSE4050V02S
Square D™
4194.00000
/ ea
- Alternate Catalog Number: 8940SSE4050V02S
- Amperage Rating: 90/100 A
- Application: Pumping
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 8940SSE4050V02S
- Connection: Screw Terminal
- Connection Type: Screw
- Control Type: Pushbutton START/Selector Switch HAND-OFF-AUTO
- Country of Origin: MX
- Currency: USD
- Dimensions: 49 in H x 19.15 in W x 10.37 in D
- Disconnect Type: Fusible disconnect switch
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 15249.00
- Gross Volume per Pack Metric: 249885.36
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 100.0000 lb
- Gross Weight per Pack Metric: 45.36
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8537109150
- Height: 12.87 in
- Height [Metric]: 33.0000 cm
- Item Group: 21389
- Length: 50.50 in
- Length [Metric]: 129.5000 cm
- Motor Power: 50 hp
- Mounting: Surface
- Phase: 3 pH
- Power Supply: 120VAC@60HZ - 110VAC@50HZ
- Reset Type: Class 10/20 Solid State Motor Logic
- Returnable: Y
- Series: SS Series
- Size: SZ 3 in
- Standard: UL LISTED-NEMA
- Sub Brand: SQUARE D,WELL-GUARD CONTROL,CLASS 8940 TYPE SS
- Substitute Product Catalog Number: 9999SX10
- UNSPSC: 39121521
- UPC 11: 78590135302
- UPC 12: 785901353027
- Voltage Rating: 120/110 VAC
- Warranty Description: Contractual Warranty:18 months
- Width: 22.78 in
- Width [Metric]: 58.4000 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Enclosure Type: NEMA 3R
- Type: Weatherproof
- Number Of Poles: 3
Square D 8940SSE4050V02S PUMP PANEL 480VAC 90AMP NEMA +OPTIONS,100A,110 V AC 50 Hz-120 V AC 60 Hz,120VAC60Hz - 110VAC50Hz,3-Phase,50 hp 460 V AC 3 phases,NEMA 3R,NEMA Rated - UL Listed,Pump Panel,Screw,Well-Guard,enclosure weatherproof indoor/outdoor,solid state Motor Logic class 10
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=7998145360Den&ext=webp(360 Degree View URL)
- Brochure URL - dac678458a69450e00cea5f509ad969366de48b5.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_8940SSC4010_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_EZGXMJPYLI5340BN.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_FCSI0RBVEDG2PTH5.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_4QVEFTSCJHIDOYB5.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_1YBNUC8A29FLJX7S.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_S5IC7ZJE8O6Q9F2X.pdf(Tech Drawing URL)
- Applications
- Features
| Pumping |
| OVERLOAD-PHASE LOSS-PHASE UNBALANCE |
| 100 A associated fuse rating |
| Surface device mounting |
| Switch disconnect or fuse protection |
| Separate control circuit stage of operation |
| Solid state motor logic Class 10 thermal overload type |
| 50 hp 460 VAC, 50 hp at 480 VAC for 3-phase motor power |
| 120 VAC at 60 Hz, 110 VAC at 50 Hz system voltage |
| 120 VAC at 60 Hz, 110 VAC at 50 Hz system voltage |
