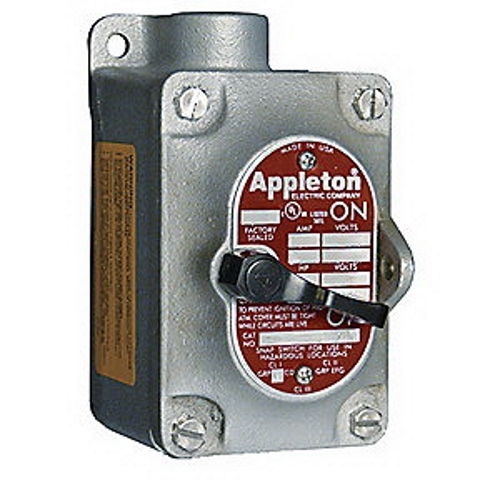

Appleton® Unilets™ EDS150-F1 EDS Tumbler Switch, 120/277 VAC, 20 A, 2 hp
Tumbler-Snap Switch Control Stations
17270
MFG #: EDS150-F1
Appleton™
361.34000
/ ea
- Actuator: Lever
- Application: For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: EDS150-F1
- Connection Type: Threaded
- Country of Origin: MX
- Currency: USD
- Dimensions: 5.38 in H x 3 in W x 4.69 in D
- Enclosure: NEMA 7CD, 9EFG
- EU RoHS Indicator: C
- Finish: Triple Coated
- Gross Weight Per Pack: 5.1300 lb
- Gross Weight per Pack Metric: 2.33
- Gross Weight UOM Metric: kg
- Height: 4.80 in
- Height [Metric]: 12.1920 cm
- Length: 7.50 in
- Length [Metric]: 19.0500 cm
- Material: Malleable Iron
- Mounting: Surface Mount With 1/2 IN Dead-End Hub
- Mounting Type: Surface
- Number Of Poles: 1
- Series: EDS
- Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III
- Standards: RoHS Compliant, UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C and D, Class II, Groups E, F, G, and Class III
- Sub Brand: UNILETS
- Type: 1-Gang Dead End
- UNSPSC: 39121565
- UPC 11: 78138132539
- UPC 12: 781381325394
- Width: 5.70 in
- Width [Metric]: 14.4780 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Amperage Rating: 20 A
- NEMA Rating: NEMA 7CD/9EFG
- Voltage Rating: 120 to 277 VAC
EDS Series factory sealed tumbler switches prevent ignition of hazardous atmospheres by containing any arcing within a factory sealed enclosure. Many models are suitable for use in locations where Group B gases (hydrogen) are present. Front operated and side rocker arm models are available, and both types can be padlocked in either the on or off position.
- Applications
- Features
| For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
| Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking |
| Enclosures have external mounting lugs for ease of mounting |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Enclosures furnished with internal ground screw |
| Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch |
| Tumbler switch devices are approved for installation without additional external sealing fittings |
| 20 A 4-way and all 30 A models utilize a switch enclosed in separate sealing chamber |
| Smooth double face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flametight construction |
| Sealing chamber has prewired factory sealed pigtail leads to switch |
| Threaded stainless steel operating handle provides positive corrosion resistant operation |
| Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction |
| Pad lockable in the on or off position |
| Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads |
| For use in classified areas where ignitable vapors, gases or highly combustible dusts are present. For installation in chemical plants, petrochemical plants, refineries, other process industries |
| Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure. Stainless steel hex head cap screws for attaching cover to mounting enclosure. On/off legend marking |
| Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements. Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads |
| 1/2 in dead-end hub |
| 1 gang |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Nylon 6/6 handle. Triple-coat (zinc electroplate, chromate and epoxy powder coat) finish, Front operated lever actuator |
