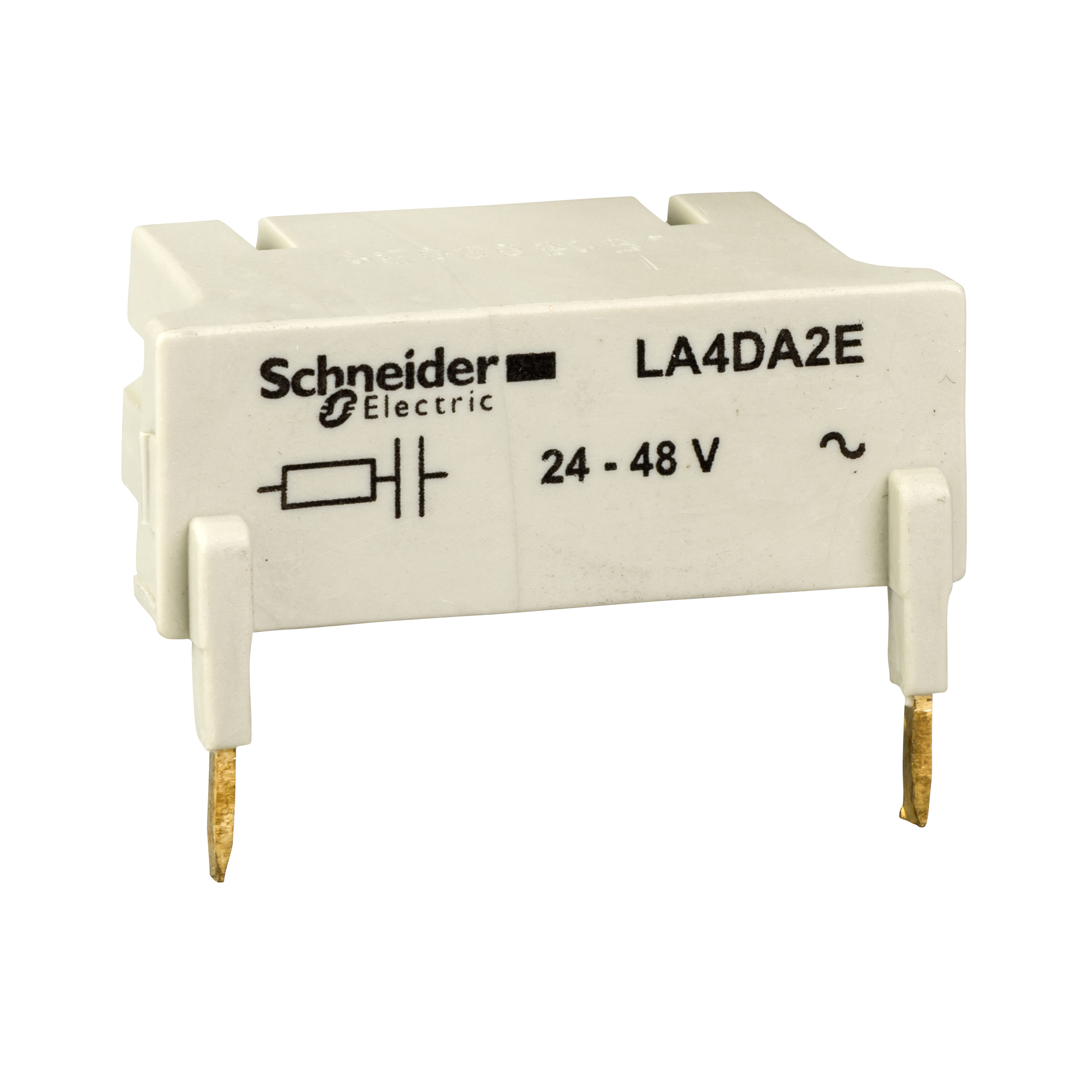

Schneider Electric Square D™ LA4DA2E RC Circuit Suppressor Module, 3/4 Poles, For Use With TeSys™ D LC1D80 to LC1D150, LC1D80004 to D115004, LC1D40008 to D80008 Contactor
Custom_Product_Images_Illustration
Schneider Electric Square D™ LA4DA2E RC Circuit Suppressor Module, 3/4 Poles, For Use With TeSys™ D LC1D80 to LC1D150, LC1D80004 to D115004, LC1D40008 to D80008 Contactor
SKU402629
MFGR #LA4DA2E
Your Cost: $31.61/ea
Schneider Electric Square D™ Suppressor Module, RC Circuit, Series: LA4D, 3/4 Pole, For Use With: TeSys™ D LC1D80 to LC1D150, LC1D80004 to D115004, LC1D40008 to D80008 Contactor, Specifications: 24 to 48 VAC at 50/60 Hz Coil, 3 Uc Maximum Peak, -13 to 131 deg F Temperature, Screw Mount
Schneider Electric Square D™ Suppressor Module, RC Circuit, Series: LA4D, 3/4 Pole, For Use With: TeSys™ D LC1D80 to LC1D150, LC1D80004 to D115004, LC1D40008 to D80008 Contactor, Specifications: 24 to 48 VAC at 50/60 Hz Coil, 3 Uc Maximum Peak, -13 to 131 deg F Temperature, Screw Mount
Alternate Catalog Number LA4DA2E Application 3P LC1D80...D150;4P LC1D80004...D115004;4P LC1D40008...D80008 ARRA Compliant N Buy American Compliant N Catalog Number LA4DA2E Coil Voltage 24 to 48@50/60Hz V Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 3.74 Gross Volume per Pack Metric 61.29 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 22.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536308000 Height 5.0000 in Height [Metric] 5.0000 cm Item Group 22341 Length 4.1000 in Length [Metric] 4.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=608680&lang=en-us Mounting BY SCREWS Operating Temperature -25-55 A°C Returnable Y Series LA4D Specifications 24 to 48 VAC at 50/60 Hz Coil, 3 Uc Maximum Peak, -13 to 131 deg F Temperature, Screw Mount Sub Brand TESYS,TESYS D Type RC Circuit UNSPSC 39121529 UPC 11 78590125999 UPC 12 785901259992 Warranty Description Contractual Warranty:18 months Width 2.7000 in Width [Metric] 2.7000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Suitable For Use With TeSys™ D LC1D80 to LC1D150, LC1D80004 to D115004, LC1D40008 to D80008 Contactor 3P LC1D80...D150;4P LC1D80004...D115004;4P LC1D40008...D80008 RC CIRCUIT Limitation of transient voltage to 300% of nominal voltage maximum Oscillating frequency limited to 400 Hz maximum, slight increase in drop out time (1.2 to 2 times normal)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LA4DA2E |
| Application | 3P LC1D80...D150;4P LC1D80004...D115004;4P LC1D40008...D80008 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LA4DA2E |
| Coil Voltage | 24 to 48@50/60Hz V |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 3.74 |
| Gross Volume per Pack Metric | 61.29 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 22.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 5.0000 in |
| Height [Metric] | 5.0000 cm |
| Item Group | 22341 |
| Length | 4.1000 in |
| Length [Metric] | 4.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=608680&lang=en-us |
| Mounting | BY SCREWS |
| Operating Temperature | -25-55 A°C |
| Returnable | Y |
| Series | LA4D |
| Specifications | 24 to 48 VAC at 50/60 Hz Coil, 3 Uc Maximum Peak, -13 to 131 deg F Temperature, Screw Mount |
| Sub Brand | TESYS,TESYS D |
| Type | RC Circuit |
| UNSPSC | 39121529 |
| UPC 11 | 78590125999 |
| UPC 12 | 785901259992 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.7000 in |
| Width [Metric] | 2.7000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Suitable For Use With | TeSys™ D LC1D80 to LC1D150, LC1D80004 to D115004, LC1D40008 to D80008 Contactor |
| 3P LC1D80...D150;4P LC1D80004...D115004;4P LC1D40008...D80008 |
| RC CIRCUIT |
| Limitation of transient voltage to 300% of nominal voltage maximum |
| Oscillating frequency limited to 400 Hz maximum, slight increase in drop out time (1.2 to 2 times normal) |
