O-Z/Gedney

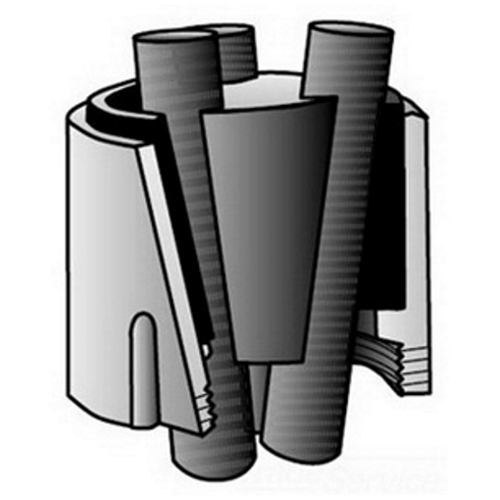

O-Z/Gedney S-4000-2 1-Piece Cable Support With Pozi-Grip S-Style Wedging Plug, 4 in, Vertical Mount
Custom_Product_Images_Illustration
O-Z/Gedney
O-Z/Gedney S-4000-2 1-Piece Cable Support With Pozi-Grip S-Style Wedging Plug, 4 in, Vertical Mount
SKU287971
MFGR #S40002
Your Cost: $809.03/ea
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. Threaded and threadless, insulated or uninsulated noninsulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. Threaded and threadless, insulated or uninsulated noninsulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
Application For Rigid Conduit, IMC And EMT Conduit With POZI-Grip S-style Wedging Plug ARRA Compliant Y Buy American Compliant Y Catalog Number S40002 Country of Origin US Currency USD Dimensions 5.63 in Dia x 3.88 in H EU RoHS Indicator N Finish Hot Dipped Galvanized Gross Weight Per Pack 5.6800 lb Gross Weight per Pack Metric 2.58 Gross Weight UOM Metric kg Height 0.42 in Height [Metric] 1.0734 cm Length 26.80 in Length [Metric] 68.0720 cm Series S Series Standard Third Party Certification: UL File Number E-11853, CSA 11584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, NEC 300-19 Standards ARRA CompliantBuy American Act CompliantUL 514B File No. E11853CSA 011584CSA C22.2 No. 18.3 Suitable For Use With EMT/IMC and Rigid Conduit Type Type S Threaded Cable Support UNSPSC 39121311 UPC 11 78312602267 UPC 12 783126022674 Width 15.20 in Width [Metric] 38.6080 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Material Body Of Fitting: Malleable Or Ductile Iron Mounting Type Surface Size 4 in For Rigid Conduit, IMC And EMT Conduit With POZI-Grip S-style Wedging Plug Any number of different size wires (5) or more same size wires; Supports non-armored electrical cables in vertical conduit risers; For threadless rigid conduit, threadless IMC or EMT the body can be attached to the male threads of a set-screw or compression connector; For PVC conduit, use a PVC terminal adapter; If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug grounding lug should be mounted on cable support body; Use with all types of insulations at voltages to and including 600 V; Fastest and easiest type cable support to install; The knurled insulating inner surface and one piece impregnated hardwood pOZi-grip plug provide positive support well in excess of code requirements For supporting non-armored electrical cables in vertical conduit risers Threaded for Rigid Conduit and IMC Use with all types of insulations at voltages to and including 600 Volt The fastest and easiest type cable support to install The knurled insulating inner surface and one-piece impregnated hardwood pOZi-grip plug provide positive support well in excess of code requirements Body Only can be ordered separately, for installation prior to wire pulling, Plug Only can be ordered later, once wires are in place If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug grounding lug should be mounted on cable support body For Threadless Rigid Conduit, Threadless IMC, or EMT, the body can be attached to the male threads of a set screw or compression connector For PVC Conduit, use a PVC terminal adapter Tapered/Knurled body For two or more wires Type S
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Rigid Conduit, IMC And EMT Conduit With POZI-Grip S-style Wedging Plug |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | S40002 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.63 in Dia x 3.88 in H |
| EU RoHS Indicator | N |
| Finish | Hot Dipped Galvanized |
| Gross Weight Per Pack | 5.6800 lb |
| Gross Weight per Pack Metric | 2.58 |
| Gross Weight UOM Metric | kg |
| Height | 0.42 in |
| Height [Metric] | 1.0734 cm |
| Length | 26.80 in |
| Length [Metric] | 68.0720 cm |
| Series | S Series |
| Standard | Third Party Certification: UL File Number E-11853, CSA 11584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, NEC 300-19 |
| Standards | ARRA CompliantBuy American Act CompliantUL 514B File No. E11853CSA 011584CSA C22.2 No. 18.3 |
| Suitable For Use With | EMT/IMC and Rigid Conduit |
| Type | Type S Threaded Cable Support |
| UNSPSC | 39121311 |
| UPC 11 | 78312602267 |
| UPC 12 | 783126022674 |
| Width | 15.20 in |
| Width [Metric] | 38.6080 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Material | Body Of Fitting: Malleable Or Ductile Iron |
| Mounting Type | Surface |
| Size | 4 in |
| For Rigid Conduit, IMC And EMT Conduit With POZI-Grip S-style Wedging Plug |
| Any number of different size wires (5) or more same size wires; Supports non-armored electrical cables in vertical conduit risers; For threadless rigid conduit, threadless IMC or EMT the body can be attached to the male threads of a set-screw or compression connector; For PVC conduit, use a PVC terminal adapter; If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug grounding lug should be mounted on cable support body; Use with all types of insulations at voltages to and including 600 V; Fastest and easiest type cable support to install; The knurled insulating inner surface and one piece impregnated hardwood pOZi-grip plug provide positive support well in excess of code requirements |
| For supporting non-armored electrical cables in vertical conduit risers |
| Threaded for Rigid Conduit and IMC |
| Use with all types of insulations at voltages to and including 600 Volt |
| The fastest and easiest type cable support to install |
| The knurled insulating inner surface and one-piece impregnated hardwood pOZi-grip plug provide positive support well in excess of code requirements |
| Body Only can be ordered separately, for installation prior to wire pulling, Plug Only can be ordered later, once wires are in place |
| If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug grounding lug should be mounted on cable support body |
| For Threadless Rigid Conduit, Threadless IMC, or EMT, the body can be attached to the male threads of a set screw or compression connector |
| For PVC Conduit, use a PVC terminal adapter |
| Tapered/Knurled body |
| For two or more wires |
| Type S |
