Appleton™
EGS 4QSS450T 1/2 IN 45DEG LFMC INSU
Custom_Product_Images_Illustration
Appleton™
EGS 4QSS450T 1/2 IN 45DEG LFMC INSU
SKU1037439
MFGR #4QSS450T
$/ea

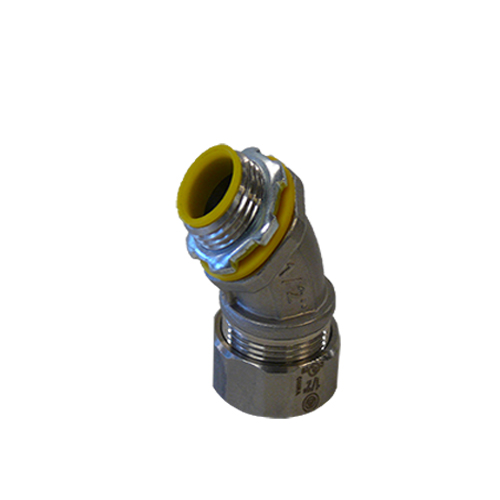

45 Degree Liquidtight Conduit Connector, Size: 1/2 IN, Connection: Tapered threaded male NPT hub., Material: 316 Grade Stainless Steel, Insulation: Insulated Throat, Standard: UL Standard: 514B, cULus Listed: E11853, CSA Standard: C22.2 No.18.3
45 Degree Liquidtight Conduit Connector, Size: 1/2 IN, Connection: Tapered threaded male NPT hub., Material: 316 Grade Stainless Steel, Insulation: Insulated Throat, Standard: UL Standard: 514B, cULus Listed: E11853, CSA Standard: C22.2 No.18.3
ARRA Compliant N Buy American Compliant N Catalog Number 4QSS450T Color Metallic Connection Tapered threaded male NPT hub. Country of Origin CN Currency USD Dimensions 2.51 in L x 1.28 in W x 1.5 in H Environmental Conditions Liquidtight, Raintight, Oiltight EU RoHS Indicator C Gross Weight Per Pack 22.6600 lb Gross Weight per Pack Metric 10.28 Gross Weight UOM Metric kg Height 2.51 in Height [Metric] 6.3754 cm Insulation Insulated Throat Length 1.50 in Length [Metric] 3.8100 cm NEMA Rating NEMA FB-1, NEMA Type 4 Series 4QSS Size 1/2 IN in Standard UL Standard: 514B, cULus Listed: E11853, CSA Standard: C22.2 No.18.3 Sub Brand ETP Type Insulated Throat UNSPSC 39121420 UPC 11 68785500009 UPC 12 68785500009 Width 1.28 in Width [Metric] 3.2512 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle 45 ° Finish Natural Material 316 Stainless Steel Trade Size 1/2 in Used in applications where conditions of installation, operation or maintenance require flexibility or protection from liquids, vapors or solids such as: machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and Class I, Division 2 wiring. Reusable ferrule. Long ferrule prevents pullout and tight bend conduit pop-out. Furnished with Locknut and sealing ring.
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 4QSS450T |
| Color | Metallic |
| Connection | Tapered threaded male NPT hub. |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 2.51 in L x 1.28 in W x 1.5 in H |
| Environmental Conditions | Liquidtight, Raintight, Oiltight |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 22.6600 lb |
| Gross Weight per Pack Metric | 10.28 |
| Gross Weight UOM Metric | kg |
| Height | 2.51 in |
| Height [Metric] | 6.3754 cm |
| Insulation | Insulated Throat |
| Length | 1.50 in |
| Length [Metric] | 3.8100 cm |
| NEMA Rating | NEMA FB-1, NEMA Type 4 |
| Series | 4QSS |
| Size | 1/2 IN in |
| Standard | UL Standard: 514B, cULus Listed: E11853, CSA Standard: C22.2 No.18.3 |
| Sub Brand | ETP |
| Type | Insulated Throat |
| UNSPSC | 39121420 |
| UPC 11 | 68785500009 |
| UPC 12 | 68785500009 |
| Width | 1.28 in |
| Width [Metric] | 3.2512 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | 45 ° |
| Finish | Natural |
| Material | 316 Stainless Steel |
| Trade Size | 1/2 in |
| Used in applications where conditions of installation, operation or maintenance require flexibility or protection from liquids, vapors or solids such as: machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and Class I, Division 2 wiring. |
| Reusable ferrule. Long ferrule prevents pullout and tight bend conduit pop-out. Furnished with Locknut and sealing ring. |
