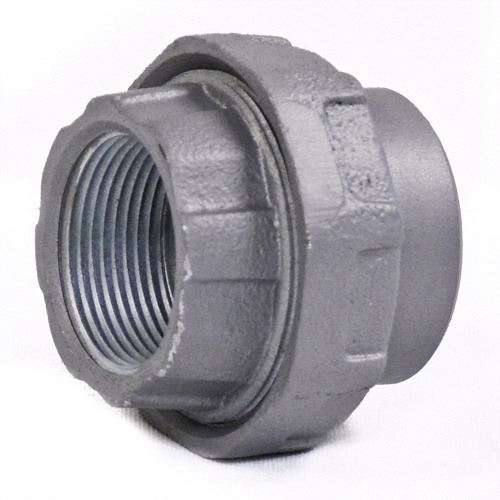

Appleton® UNF300R Unilet® UNF Non-Expansion Explosionproof Conduit Union, 3 in, Malleable Iron, Tri-Coated
Explosion Proof Conduit Unions
85032
MFG #: UNF300R
Appleton™
205.52000
/ ea
- Application: For Connecting Conduit To Conduit
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: UNF300R
- Connection: Female Threaded
- Country of Origin: MX
- Currency: USD
- Dimensions: 5.38 in OD x 3.38 in L
- EU RoHS Indicator: N
- Flexibility: Rigid And IMC
- Gross Weight Per Pack: 7.6800 lb
- Gross Weight per Pack Metric: 3.48
- Gross Weight UOM Metric: kg
- Height: 4.10 in
- Height [Metric]: 10.4140 cm
- Length: 5.00 in
- Length [Metric]: 12.7000 cm
- Outside Diameter: 5.38 in
- Series: UNF
- Standard: UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups B, C, d; Class II, Groups E, F, G; and Class II, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified
- Standards: UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181
- Sub Brand: UNILETS
- Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
- Trade Size: 3 in
- Type: Dust-Ignitionproof Explosionproof
- UNSPSC: 39131707
- UPC 11: 78138169475
- UPC 12: 781381694759
- Width: 4.80 in
- Width [Metric]: 12.1920 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Finish: Triple Coated
- Material: Malleable Iron
- Size: 3 in
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_781381694209_Spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381694209_Spec.pdf(Spec Sheet URL)
- Warranty 1 URL - IDW_DOCUMENT_394198b4aaf803df72139e38be4252da7a6a8322a617e93e5515a2645327d9ad.pdf(Warranty 1 URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
For Connecting Conduit To Conduit |
Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNF unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
Explosion proof, dust-ignition proof |
Smooth, rounded integral bushing in each hub protects conductor insulation |
Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
Concretetight |
Female x female connection |
Triple-Coated(Zinc Electroplated/Chromate/Epoxy Powder Coated) |
