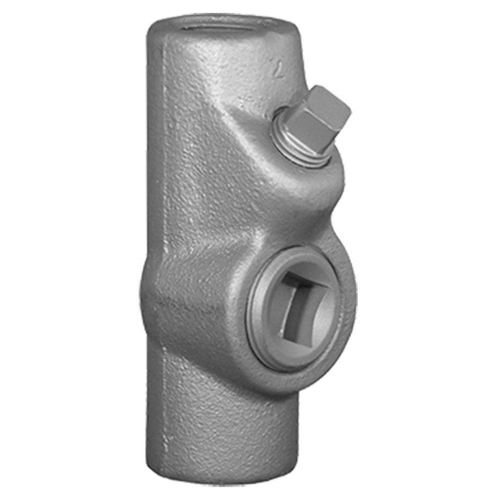

Appleton® EYF-100 Unilet® EY Series Explosionproof Conduit Sealing Fitting, 1 in, For Use With IMC/Threaded Rigid Metal Conduit
Explosion Proof Conduit Sealing Fittings
16755
MFG #: EYF-100
Appleton™
30.38000
/ ea
- Application: For Use With Threaded Rigid Metal Conduit And IMC
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: EYF-100
- Connection: Female Threaded
- Country of Origin: MX
- Currency: USD
- Dimensions: 4-1/4 in L x 1-3/4 in W
- EU RoHS Indicator: C
- Gross Weight Per Pack: 1.3300 lb
- Gross Weight per Pack Metric: 0.60
- Gross Weight UOM Metric: kg
- Height: 0.66 in
- Height [Metric]: 16.7640 mm
- Length: 9.30 in
- Length [Metric]: 23.6220 cm
- Series: EY Series
- Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, D; Class II, Groups E, F, G; And Class III
- Standards: UL 886UL 1203 File No. E10444CSA C22.2 No. 30CSA 065181, Class I, Groups A, B, C, D, Class II, Groups E, F, G, Class IIIRoHS Compliant
- Sub Brand: UNILETS
- Type: Dust-Ignitionproof Explosionproof Raintight
- UNSPSC: 39121311
- UPC 11: 78138113514
- UPC 12: 781381135146
- Width: 6.20 in
- Width [Metric]: 15.7480 cm
- Stock Status: NORMALLY STOCKED
- Brand: Appleton™
- Manufacturer: Appleton
- Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
- Material: Malleable Iron
- Size: 1 in
- Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
These sealing fittings minimizes the passage of gases and vapors and prevents the passage of flames from oneportion of a conduit system to another. they prevent pressure piling the within conduit system and contain any explosion that occurs. The EY series is a close radius type for sealing vertical or horizontal conduit runs.
- Applications
- Features
| For Use With Threaded Rigid Metal Conduit and IMC |
| For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Close radius type for sealing vertical or horizontal con |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Dust-ignition proof, raintight |
| Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub |
| Close radius type for sealing vertical or horizontal conduit runs |
| Restrict any explosion to the sealed off enclosure |
| Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures |
| Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps |
| Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location |
| Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure |
| Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in class I, Division 2locations |
| 1.38 in turning radius |
| Female threaded connection |
| 25% fill vertical and horizontal conduit sealing fittings for close turning radius |
| Triple-Coat (Zinc Electroplate, Chromate And epoxy Powder Coat) finish |
