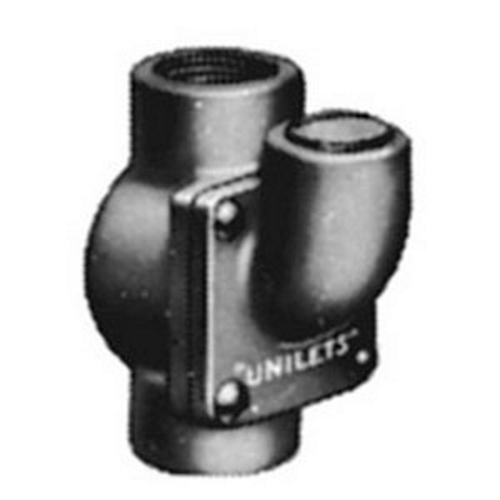

Appleton® ESUF75 UNILETS™ ESU Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 3/4 in, Malleable Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton® ESUF75 UNILETS™ ESU Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 3/4 in, Malleable Iron, Tri-Coated
SKU17226
MFGR #ESUF75
Your Cost: $77.07/ea
These sealing fittings minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs. The ESU Series provides a pouring spout that rotates 90 deg for sealing vertical or horizontal conduit.
These sealing fittings minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs. The ESU Series provides a pouring spout that rotates 90 deg for sealing vertical or horizontal conduit.
Application For Use With Threaded Rigid Metal Conduit and IMC ARRA Compliant N Buy American Compliant N Catalog Number ESUF75 Connection Tapered FNPT Country of Origin MX Currency USD Dimensions 3.13 in L x 2.94 in W EU RoHS Indicator C Gross Weight Per Pack 1.2300 lb Gross Weight per Pack Metric 0.56 Gross Weight UOM Metric kg Height 0.34 in Height [Metric] 8.7376 mm Length 12.60 in Length [Metric] 32.0040 cm Mounting Type Surface Series ESU Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181 Standards Class I, Division 1, 2, Groups C, D, Class II, Division 1, 2, Groups E, F, G, Class III, UL 886, 1203, File No. E10444 Listed, CSA C22.2 No.30, 065181 Certified Sub Brand UNILETS Type Dust-Ignitionproof Explosionproof UNSPSC 39121311 UPC 11 78138130640 UPC 12 781381306409 Width 10.60 in Width [Metric] 26.9240 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Material Malleable Iron Size 3/4 in Suitable For Use With IMC/Threaded Rigid Metal Conduit For Use With Threaded Rigid Metal Conduit and IMC For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub For sealing vertical or horizontal conduit Pouring spout rotates 90 deg Removable cover provides full access for damming 1/2 to 1 in sizes have threaded cover openings for damming 1-1/4 in turning radius Triple coat of zinc electroplate, chromate and epoxy powder coated finish Prevent passage of gases, vapors or flames from one portion of conduit system to another Restrict any explosion to the sealed off enclosure Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit Seal must be located within 18 in of either enclosure Seal must be located within 18 in of either enclosure Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ESUF75 |
| Connection | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3.13 in L x 2.94 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.2300 lb |
| Gross Weight per Pack Metric | 0.56 |
| Gross Weight UOM Metric | kg |
| Height | 0.34 in |
| Height [Metric] | 8.7376 mm |
| Length | 12.60 in |
| Length [Metric] | 32.0040 cm |
| Mounting Type | Surface |
| Series | ESU |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181 |
| Standards | Class I, Division 1, 2, Groups C, D, Class II, Division 1, 2, Groups E, F, G, Class III, UL 886, 1203, File No. E10444 Listed, CSA C22.2 No.30, 065181 Certified |
| Sub Brand | UNILETS |
| Type | Dust-Ignitionproof Explosionproof |
| UNSPSC | 39121311 |
| UPC 11 | 78138130640 |
| UPC 12 | 781381306409 |
| Width | 10.60 in |
| Width [Metric] | 26.9240 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Material | Malleable Iron |
| Size | 3/4 in |
| Suitable For Use With | IMC/Threaded Rigid Metal Conduit |
| For Use With Threaded Rigid Metal Conduit and IMC |
| For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub |
| For sealing vertical or horizontal conduit |
| Pouring spout rotates 90 deg |
| Removable cover provides full access for damming 1/2 to 1 in sizes have threaded cover openings for damming |
| 1-1/4 in turning radius |
| Triple coat of zinc electroplate, chromate and epoxy powder coated finish |
| Prevent passage of gases, vapors or flames from one portion of conduit system to another |
| Restrict any explosion to the sealed off enclosure |
| Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures |
| Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps |
| Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location |
| Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit |
| Seal must be located within 18 in of either enclosure |
| Seal must be located within 18 in of either enclosure |
| Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations |
