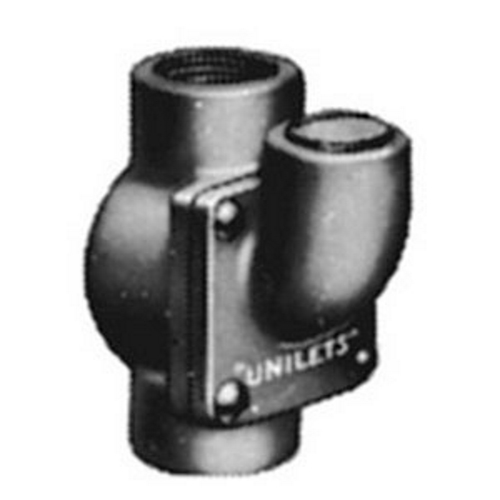

Appleton® ESUF-100 UNILETS™ ESU Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 1 in, Malleable Iron, Tri-Coated
Explosion Proof Conduit Sealing Fittings
17227
MFG #: ESUF-100
Appleton™
58.42000
/ ea
- Application: For Use With Threaded Rigid Metal Conduit And IMC
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: ESUF-100
- Connection: Tapered FNPT
- Country of Origin: MX
- Currency: USD
- Dimensions: 3.38 in L x 3.25 in W
- EU RoHS Indicator: C
- Gross Weight Per Pack: 1.5500 lb
- Gross Weight per Pack Metric: 0.70
- Gross Weight UOM Metric: kg
- Height: 0.34 in
- Height [Metric]: 8.6360 mm
- Length: 12.50 in
- Length [Metric]: 31.7500 cm
- Mounting Type: Surface
- Series: ESU
- Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
- Standards: Class I, Div 1, 2, Groups C, DClass II, Div 1, 2, Groups E, F, GClass IIIUL 886/1203UL File No. E10444CSA C22.2 No.30, 065181
- Sub Brand: UNILETS
- Type: Dust-Ignitionproof Explosionproof
- UNSPSC: 39121311
- UPC 11: 78138130645
- UPC 12: 781381306454
- Width: 9.50 in
- Width [Metric]: 24.1300 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
- Material: Malleable Iron
- Size: 1 in
- Suitable For Use With: IMC/Threaded Rigid Metal Conduit
These sealing fittings minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs. The ESU Series provides a pouring spout that rotates 90 deg for sealing vertical or horizontal conduit.
- Catalog URL - Appleton_ESUF_100_Catalog.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_AEC_MC007_ESU_25percent_Fill_Vertical-Horiz_Conduit_Sealing_Fittings.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_ESU_25percent_Fill_Vertical-Horiz_Conduit_Sealing_Fittings.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Threaded Rigid Metal Conduit and IMC |
| For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub |
| For sealing vertical or horizontal conduit |
| Pouring spout rotates 90 deg |
| Removable cover provides full access for damming 1/2 to 1 in sizes have threaded cover openings for damming |
| 1-1/4 in turning radius |
| Triple coat of zinc electroplate, chromate and epoxy powder coated finish |
| Prevent passage of gases, vapors or flames from one portion of conduit system to another |
| Restrict any explosion to the sealed off enclosure |
| Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures |
| Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps |
| Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location |
| Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit |
| Seal must be located within 18 in of either enclosure |
| Seal must be located within 18 in of either enclosure |
| Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations |
