Appleton® EC-500 EC Series Three-Piece Union, 5 in, 90 deg, Malleable Iron
Conduit Unions
17075
MFG #: EC500
Appleton™
1304.59000
/ ea
- Application: For Connecting Threaded Rigid Conduit And IMC
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: EC500
- Connection: Female Threaded
- Country of Origin: MX
- Currency: USD
- Dimensions: 6-7/8 in OD x 3 in L
- EU RoHS Indicator: C
- Flexibility: Rigid And IMC
- Gross Weight Per Pack: 7.9000 lb
- Gross Weight per Pack Metric: 3.58
- Gross Weight UOM Metric: kg
- Height: 4.80 in
- Height [Metric]: 12.1920 cm
- Length: 7.00 in
- Length [Metric]: 17.7800 cm
- Outside Diameter: 6.875 in
- Series: EC Series
- Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178 Certified, NEMA FB-1
- Standards: RoHS CompliantCSA C22.2 No. 18.3CSA 065178NEMA FB-1UL 514B File No. E14814
- Suitable For Use With: IMC/Rigid Conduit
- Trade Size: 5 in
- Type: 3-Piece Concretetight
- UNSPSC: 39131707
- UPC 11: 78138124820
- UPC 12: 781381248204
- Width: 7.00 in
- Width [Metric]: 17.7800 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Angle: 90 °
- Material: Malleable Iron
- Size: 5 in
We offer a complete line of connectors and couplings for steel EMT conduit. Fittings are available in both steel and zinc, using either a compression or set-screw design. UL Listed raintight steel compression connectors and couplings are also available, along with flexible fittings straps, clamps, benders and other parts and accessories needed to complete any EMT installation.
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Spec Sheet URL - 11043_04CBG68K1PWQFZXV.pdf(Spec Sheet URL)

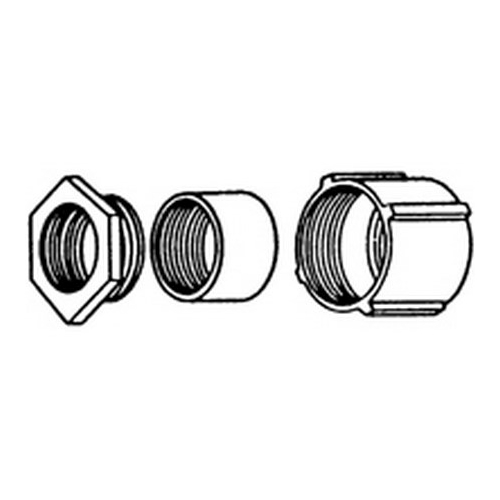

- Line Drawing URL - 11043_EC-100LINE.jpg(Line Drawing URL)
- Line Drawing URL - EC-100LINE.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Spec Sheet URL - SPE_781381247801_Spec.pdf(Spec Sheet URL)
- Applications
- Features
| For Connecting Threaded Rigid Conduit And IMC |
| Three piece union couples two lengths of conduit when neither can be turned |
| Three piece union couples two lengths of conduit when neither can be turned |
| Female threaded |
| Gasketed pulling elbows provides a compact wire pulling point |
| Elbows provide a 90 deg change of direction in a conduit run |
| Concretetight |
