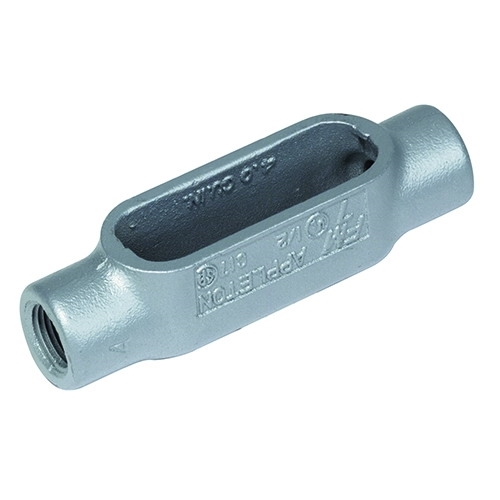

Appleton® FM7™ Unilet® C27 Type C Conduit Outlet Body, 3/4 in Hub, 7, 7 cu-in, Grayloy Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton® FM7™ Unilet® C27 Type C Conduit Outlet Body, 3/4 in Hub, 7, 7 cu-in, Grayloy Iron, Tri-Coated
SKU17676
MFGR #C27
Your Cost: $21.18/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant Y Buy American Compliant C Catalog Number C27 Color Gray Connection Tapered Female Threaded in Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 1.3650 lb Gross Weight per Pack Metric 0.61 Gross Weight UOM Metric kg Height 0.82 in Height [Metric] 20.8280 mm Length 7.70 in Length [Metric] 19.5580 cm Standard UL E2969, CSA Standards UL 514A/514B/E2527, CSA C22.2 No. 18.3, CSA 065183 Sub Brand UNILETS Type Form 7 Conduit Body UNSPSC 39131708 UPC 11 78138150648 UPC 12 781381506489 Width 5.10 in Width [Metric] 12.9540 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 7 Hub Size 0.75 in Material Malleable Iron For Use With Rigid Steel, Rigid Aluminum Conduit And IMC BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires. Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 7™ bodies, gaskets and covers Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub openings allow easy conduit joining Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Triple coated (zinc electroplated, chromate and epoxy powder coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | C |
| Catalog Number | C27 |
| Color | Gray |
| Connection | Tapered Female Threaded in |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.3650 lb |
| Gross Weight per Pack Metric | 0.61 |
| Gross Weight UOM Metric | kg |
| Height | 0.82 in |
| Height [Metric] | 20.8280 mm |
| Length | 7.70 in |
| Length [Metric] | 19.5580 cm |
| Standard | UL E2969, CSA |
| Standards | UL 514A/514B/E2527, CSA C22.2 No. 18.3, CSA 065183 |
| Sub Brand | UNILETS |
| Type | Form 7 Conduit Body |
| UNSPSC | 39131708 |
| UPC 11 | 78138150648 |
| UPC 12 | 781381506489 |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 7 |
| Hub Size | 0.75 in |
| Material | Malleable Iron |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires. |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 7™ bodies, gaskets and covers |
| Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub openings allow easy conduit joining |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Triple coated (zinc electroplated, chromate and epoxy powder coated) |
