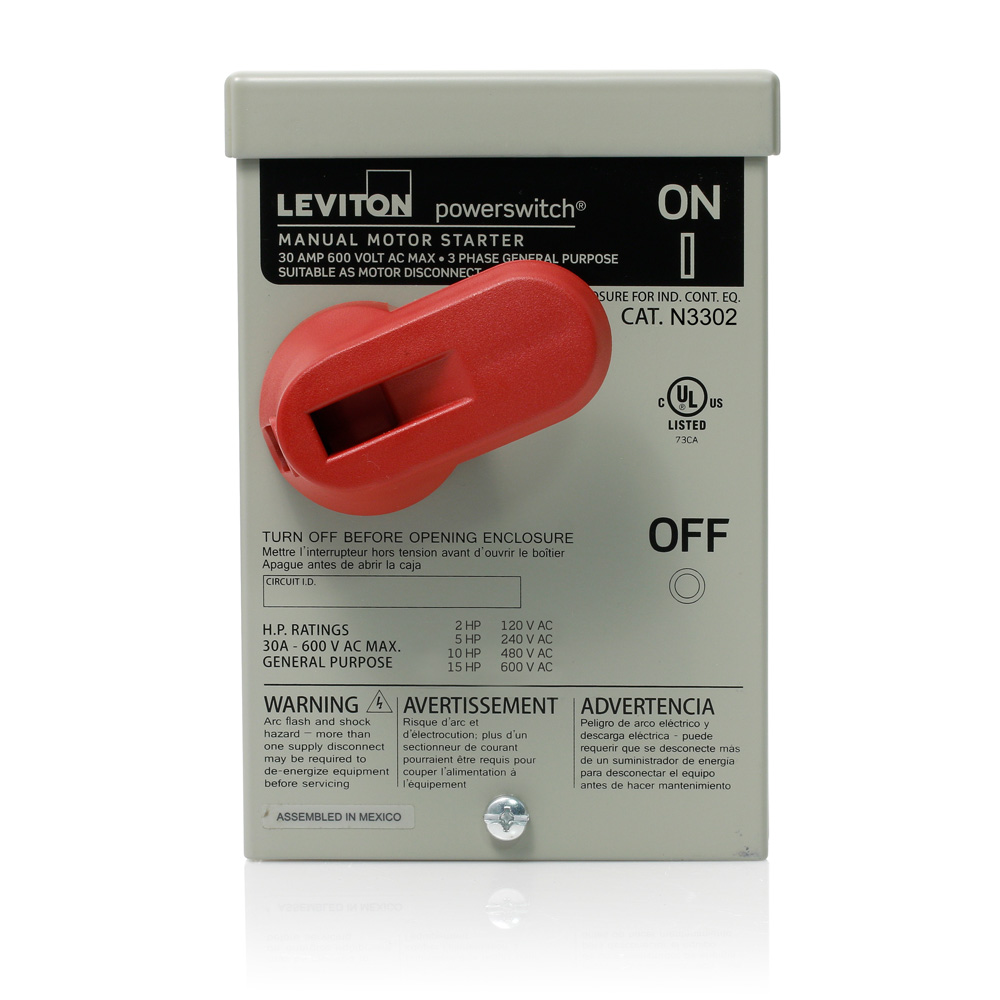

Powerswitch® N3302-DS AC Manual Motor Starter Switch, 600 VAC, 30 A, 15 hp
Toggle Disconnects
709544
MFG #: N3302-DS
Leviton®
112.89000
/ ea
- Action: DPST
- Actuator: Toggle
- Actuator Type: Pistol Grip Toggle
- Application: Commercial
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: N3302-DS
- Color: Gray
- Connection: Back Wired;Side Wired
- Country of Origin: MX
- Currency: USD
- Depth: 5.42 in
- Dimensions: 6.15 in H x 4.26 in W x 5.42 in D
- Enclosure: PBT Polyester
- Enclosure Type: NEMA 3R
- Environmental Conditions: Flammability (Rated V-0 per UL94)
- EU RoHS Indicator: C
- Gross Weight Per Pack: 3.5400 lb
- Gross Weight per Pack Metric: 1.56
- Height: 5.88 in
- Length: 6.56 in
- Material: Polyester
- Operating Temperature: -40 to +60 °C
- Size: 6.15 H x 4.26 W x 5.42 D in
- Standard: NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969)
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73cUL per CSA C22.2 No. 111 (File E63969) CertifiedNOM-ANCE CertifiedUL 60947-4-1 Supersedes UL 508UL94 V-0 Flammability Rating
- Sub Brand: Powerswitch
- Switch Type: Toggle
- Temperature Rating: -40 to 60 °C
- Terminal Type: Back/Side Wired Screw
- Type: Enclosure with Double-Pole AC Motor Starter Switch
- UNSPSC: 39122211
- UPC 11: 07847737440
- UPC 12: 078477374405
- Width: 4.66 in
- Stock Status: NONSTOCK
- Brand: Leviton®
- Manufacturer: Leviton Manufacturing Co., Inc.
- Amperage Rating: 30 A
- Contact Form: DPST
- Horsepower: 15 hp
- Voltage Rating: 600 VAC
- Number Of Poles: 2
Levitons Industrial Grade AC Manual Motor Starter Switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
- Catalog URL - Powerswitch_MS302_DS_Catalog.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Owners Manual URL - Powerswitch_N1302_DS_Manual.pdf(Owners Manual URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=N3302-DS§ion=40132&minisite=10251(Spec Sheet URL)
- Applications
- Features
| Commercial |
| All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing |
| Positive-contact design and cam-driven mechanism enhances fast-make/slow-break |
| Silver-alloy contacts for maximum conductivity and service life |
| Multiple termination design accepts back and side wiring, terminal clamps or ring terminals |
| Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal (sold separately) |
| Oversized #10 triple-drive terminal screws provide greater torque and resist backing out from vibration |
| Insulating barrier between terminals provide isolation from each phase |
| Nickel-plated brass mounting strap for superior corrosion resistance |
| Large toggle provides positive actuation, even with gloved hand |
| AC manual motor starting switch |
| Single phase |
| Metal gray enclosure |
| Nickel-plated brass 10-32 terminal screw |
| Suitable as motor disconnect |
| 2 hp at 120 VAC, 5 hp at 240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC |
| Back and side wire connection |
| UL 94-V0 Flammability |
