Square D™

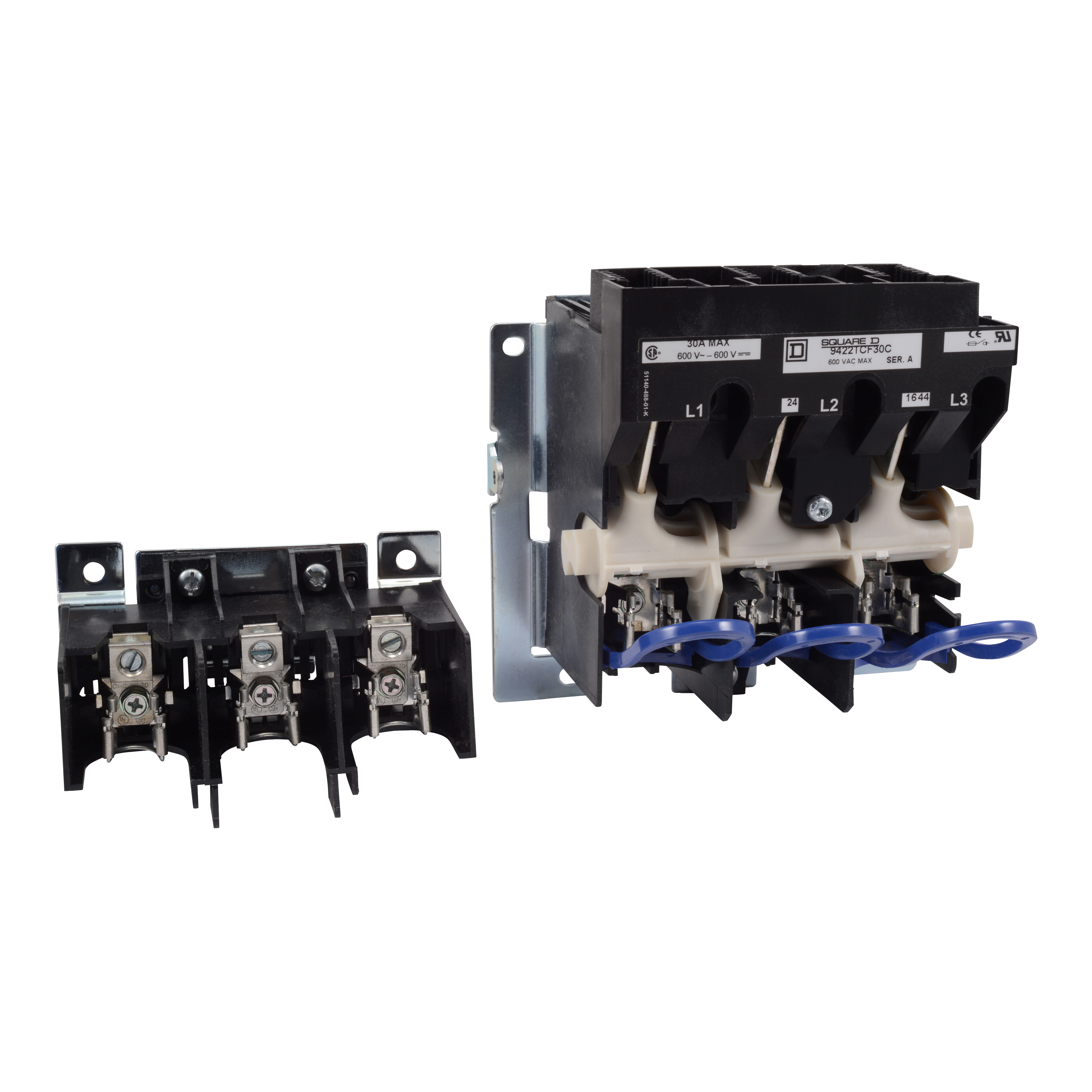

Schneider Electric 9422TCF30C Fusible Variable Depth Disconnect Switch, 600 VAC, 30 A
Custom_Product_Images_Illustration
Square D™
Schneider Electric 9422TCF30C Fusible Variable Depth Disconnect Switch, 600 VAC, 30 A
SKUPDW~6447200
MFGR #9422TCF30C
Your Cost: $513.76/ea
Schneider Electric Disconnect Switch, Fusible Variable Depth, Series: 9422T, 600 VAC, 30 A, Flange/Panel Mounting
Schneider Electric Disconnect Switch, Fusible Variable Depth, Series: 9422T, 600 VAC, 30 A, Flange/Panel Mounting
Alternate Catalog Number 9422TCF30C Application 7.5 HP 200 V AC-7.5 HP 230 V AC-15 HP 460 V AC-20 HP 575 V AC-5 HP 250 V DC ARRA Compliant N Buy American Compliant N Catalog Number 9422TCF30C Country of Origin MX Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.0295 lb Gross Weight per Pack Metric 2.95 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 15.3000 in Height [Metric] 48.3870 cm Item Group 21732 Length 38.2000 in Length [Metric] 122.9030 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565885&lang=en-us Mounting FLANGE CABLE VARIABLE DEPTH Mounting Type Flange/Panel Returnable N Series 9422T Standard UL RECOGNIZED-CSA Type Fusible Variable Depth UNSPSC 39122233 UPC 11 78590186693 UPC 12 785901866930 Warranty Description Contractual Warranty:18 months Width 25.4000 in Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Voltage Rating 600 7.5 HP 200 V AC-7.5 HP 230 V AC-15 HP 460 V AC-20 HP 575 V AC-5 HP 250 V DC 15 hp at 460 VAC, 20 hp at 575 VAC, 5 hp at 250 VDC, 7-1/2 hp at 230 VAC, 7-1/2 hp at 200 VAC power rating One common switch profile for 30 to 100 A switches Interchangeable fuse clips 30 to 60 A and the ability to add fuse clip kits and cable mechanisms for flexibility Also designed for variable depth, flange mounting applications with 200 to 400 A switches Fully compatible with the 9422 handle operators and 9423 door closing mechanisms for a wide range of applications Right or left flange mounting except 400 A, which mounts only right A trim plate is provided with each kit to eliminate any mounting screws from being accessible from the front and also to provide attractive installation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9422TCF30C |
| Application | 7.5 HP 200 V AC-7.5 HP 230 V AC-15 HP 460 V AC-20 HP 575 V AC-5 HP 250 V DC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9422TCF30C |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0295 lb |
| Gross Weight per Pack Metric | 2.95 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 15.3000 in |
| Height [Metric] | 48.3870 cm |
| Item Group | 21732 |
| Length | 38.2000 in |
| Length [Metric] | 122.9030 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565885&lang=en-us |
| Mounting | FLANGE CABLE VARIABLE DEPTH |
| Mounting Type | Flange/Panel |
| Returnable | N |
| Series | 9422T |
| Standard | UL RECOGNIZED-CSA |
| Type | Fusible Variable Depth |
| UNSPSC | 39122233 |
| UPC 11 | 78590186693 |
| UPC 12 | 785901866930 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 25.4000 in |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Voltage Rating | 600 |
| 7.5 HP 200 V AC-7.5 HP 230 V AC-15 HP 460 V AC-20 HP 575 V AC-5 HP 250 V DC |
| 15 hp at 460 VAC, 20 hp at 575 VAC, 5 hp at 250 VDC, 7-1/2 hp at 230 VAC, 7-1/2 hp at 200 VAC power rating |
| One common switch profile for 30 to 100 A switches |
| Interchangeable fuse clips 30 to 60 A and the ability to add fuse clip kits and cable mechanisms for flexibility |
| Also designed for variable depth, flange mounting applications with 200 to 400 A switches |
| Fully compatible with the 9422 handle operators and 9423 door closing mechanisms for a wide range of applications |
| Right or left flange mounting except 400 A, which mounts only right |
| A trim plate is provided with each kit to eliminate any mounting screws from being accessible from the front and also to provide attractive installation |
