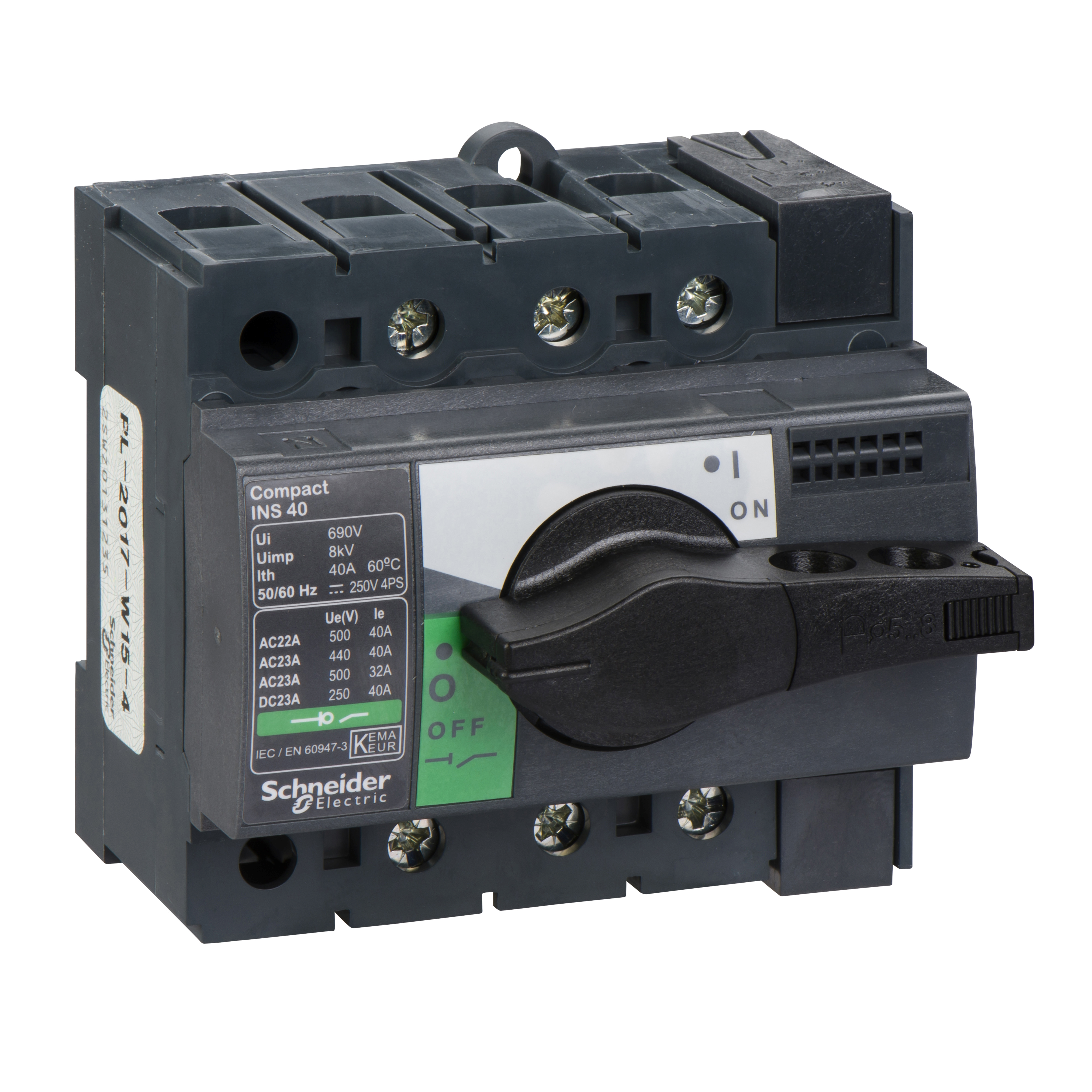

Schneider Electric 28900 Fixed Mount Non-Automatic Molded Case Disconnect Switch, 500 VAC/125 VDC, 40 A, 3 Poles
DC Rated Disconnects
PDW~6429660
MFG #: 28900
Square D™
0.00000
/ ea
- Actuator: Rotary handle
- Actuator Type: Rotary Handle
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 28900
- Country of Origin: FR
- Currency: USD
- Dimensions: 3.54 in W x 2.46 in D x 3.35 in H
- Enclosure Type: IP40/IK07
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Weight Per Pack: 0.7500 lb
- Gross Weight per Pack Metric: 0.34
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509025
- Height: 9.5000 in
- Interrupt Rating: 125 V DC-500 V AC 50/60 HZ
- Item Group: 01078
- Length: 9.5000 in
- Mounting Type: DIN Rail/Surface
- Operating Temperature: -25-70 A°C
- Returnable: N
- Short Circuit Current Rating: 15
- Standard: IEC 60947-1-IEC 60947-3,IK07 EN 50102,IP40 IEC 60529,KEMA-KEUR-CCC
- Sub Brand: COMPACT INS,COMPACT INS40,COMPACT INS40
- Temperature Rating: -13 to 158
- Type: Switch disconnector
- UNSPSC: 39121616
- UPC 11: 78590123669
- UPC 12: 785901236696
- Width: 9.5000 in
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 40
- Voltage Rating: 125 V DC-500 V AC 50/60 HZ
- Number Of Poles: 3
Schneider Electric Disconnect Switch, Fixed Mount Non-Automatic Molded Case, 500 VAC/125 VDC, 40 A, 50/60 Hz, 3 Pole, 15 kA Short Circuit, Rotary Handle Actuator, IP40/IK07, DIN Rail/Surface Mount, -13 to 158 deg F, 3.54 in W x 2.46 in D x 3.35 in H
- Features
| FIXED |
| 15 kA, 500 VAC, 50/60 Hz switch disconnector alone |
| 75 kA, 500 VAC, 50/60 Hz with upstream protection circuit breaker |
| Rotary handle |
| Black handle |
| DIN-rail mount |
| Front upside connection |
| 20000 cycles mechanical durability |
| 0.067 kA, 1.73 kA, 3 kA, 5.5 kA short time withstand current |
| 1500 cycles electrical durability |
| -50 to 85 deg C storage temperature |
| -50 to 85 deg C storage temperature |
