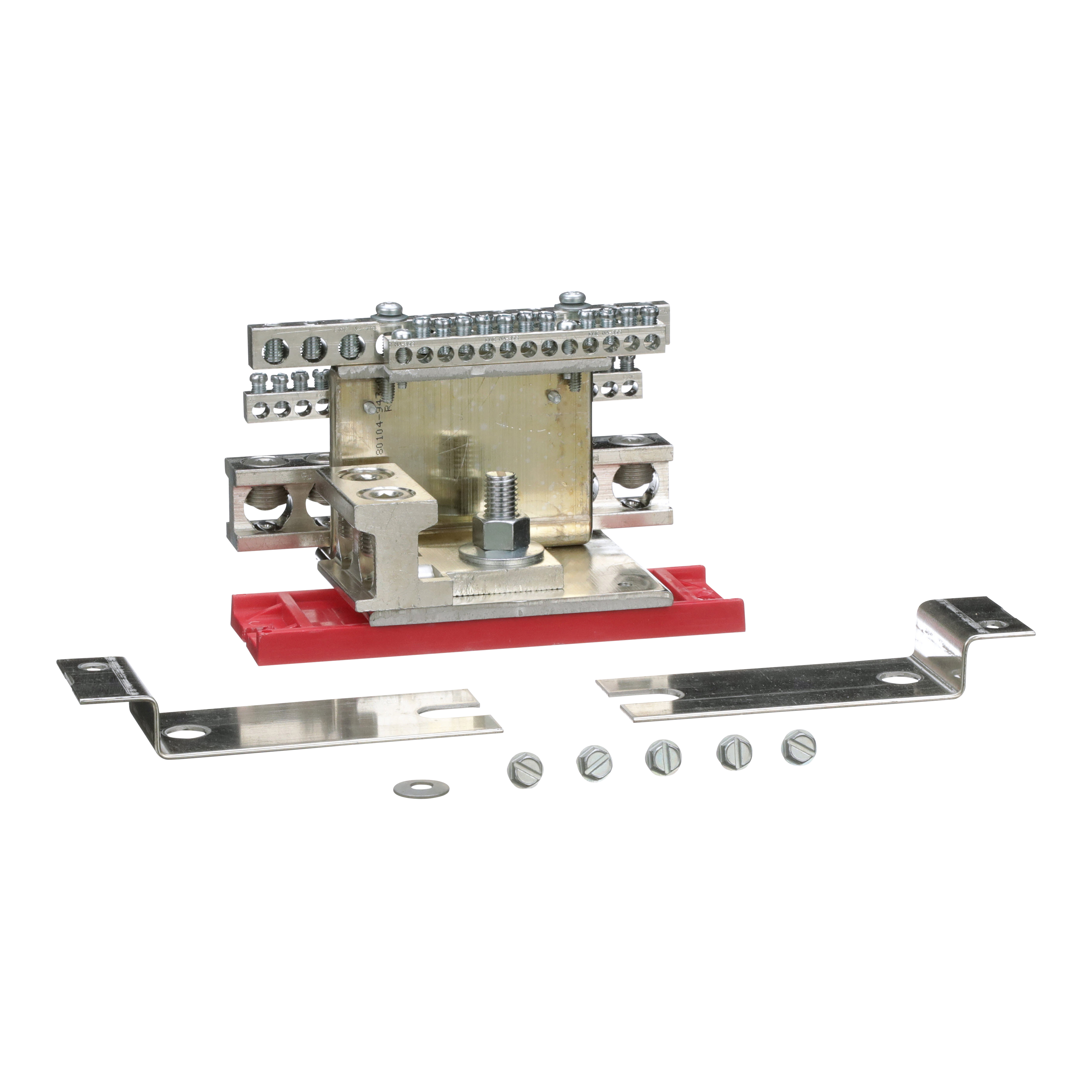

Square D™ I-Line™ HC6SN Panelboard Solid Neutral Assembly, 600 A, Aluminum
Panelboard Ground & Neutral Components
33605
MFG #: HC6SN
Square D™
464.00000
/ ea
- Alternate Catalog Number: HC6SN
- Amperage Rating: 600 A
- Application: HCN distribution board;HCM distribution board
- ARRA Compliant: N
- Buy American Compliant: N
- Cable Size: SEE TABLE
- Catalog Number: HC6SN
- Connection: MECHANICAL LUGS
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: Y
- Frequency Rating: 60 Hz
- Gross Volume Per Pack: 351.00
- Gross Volume per Pack Metric: 5751.84
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 3.0000 lb
- Gross Weight per Pack Metric: 1.36
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536698000
- Height: 4.95 in
- Height [Metric]: 12.7000 cm
- Item Group: 00014
- Length: 8.92 in
- Length [Metric]: 22.8600 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=445875&lang=en-us
- Mounting: DIRECT
- Operating Temperature: PER UL
- Phase: 3
- Returnable: Y
- Sub Brand: I-LINE
- Type: Electrical accessory;Solid neutral
- UNSPSC: 39121112
- UPC 11: 78590150602
- UPC 12: 785901506027
- Voltage Rating: 600//250 VAC//VDC
- Warranty Description: Contractual Warranty:18 months
- Width: 7.73 in
- Width [Metric]: 19.8120 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Material: Aluminum/Copper
- Specifications: 600 VAC/250 VDC, 600 A, Surface Mount, 3-Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug
- Suitable For Use With: I-Line™ Main Breaker, Main Lug Merchandised Panelboard
Square D HC6SN PANELBOARD SOLID NEUTRAL,3,60,600A,600VAC - 250VDC,AL/CU,I-Line,I-Line Panelboards,None,Panelboard Solid Neutral Assembly,direct,mechanical lugs,per UL,see table
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8074267360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_ISLGE185DNBPK07Y.pdf(Brochure URL)
- Brochure URL - 11003_Z0QH5B7CIXVJDUA9.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_HC3248B_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Schneider_Electric_HC2652B_Brochure.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 50e9a08049ad8bde8952bbddf38a017b8188e562.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_4S95IMVFE2K1H3LU.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_2XV5P174R6HGILUC.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_EYS2PKF5MJ3UNDIL.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_P6TWJXK7OB2GVRU0.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_5I0LA7PQ4BDSV1FY.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_8S3VUW9QYEHO2D4K.dwg(Tech Drawing URL)
- User Manual URL - 11003_NT9123B4FMQIHZ06.pdf(User Manual URL)
- User Manual URL - 11003_PS0HACFGM527JZXL.pdf(User Manual URL)
- Applications
- Features
| HCN distribution board;HCM distribution board |
| NONE |
