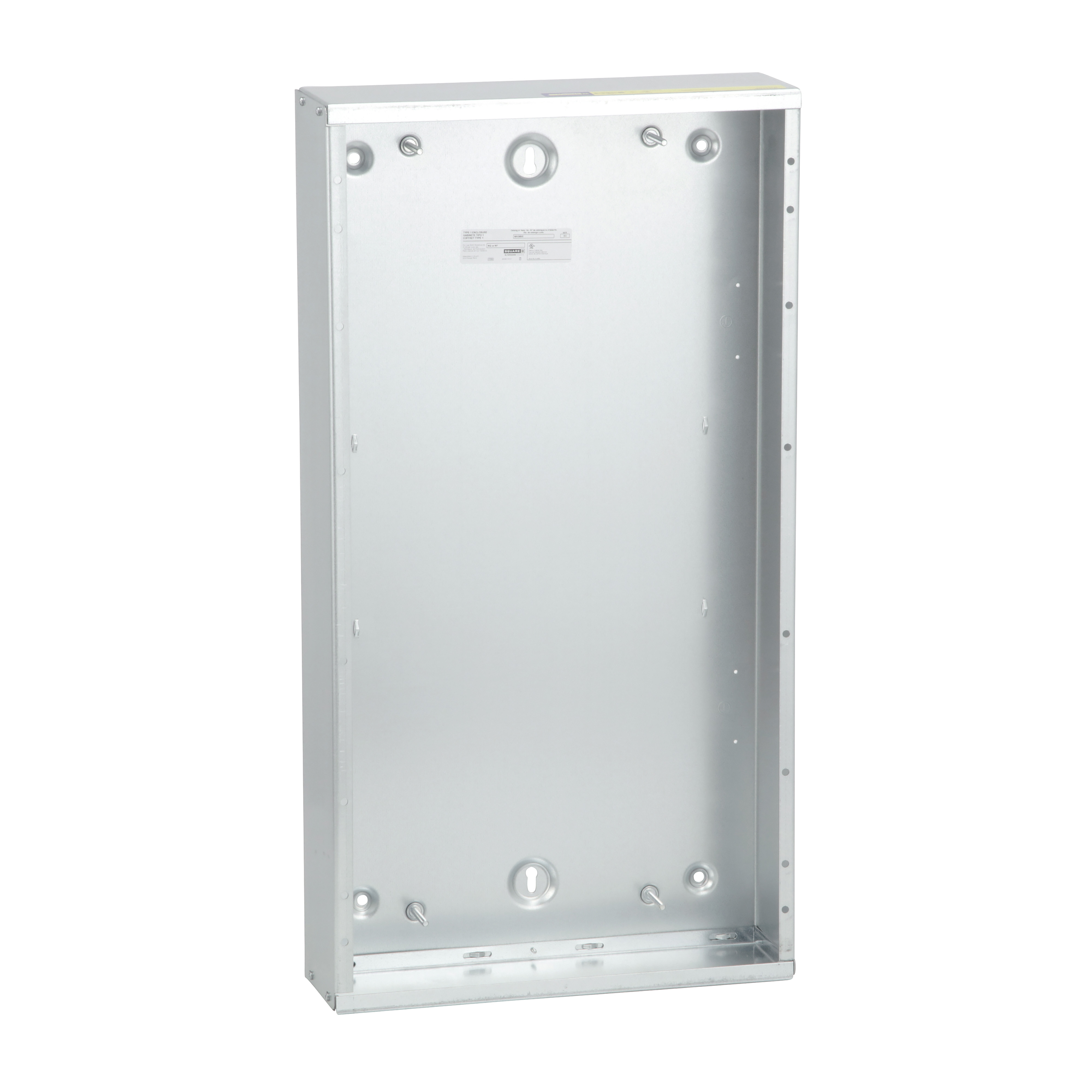

Square D™ MH38BE MH Series Blank End Wall Panelboard Enclosure, NEMA 1, 20 in W x 5-3/4 in D, Steel
Panelboard Enclosures
484435
MFG #: MH38BE
Square D™
113.00000
/ ea
- Alternate Catalog Number: MH38BE
- Application: PANELBOARD ENCLOSURE
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: MH38BE
- Country of Origin: US
- Currency: USD
- Enclosure: Steel
- EU RoHS Indicator: Y
- Finish: Galvanized
- Gross Volume Per Pack: 4560.00
- Gross Volume per Pack Metric: 74724.72
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 27.6500 lb
- Gross Weight per Pack Metric: 12.54
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8538100000
- Height: 5.94 in
- Height [Metric]: 15.2400 cm
- Item Group: 07969
- Length [Metric]: 96.5200 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446515&lang=en-us
- Mounting: SURFACE OR FLUSH
- Mounting Type: Flush
- Number Of Feeders: 18
- Phase: 3
- Returnable: Y
- Series: MH Series
- Size: 38 INCH (H) in
- Standard: UL 67
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 67REACHPROP65:Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Sub Brand: NQ / NF
- Substitute Product Catalog Number: N250MJ
- Type: Blank End Wall
- UNSPSC: 39121112
- UPC 11: 78590108267
- UPC 12: 785901082675
- Voltage Rating: 600 VAC
- Warranty Description: Contractual Warranty:18 months
- Width [Metric]: 50.8000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Square D™
- Manufacturer: Schneider Electric
- Depth: 5-3/4 in
- Length: 37.64 in
- Material: Steel
- NEMA Rating: NEMA 1
- Width: 19.81 in
Square D MH38BE PANELBOARD ENCLOSURE/BOX TYPE 1 38H 20W,38 inch (H),Blank endwalls - no knockouts,NEMA 1,NQ / NF,Panelboard Enclosure,Surface or Flush,UL 67
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8010293360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=MH38BE(3D Rendering URL)
- Brochure URL - 11003_CFRYTINWHZLV3Q5S.pdf(Brochure URL)
- Brochure URL - 11003_FTSEBPJYD1Z6QW28.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_9e3f618be279588d053b6dbc2aa3f33eeaaf88dee33c1605a0f6b233c7cb68c1.txt(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - dfdb127e4b1b1bcbdf9d74527790eb2e83e4253a.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_W405MTQD91NUXV7Z.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=80043-741-03(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_CGJQ1TZLSFIK74AE.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_S0PV1F2BGICXTLE3.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_TU97KJAEYNGBL0HW.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_73THR10JU9GLMKN8.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=80116-395-5x.dwg(Tech Drawing URL)
- User Manual URL(User Manual URL)
- User Manual URL - 11003_4OPHZUT6J8L1YG7E.pdf(User Manual URL)
- Applications
- Features
| PANELBOARD ENCLOSURE |
| BLANK ENDWALLS - NO KNOCKOUTS |
| 38 in H |
| 250 A line current rating |
| 3-phase |
| 4-wire configuration |
| No knockouts |
| For NQ/NF series panelboards |
