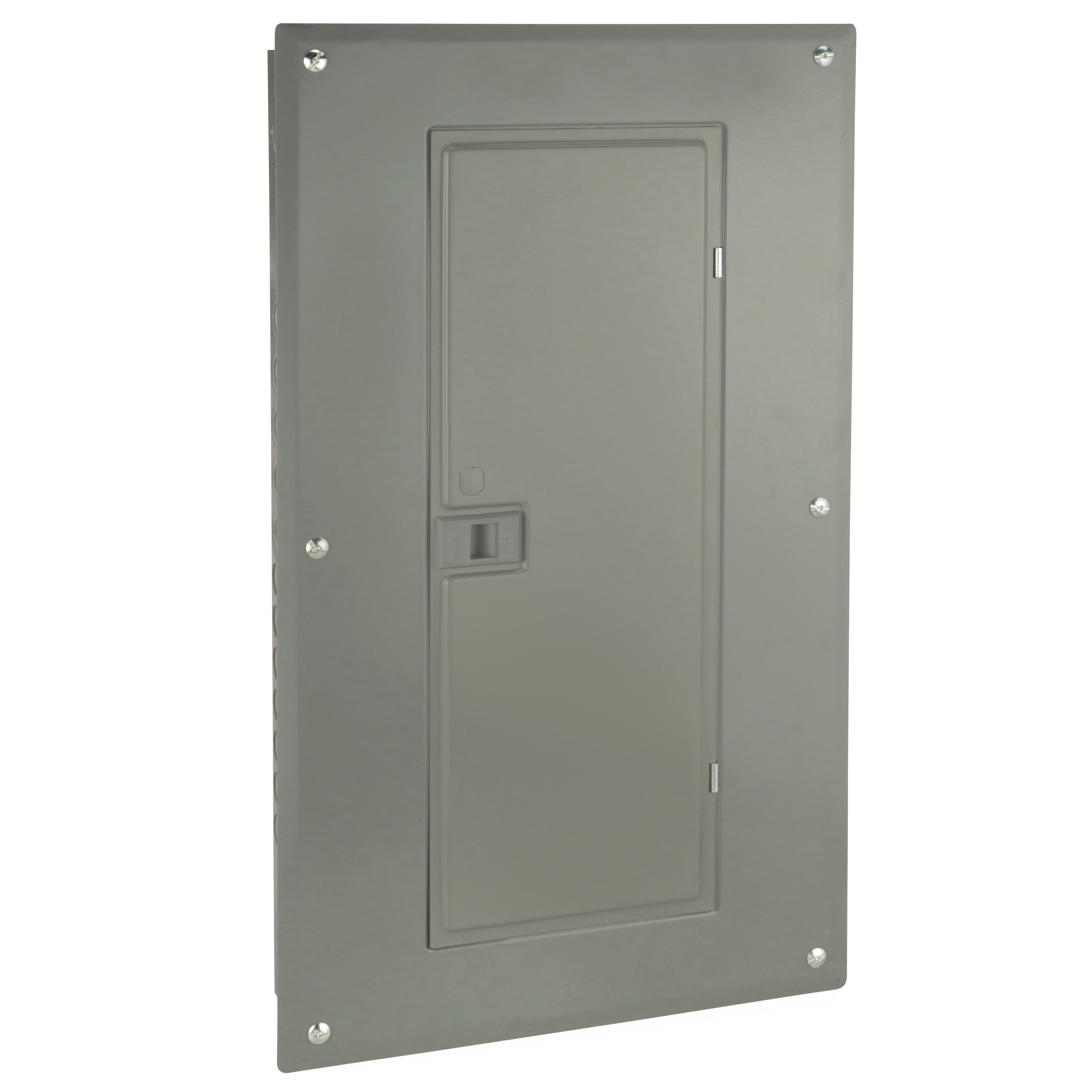

Schneider Electric Homeline® HOM2448L125PGC Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 1 Pole, 10 kA Interrupt
Single Phase Main Lug Load Centers
817758
MFG #: HOM2448L125PGC
Square D™
371.52000
/ ea
- Alternate Catalog Number: HOM2448L125PGC
- ARRA Compliant: N
- Breaker Mounting: Panel
- Buy American Compliant: N
- Cable Size: AWG 6...AWG 2/0 ALUMINIUM-AWG 6...AWG 1 COPPER
- Catalog Number: HOM2448L125PGC
- Country of Origin: US
- Cover Type: Combination flush/surface cover
- Currency: USD
- Dimensions: 26.04 in H x 14.25 in W x 3.75 in D
- Enclosure: Baked enamel Gray;Welded sheet steel;8
- Enclosure Box Size: 8
- Enclosure Type: NEMA 1
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 2784.00
- Gross Volume per Pack Metric: 45621.41
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 25.9500 lb
- Gross Weight per Pack Metric: 11.20
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8537109150
- Height: 5.46 in
- Height [Metric]: 14.0000 cm
- Housing Material: Steel
- Item Group: 00045
- Length: 28.74 in
- Length [Metric]: 73.7000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253441&lang=en-us
- Mounting Type: Flush/Plug-On
- Number of Circuits: 48
- Number Of Feeders: 48
- Number Of Spaces: 24
- Phase: 1
- Returnable: Y
- Standard: UL E-6294
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E6294PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
- Sub Brand: HOMELINE
- Substitute Product Catalog Number: HOM2175SB
- Type: 1-Phase Convertible Neutral
- UNSPSC: 39121101
- UPC 11: 78590197710
- UPC 12: 785901977100
- Width: 16.46 in
- Width [Metric]: 42.2000 cm
- Wire Size: 6 to 2/0 AWG, 6 to 1 AWG
- Wiring Configuration: 3-Wire
- Stock Status: NORMALLY STOCKED
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 125 A
- Interrupt Rating: 10 kA
- Voltage Rating: 120/240 VAC
- Number Of Poles: 1
Schneider Electric HOM2448L125PGC HOM INDR 125A MLO 24/48CIR WGB
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=12945575360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HOM2448L125PGC(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_TCSCAR013M120_Datasheet.pdf(Catalog 1 URL)
- Catalog URL - Schneider_Electric_CHOM3060M200GC_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - becf70b07ab7f1303cae54845dab528fee045c04.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_40FRSBOTE13WC9ZQ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_WIXDP2BQ74JRLEYT.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_F3892Z6TUDCGMNQW.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_SGEWZOC6KJTU9I3B.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/ORZiIVWjn10(Video)
- Warranty URL - 11003_PVC2OT0S4FZHR6LN.pdf(Warranty URL)
- Warranty URL - files?p_enDocType=Warranty&p_File_Name=0700DB2001.pdf(Warranty URL)
- Features
| GROUNDING BAR 1 ),MAIN LUGS,TIN PLATED ALUMINIUM BUSBAR |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Single captive screw interior mounting on indoor panels to ease removal |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Lug electrical connection |
| Lug electrical connection |
