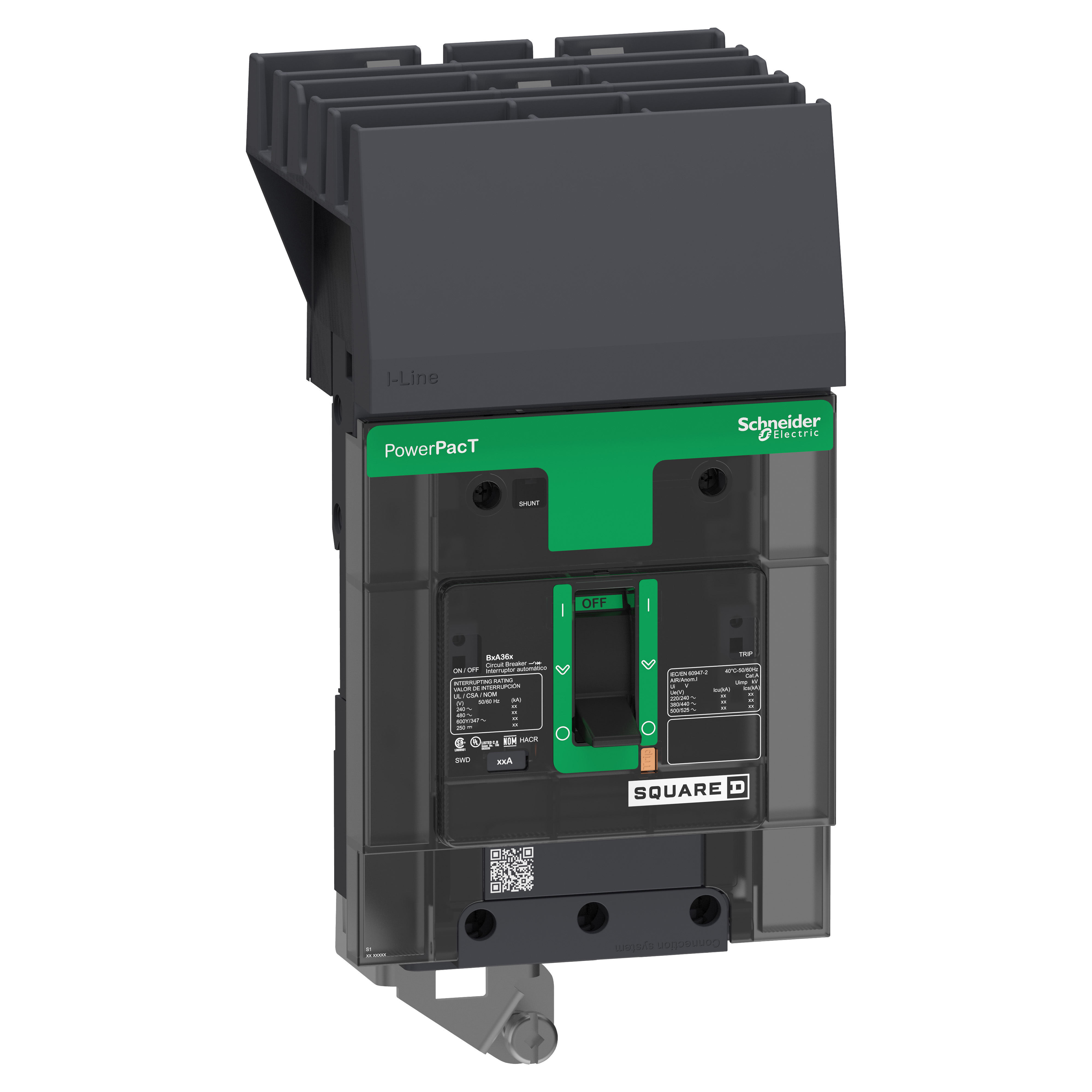

Square D™ BJA36060 Molded Case Cirucite Breaker 600Y/347V 60A

Custom_Product_Images_Illustration

SKU1056258

MFGR #BJA36060

Call For Price

List: ~~$1,928.00~~ /ea

Square D™ BJA36060 MOLDED CASE CIRCUIT BRKR 600Y/347V 60A

: Actuator Type
Toggle
Alternate Catalog Number
BJA36060
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
BJA36060
Color
Gray
Connection Type
Line/Load Lug
Country of Origin
MX
Currency
USD
Dimensions
5.39 in H x 2.12 in W x 4.01 in D
Enclosure Type
NEMA AB4/IP40
EU RoHS Indicator
Y
Frame
B
Frequency Rating
50/60
Gross Volume Per Pack
552.50
Gross Volume per Pack Metric
9053.82
Gross Volume UOM
CI
Gross Volume UOM Metric
cm3
Gross Weight Per Pack
0.0173 lb
Gross Weight per Pack Metric
1.90
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536200020
Height
12.7000 in
Height [Metric]
12.4000 cm
Item Group
01135
Length
33.0200 in
Length [Metric]
32.5000 cm
Material Composition Declaration
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590519&lang=en-us
Mounting Type
DIN Rail/Threaded
Number Of Poles
2
Returnable
Y
Substitute Product Catalog Number
LV426962
Temperature Rating
-13 to 158
Trip Range
400 to 600
UNSPSC
39121601
Width
21.5900 in
Width [Metric]
20.3000 cm
Wire Size
14 to 2/0 AWG Al/Cu
Stock Status
NONSTOCK
Brand
Square D™
Manufacturer
Schneider Electric
Amperage Rating
40 A
Interrupt Rating
25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC
Trip Type
Thermal Magnetic
Voltage Rating
480Y/277
: 360 Degree View
Brochure
Computer~Aided [CAD|BIM] Model
Install Instructions 1
Seller Home Page
Spec Sheet
Tech Drawing

Actuator Type	Toggle
Alternate Catalog Number	BJA36060
ARRA Compliant	N
Buy American Compliant	N
Catalog Number	BJA36060
Color	Gray
Connection Type	Line/Load Lug
Country of Origin	MX
Currency	USD
Dimensions	5.39 in H x 2.12 in W x 4.01 in D
Enclosure Type	NEMA AB4/IP40
EU RoHS Indicator	Y
Frame	B
Frequency Rating	50/60
Gross Volume Per Pack	552.50
Gross Volume per Pack Metric	9053.82
Gross Volume UOM	CI
Gross Volume UOM Metric	cm3
Gross Weight Per Pack	0.0173 lb
Gross Weight per Pack Metric	1.90
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536200020
Height	12.7000 in
Height [Metric]	12.4000 cm
Item Group	01135
Length	33.0200 in
Length [Metric]	32.5000 cm
Material Composition Declaration	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590519&lang=en-us
Mounting Type	DIN Rail/Threaded
Number Of Poles	2
Returnable	Y
Substitute Product Catalog Number	LV426962
Temperature Rating	-13 to 158
Trip Range	400 to 600
UNSPSC	39121601
Width	21.5900 in
Width [Metric]	20.3000 cm
Wire Size	14 to 2/0 AWG Al/Cu
Stock Status	NONSTOCK
Brand	Square D™
Manufacturer	Schneider Electric
Amperage Rating	40 A
Interrupt Rating	25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC
Trip Type	Thermal Magnetic
Voltage Rating	480Y/277
