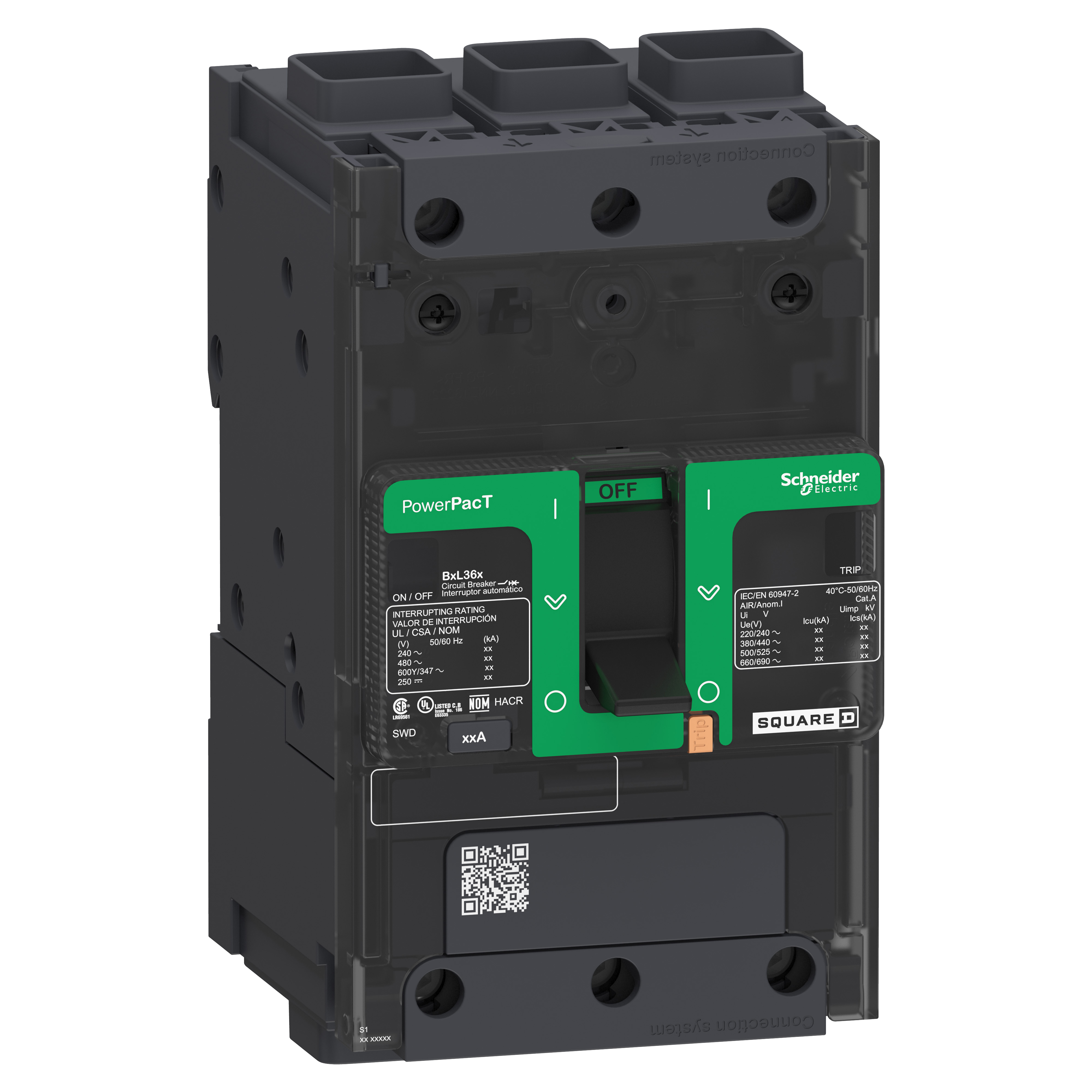

Schneider Electric PowerPact™ EverLink BDF36020 Molded Case Circuit Breaker, 600Y/347 VAC, 20 A, 14/18/25 kA Interrupt, 3 Poles, LI/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Schneider Electric PowerPact™ EverLink BDF36020 Molded Case Circuit Breaker, 600Y/347 VAC, 20 A, 14/18/25 kA Interrupt, 3 Poles, LI/Thermal Magnetic Trip
SKUPDW~12432608
MFGR #BDF36020
Price Not Available
Schneider Electric PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 20 A, 50/60 Hz, 14/18/25 kA Interrupt, B Frame, LI/Thermal Magnetic Trip, 400 to 600 A Trip, 3 Poles, Toggle Handle Actuator, Terminal Nut, 14 to 3/0 AWG Cu Wire, NEMA AB1/IP40, DIN Rail/Surface/Threaded Mount, -13 to 158 deg F, 5.39 in H x 3.19 in W x 3.15 in D, Gray
Schneider Electric PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 20 A, 50/60 Hz, 14/18/25 kA Interrupt, B Frame, LI/Thermal Magnetic Trip, 400 to 600 A Trip, 3 Poles, Toggle Handle Actuator, Terminal Nut, 14 to 3/0 AWG Cu Wire, NEMA AB1/IP40, DIN Rail/Surface/Threaded Mount, -13 to 158 deg F, 5.39 in H x 3.19 in W x 3.15 in D, Gray
Alternate Catalog Number BDF36020 Application Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Buildings Applications ARRA Compliant N Buy American Compliant N Catalog Number BDF36020 Country of Origin MX Currency USD EU RoHS Indicator Y Gross Weight Per Pack 2.6000 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.27 in Height [Metric] 8.3820 cm Item Group 01130 Length 8.02 in Length [Metric] 20.5740 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590068&lang=en-us Number Of Poles 3 Returnable Y Substitute Product Catalog Number LV426963 UNSPSC 39121601 Width 4.66 in Width [Metric] 11.9380 cm Brand Square D™ Manufacturer Schneider Electric Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Buildings Applications 690 VAC 50/60 Hz according to IEC 60947-2 voltage rating 25 kA at 240 VAC/18 kA at 480 VAC 50/60 Hz according to UL 489, 25 kA at 220 to 240 VAC/18 kA at 380 to 415 VAC/440 VAC/14 kA at 500 to 525 VAC 50/60 Hz according to IEC/60947-2/18 kA at 480Y/277 VAC/25 kA at 208Y/120 VAC/14 kA at 600Y/347 VAC 50/60 Hz according to UL 489
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | BDF36020 |
| Application | Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Buildings Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BDF36020 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.6000 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.27 in |
| Height [Metric] | 8.3820 cm |
| Item Group | 01130 |
| Length | 8.02 in |
| Length [Metric] | 20.5740 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590068&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Substitute Product Catalog Number | LV426963 |
| UNSPSC | 39121601 |
| Width | 4.66 in |
| Width [Metric] | 11.9380 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Buildings Applications |
| 690 VAC 50/60 Hz according to IEC 60947-2 voltage rating |
| 25 kA at 240 VAC/18 kA at 480 VAC 50/60 Hz according to UL 489, 25 kA at 220 to 240 VAC/18 kA at 380 to 415 VAC/440 VAC/14 kA at 500 to 525 VAC 50/60 Hz according to IEC/60947-2/18 kA at 480Y/277 VAC/25 kA at 208Y/120 VAC/14 kA at 600Y/347 VAC 50/60 Hz according to UL 489 |
