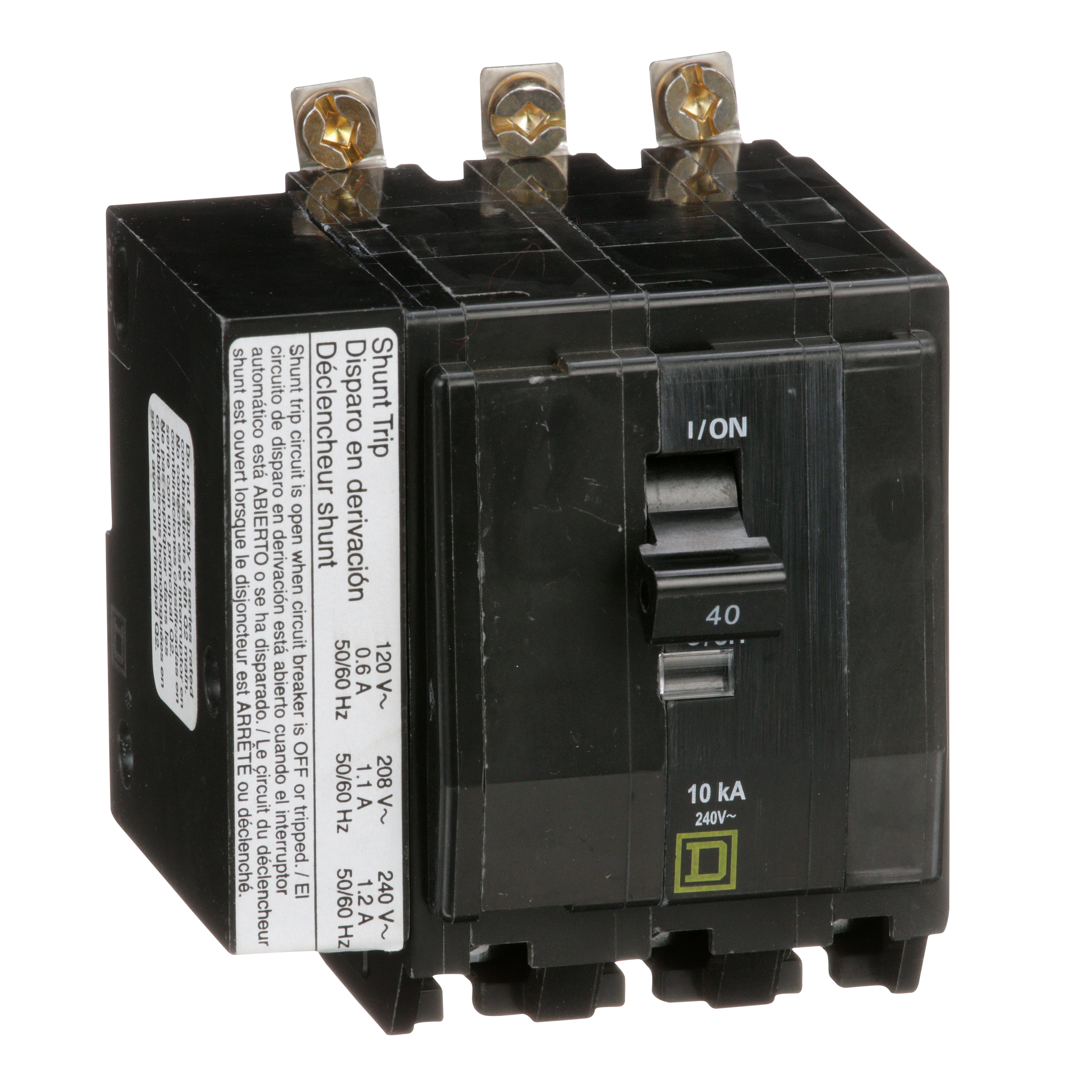

Square D™ QOB3401021 Miniature Circuit Breaker, 240 VAC/48 VDC, 40 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB3401021 Miniature Circuit Breaker, 240 VAC/48 VDC, 40 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU258498
MFGR #QOB3401021
Your Cost: $531.37/ea
Square D QOB3401021 MINIATURE CIRCUIT BREAKER 240V 40A,10kA,240 Vac,3-Phase,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QOB3401021 MINIATURE CIRCUIT BREAKER 240V 40A,10kA,240 Vac,3-Phase,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QOB3401021 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOB3401021 Connection BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 2.25 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 51.52 Gross Volume per Pack Metric 844.26 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1169.9900 lb Gross Weight per Pack Metric 530.70 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.8900 in Height [Metric] 8.8900 cm Item Group 00015 Length 11.6840 in Length [Metric] 11.6840 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401445&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA 22.2 No. 5HACR RatedPPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Sub Brand QO Substitute Product Catalog Number NQ430L1C Temperature Rating 104 °F Type Standard UNSPSC 39121603 UPC 11 78590149442 UPC 12 785901494423 Warranty Description Contractual Warranty:18 months Width 8.1280 in Width [Metric] 8.1280 cm Wire Size 8 to 2 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC HACR rated STANDARD BOLT-ON QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit Common trip 120/208/240 VAC shunt trip 10 kA at 240 VAC, 5 kA at 48 VDC interrupt rating Shunt trip 8 to 2 AWG aluminum/copper wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB3401021 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB3401021 |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 2.25 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 51.52 |
| Gross Volume per Pack Metric | 844.26 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1169.9900 lb |
| Gross Weight per Pack Metric | 530.70 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.8900 in |
| Height [Metric] | 8.8900 cm |
| Item Group | 00015 |
| Length | 11.6840 in |
| Length [Metric] | 11.6840 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401445&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA 22.2 No. 5HACR RatedPPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Sub Brand | QO |
| Substitute Product Catalog Number | NQ430L1C |
| Temperature Rating | 104 °F |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590149442 |
| UPC 12 | 785901494423 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.1280 in |
| Width [Metric] | 8.1280 cm |
| Wire Size | 8 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| HACR rated |
| STANDARD BOLT-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
| 120/208/240 VAC shunt trip |
| 10 kA at 240 VAC, 5 kA at 48 VDC interrupt rating |
| Shunt trip |
| 8 to 2 AWG aluminum/copper wire |
