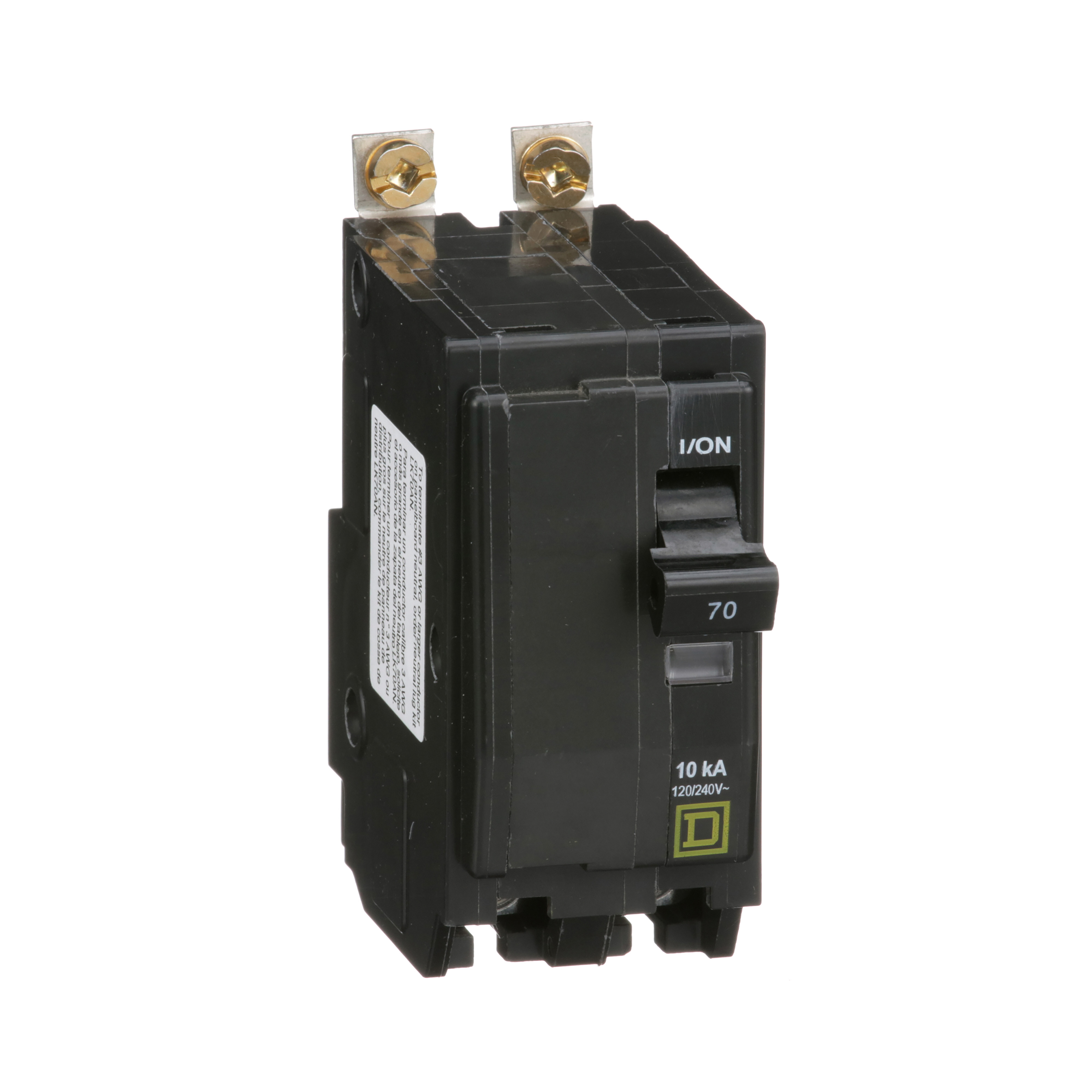

Square D™ QOB270 Miniature Circuit Breaker, 240 VAC/48 VDC, 70 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB270 Miniature Circuit Breaker, 240 VAC/48 VDC, 70 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU33231
MFGR #QOB270
Your Cost: $198.00/ea
Square D QOB270 MINIATURE CIRCUIT BREAKER 120/240V 70A,1-Phase,10kA,120/240 Vac,70A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QOB270 MINIATURE CIRCUIT BREAKER 120/240V 70A,1-Phase,10kA,120/240 Vac,70A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QOB270 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOB270 Connection BOX LUGS #8 TO #2 AWG(AL/CU) Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 1.5 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 19.60 Gross Volume per Pack Metric 321.18 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 610.6800 lb Gross Weight per Pack Metric 277.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 4.0640 in Height [Metric] 4.0640 cm Item Group 00015 Length 8.8900 in Length [Metric] 8.8900 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401135&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Sub Brand QO Substitute Product Catalog Number NQ30L2C Temperature Rating 104 °F Type Standard UNSPSC 39121603 UPC 11 78590141704 UPC 12 785901417040 Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 8 to 2 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 70 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC HACR rated STANDARD BOLT-ON QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit Common trip 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating 8 to 2 AWG aluminum/copper wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB270 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB270 |
| Connection | BOX LUGS #8 TO #2 AWG(AL/CU) |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 1.5 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 19.60 |
| Gross Volume per Pack Metric | 321.18 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 610.6800 lb |
| Gross Weight per Pack Metric | 277.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 4.0640 in |
| Height [Metric] | 4.0640 cm |
| Item Group | 00015 |
| Length | 8.8900 in |
| Length [Metric] | 8.8900 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401135&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QO |
| Substitute Product Catalog Number | NQ30L2C |
| Temperature Rating | 104 °F |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590141704 |
| UPC 12 | 785901417040 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 8 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 70 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| HACR rated |
| STANDARD BOLT-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
| 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating |
| 8 to 2 AWG aluminum/copper wire |
