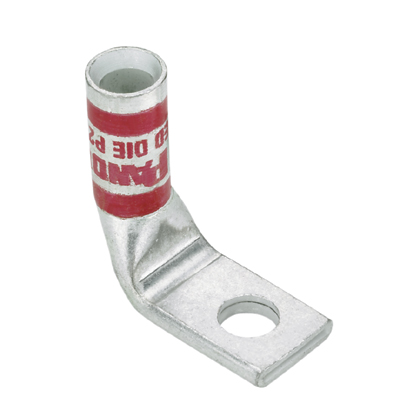

Panduit® LCA500-12F-6 Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 500 kcmil Copper Conductor, 1/2 in Stud, P87
Custom_Product_Images_Illustration
Panduit® LCA500-12F-6 Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 500 kcmil Copper Conductor, 1/2 in Stud, P87
SKU372273
MFGR #LCA500-12F-6
Your Cost: $49.9852/c($4,998.52 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCA500-12F-6 Color Brown Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 1.23 Gross Weight UOM Metric kg Height 3.20 in Height [Metric] 8.1280 cm Length 7.80 in Length [Metric] 19.8120 cm Mounting 1.81 Number Of Holes 1 Overall Length 2.48 in Returnable Y Series LCA Specifications 1-13/16 in L Wire Strip, Tin Plated Finish Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedNEBS Level 3UL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Type 90 Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498386985 UPC 12 074983869855 Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 500 kcmil Conductor Type Copper/Stranded Die Code P87 Material Tin-Plated Copper Stud Size 1/2 in Gross Volume UOM CF Gross Volume UOM Metric m3
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA500-12F-6 |
| Color | Brown |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 1.23 |
| Gross Weight UOM Metric | kg |
| Height | 3.20 in |
| Height [Metric] | 8.1280 cm |
| Length | 7.80 in |
| Length [Metric] | 19.8120 cm |
| Mounting | 1.81 |
| Number Of Holes | 1 |
| Overall Length | 2.48 in |
| Returnable | Y |
| Series | LCA |
| Specifications | 1-13/16 in L Wire Strip, Tin Plated Finish |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedNEBS Level 3UL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Type | 90 |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498386985 |
| UPC 12 | 074983869855 |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 500 kcmil |
| Conductor Type | Copper/Stranded |
| Die Code | P87 |
| Material | Tin-Plated Copper |
| Stud Size | 1/2 in |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
