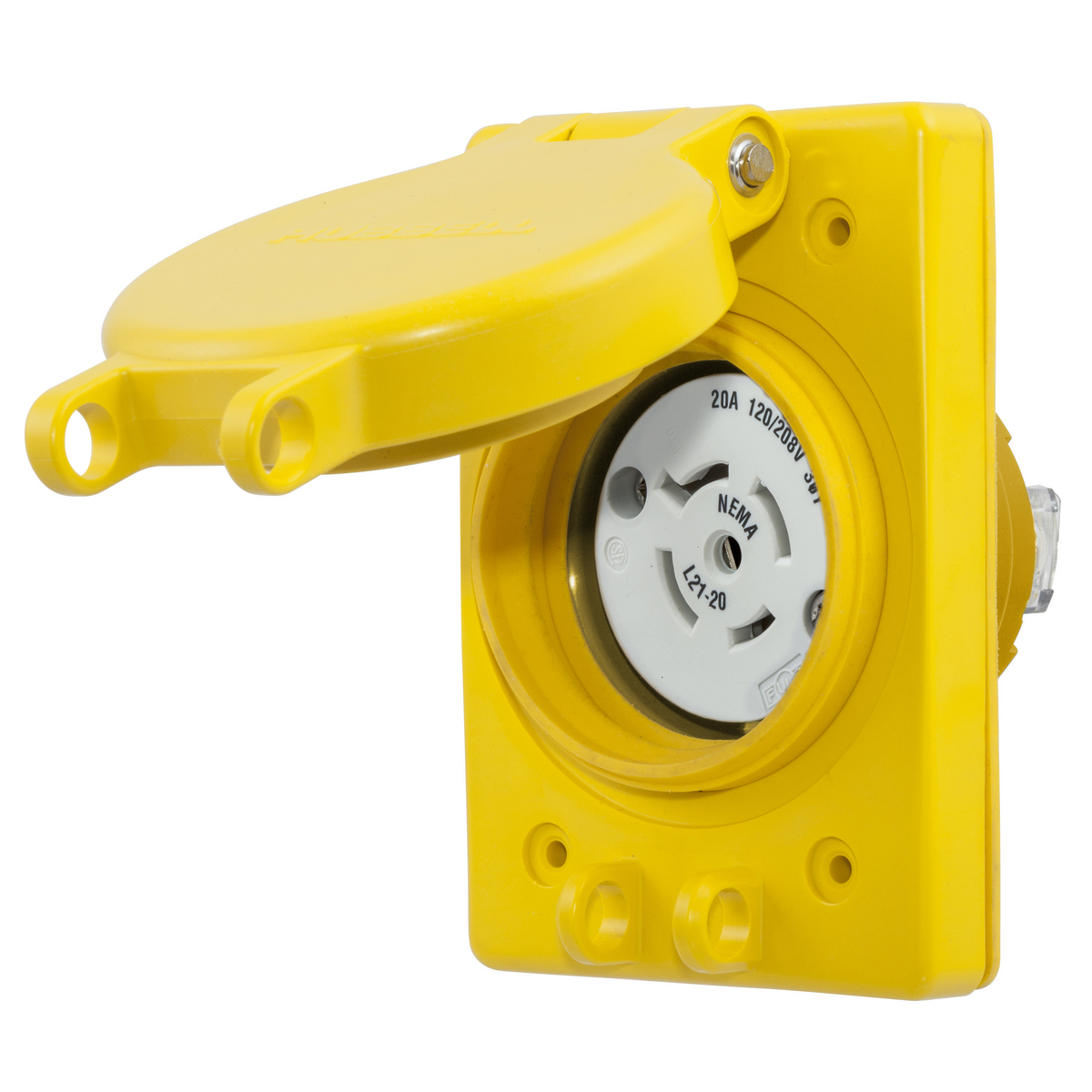

Hubbell Wiring Device-Kellems Twist-Lock® HBL67W81 Grounding Watertight Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® HBL67W81 Grounding Watertight Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Yellow
SKUPDW~11143201
MFGR #HBL67W81
Your Cost: $157.55/ea
List: Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Watertight, 120/208 VAC, 20 A, 4 Poles, 5 Wires, NEMA L21-20R, Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, 30 deg C, Screw Terminal, PBT, Yellow, 4.56 in H x 3.1 in W x 0.2 in D
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Watertight, 120/208 VAC, 20 A, 4 Poles, 5 Wires, NEMA L21-20R, Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, 30 deg C, Screw Terminal, PBT, Yellow, 4.56 in H x 3.1 in W x 0.2 in D
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL67W81 Connection Screw Terminals Country of Origin PR Currency USD Dimensions 4.56 in H x 3.1 in W x 2.92 in H Enclosure IP65/IP66/IP67/IP69K Environmental Conditions Watertight EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.42 in Height [Metric] 8.6817 cm Length 5.17 in Length [Metric] 13.1267 cm Material Elastomer/Composite Mounting Screw Mount NEMA Rating L21-20R Number Of Poles 4 Phase 3 Returnable N Size 4.56 in x 3.10 in x 2.92 in Standard IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42NEMA WD1/WD6ANSI Specified Sub Brand Twist-Lock Devices Temperature Rating -40 to 60 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358543320 UPC 12 783585433202 Wattage 4,160 W Width 3.17 in Width [Metric] 8.0467 cm Wire Size #18 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Yellow Number of Wires 5 Voltage Rating 3-Phase Y 120/208 VAC Industrial/Commercial Watertight Impact resistant PBT lid, cover plate and receptacle body Thermoplastic elastomer seal Stainless steel hardware and corrosion resistant connection points
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL67W81 |
| Connection | Screw Terminals |
| Country of Origin | PR |
| Currency | USD |
| Dimensions | 4.56 in H x 3.1 in W x 2.92 in H |
| Enclosure | IP65/IP66/IP67/IP69K |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.42 in |
| Height [Metric] | 8.6817 cm |
| Length | 5.17 in |
| Length [Metric] | 13.1267 cm |
| Material | Elastomer/Composite |
| Mounting | Screw Mount |
| NEMA Rating | L21-20R |
| Number Of Poles | 4 |
| Phase | 3 |
| Returnable | N |
| Size | 4.56 in x 3.10 in x 2.92 in |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42NEMA WD1/WD6ANSI Specified |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358543320 |
| UPC 12 | 783585433202 |
| Wattage | 4,160 W |
| Width | 3.17 in |
| Width [Metric] | 8.0467 cm |
| Wire Size | #18 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 5 |
| Voltage Rating | 3-Phase Y 120/208 VAC |
| Industrial/Commercial |
| Watertight |
| Impact resistant PBT lid, cover plate and receptacle body |
| Thermoplastic elastomer seal |
| Stainless steel hardware and corrosion resistant connection points |
