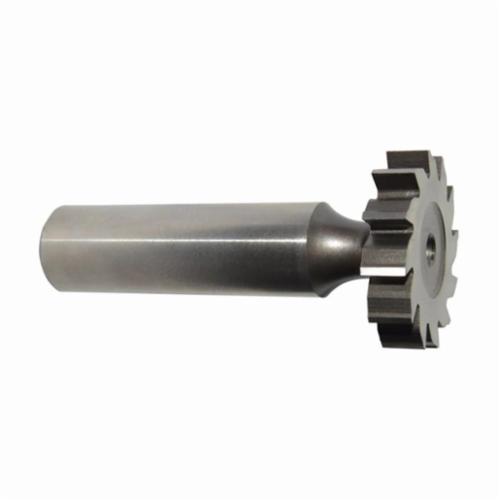

KEO 94174 Straight Tooth Standard Woodruff Keyseat Cutter, 1-1/2 in Dia, 3/8 in Cutting, 2-3/8 in OAL, 1/2 in
Custom_Product_Images_Illustration
KEO 94174 Straight Tooth Standard Woodruff Keyseat Cutter, 1-1/2 in Dia, 3/8 in Cutting, 2-3/8 in OAL, 1/2 in
SKU765919
MFGR #103-094174
$/ea
KEO Woodruff Keyseat Cutter, Straight Tooth, Standard, 1-1/2 in Cutter Dia, 2-3/8 in Overall Length, 3/8 in Cutting Width, 1/2 in Shank Dia, Round Shank, Right Hand Cutting, Carbide Tipped, Uncoated
KEO Woodruff Keyseat Cutter, Straight Tooth, Standard, 1-1/2 in Cutter Dia, 2-3/8 in Overall Length, 3/8 in Cutting Width, 1/2 in Shank Dia, Round Shank, Right Hand Cutting, Carbide Tipped, Uncoated
Catalog Number 103-094174 Country of Origin US Cutting Diameter 1.5150 in Cutting Direction Right Hand Finish Uncoated Gross Weight Per Pack 1 lb Line Drawing Dimensions CDX=0.5240" CW=0.3750" DC=1.5150" DCONms=0.5000" L=2.3750" LS=1.6250" Material Carbide Tipped Maximum Depth of Cut 0.5240 in Number of Cutting Edges 8 Shank Length 1.6250 in Standards ISO 9001:2008 Type Straight Tooth, Standard UPC 11 67014594174 UPC 12 67014594174 Stock Status NONSTOCK Brand KEO Manufacturer ARCH Cutting Tools Connection Type Shank Cutter Diameter 1-1/2 in Cutting Width 0.3750 in Overall Length 2-3/8 in Shank Diameter 0.5000 in Shank Type Round Tooth Configuration Straight NO 1212 American Standard 8 teeth Woodruff keyseat cutters are extremely versatile profile milling cutters Carbide-tipped tools feature cutting edges of carbide for wear resistance and a steel shank for toughness Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications Round shanks allow use with a wide variety of tool holding systems When run in a counterclockwise direction spiral fluted tools evacuate chips up and out of the cut to reduce clogging
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 103-094174 |
| Country of Origin | US |
| Cutting Diameter | 1.5150 in |
| Cutting Direction | Right Hand |
| Finish | Uncoated |
| Gross Weight Per Pack | 1 lb |
| Line Drawing Dimensions | CDX=0.5240" CW=0.3750" DC=1.5150" DCONms=0.5000" L=2.3750" LS=1.6250" |
| Material | Carbide Tipped |
| Maximum Depth of Cut | 0.5240 in |
| Number of Cutting Edges | 8 |
| Shank Length | 1.6250 in |
| Standards | ISO 9001:2008 |
| Type | Straight Tooth, Standard |
| UPC 11 | 67014594174 |
| UPC 12 | 67014594174 |
| Stock Status | NONSTOCK |
| Brand | KEO |
| Manufacturer | ARCH Cutting Tools |
| Connection Type | Shank |
| Cutter Diameter | 1-1/2 in |
| Cutting Width | 0.3750 in |
| Overall Length | 2-3/8 in |
| Shank Diameter | 0.5000 in |
| Shank Type | Round |
| Tooth Configuration | Straight |
| NO 1212 American Standard |
| 8 teeth |
| Woodruff keyseat cutters are extremely versatile profile milling cutters |
| Carbide-tipped tools feature cutting edges of carbide for wear resistance and a steel shank for toughness |
| Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications |
| Round shanks allow use with a wide variety of tool holding systems |
| When run in a counterclockwise direction spiral fluted tools evacuate chips up and out of the cut to reduce clogging |
