Sandvik Coromant

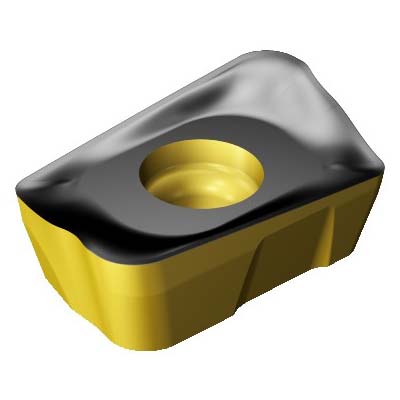

Sandvik Coromant 5745999 CoroMill® 390 Milling Insert, R390-18 06 16M-PM 4230, L-Rectangle, R390-18..M-PM Insert, Carbide, 4230, R390-18 06 16M-PM 4230
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5745999 CoroMill® 390 Milling Insert, R390-18 06 16M-PM 4230, L-Rectangle, R390-18..M-PM Insert, Carbide, 4230, R390-18 06 16M-PM 4230
SKU968654
MFGR #5745999
Your Cost: $24.08/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..M-PM Insert, L-Rectangle, 0.433 in Inscribed Circle, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, PM Chipbreaker, 0.063 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1633 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R390-18 06 16M-PM 4230, ISO Code: R390-18 06 16M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..M-PM Insert, L-Rectangle, 0.433 in Inscribed Circle, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, PM Chipbreaker, 0.063 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1633 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R390-18 06 16M-PM 4230, ISO Code: R390-18 06 16M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code R390-18 06 16M-PM 4230 Catalog Number 5745999 Corner Radius 0.063 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1633 in Includes 6.33 mm ISO Code R390-18 06 16M-PM 4230 Lead Angle 90 deg Length 0.7263 in Material Application Steel Relief Angle 11 mm Series CoroMill® 390 Thickness 0.2492 in Type Carbide UPC 11 69826237927 UPC 12 69826237927 Width 0.433 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker PM Inscribed Circle 0.433 in Insert Size MTCVD Coated Insert Style R390-18..M-PM Manufacturer's Grade 4230 Material Carbide Material Grade P Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 16 mm D cutting 1.1 mm L wiper edge 90 deg major cutting edge 15.4 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 -0.3 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R390-18 06 16M-PM 4230 |
| Catalog Number | 5745999 |
| Corner Radius | 0.063 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1633 in |
| Includes | 6.33 mm |
| ISO Code | R390-18 06 16M-PM 4230 |
| Lead Angle | 90 deg |
| Length | 0.7263 in |
| Material Application | Steel |
| Relief Angle | 11 mm |
| Series | CoroMill® 390 |
| Thickness | 0.2492 in |
| Type | Carbide |
| UPC 11 | 69826237927 |
| UPC 12 | 69826237927 |
| Width | 0.433 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | PM |
| Inscribed Circle | 0.433 in |
| Insert Size | MTCVD Coated |
| Insert Style | R390-18..M-PM |
| Manufacturer's Grade | 4230 |
| Material | Carbide |
| Material Grade | P |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 16 mm D cutting |
| 1.1 mm L wiper edge |
| 90 deg major cutting edge |
| 15.4 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 -0.3 mm/r cutting feed |
