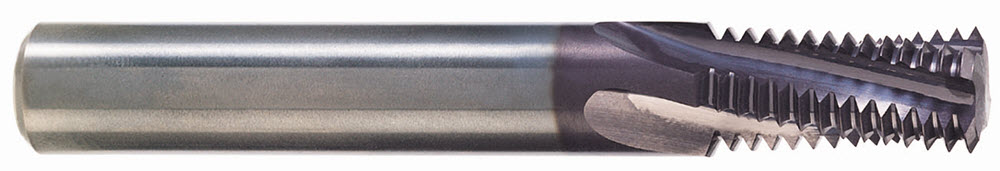

YG-1 TD280 M5 - .8 PITCH THREAD MILLS SOLID CARBIDE 60 DEGREE HELICAL FLUTE TIALN COATED FOR METRIC INTERNAL THREADS - DIN 13
Custom_Product_Images_Illustration
YG-1 TD280 M5 - .8 PITCH THREAD MILLS SOLID CARBIDE 60 DEGREE HELICAL FLUTE TIALN COATED FOR METRIC INTERNAL THREADS - DIN 13
SKUPDW~10965327
MFGR #TD280
Your Cost: $199.89/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel, Cast Iron, Non-Ferrous Materials Catalog Number TD280 Country of Origin KR Cutting Diameter 0.12 in Cutting Direction Right Hand Finish TiAN Gross Weight Per Pack 0.0200 lb Helix Angle 15 ° Material Carbide Number of Flutes 3 Series TD Shank Type Plain Thread Diameter M5 Thread Length 0.312 in Thread Standard M TPI or Pitch 0.8 Type Metric Internal Threads - DIN 13 Brand YG-1 Manufacturer YG-1 U.S.A. Overall Length 2 in Shank Diameter 0.125 in Thread Size M5x.8 Steel, Cast Iron, Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel, Cast Iron, Non-Ferrous Materials |
| Catalog Number | TD280 |
| Country of Origin | KR |
| Cutting Diameter | 0.12 in |
| Cutting Direction | Right Hand |
| Finish | TiAN |
| Gross Weight Per Pack | 0.0200 lb |
| Helix Angle | 15 ° |
| Material | Carbide |
| Number of Flutes | 3 |
| Series | TD |
| Shank Type | Plain |
| Thread Diameter | M5 |
| Thread Length | 0.312 in |
| Thread Standard | M |
| TPI or Pitch | 0.8 |
| Type | Metric Internal Threads - DIN 13 |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Overall Length | 2 in |
| Shank Diameter | 0.125 in |
| Thread Size | M5x.8 |
| Steel, Cast Iron, Non-Ferrous Materials |
