Wiegmann® BN4060604AL BN4-AL Wall Mount Enclosure, 6 in L x 6 in W x 4 in D, NEMA 4, Aluminum Alloy

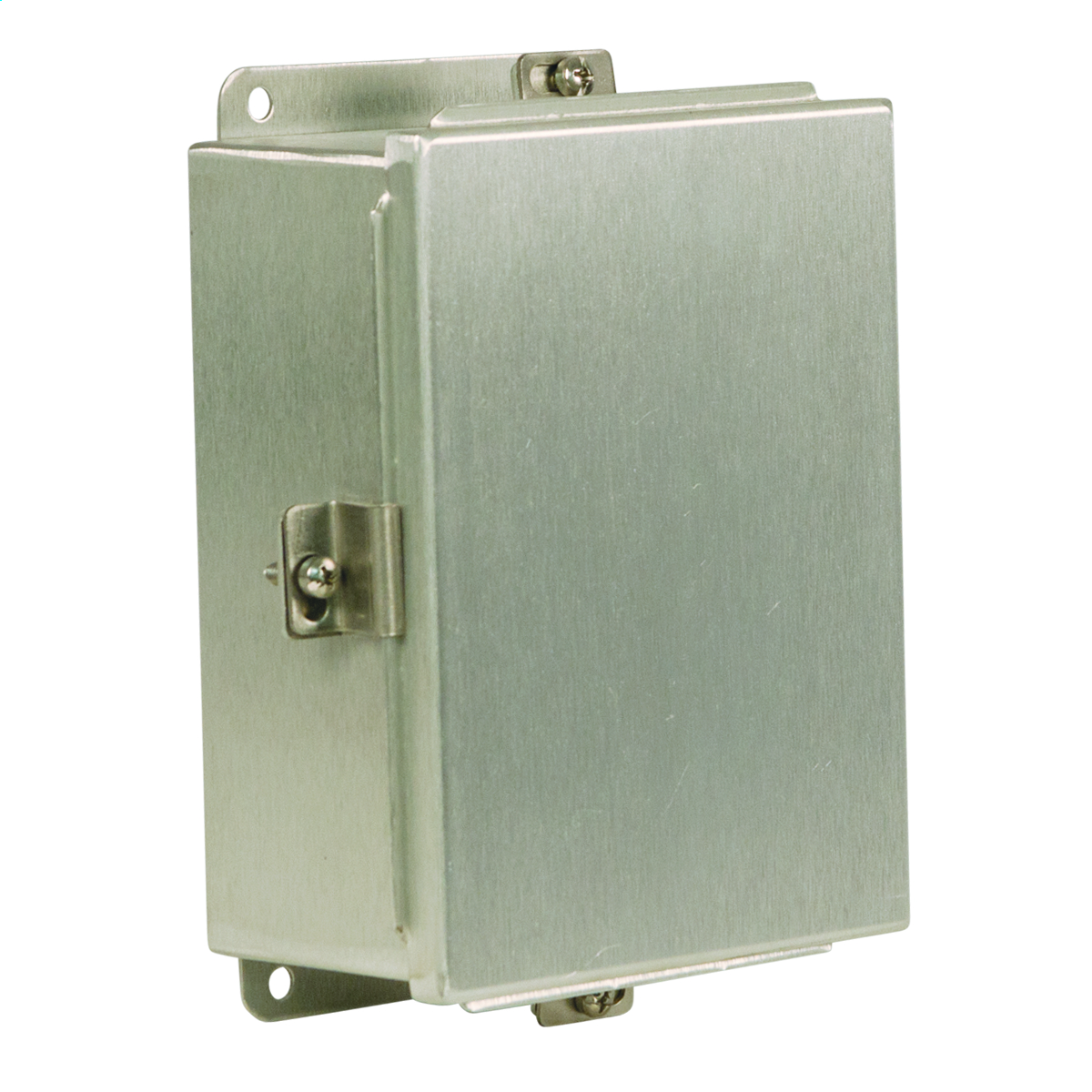

Custom_Product_Images_Illustration
Wiegmann® BN4060604AL BN4-AL Wall Mount Enclosure, 6 in L x 6 in W x 4 in D, NEMA 4, Aluminum Alloy
SKU952113
MFGR #BN4060604AL
Your Cost: $501.22/ea
Wiegmann® Wall Mount Enclosure, Series: BN4-AL, 6 in Length, 6 in Width, 4 in Depth, NEMA 4, Lift-Off Cover, 4.88 x 4.88 in Panel, 144 cu-in, Wall Mount, Aluminum Alloy, Smooth Grained, Aluminum
Wiegmann® Wall Mount Enclosure, Series: BN4-AL, 6 in Length, 6 in Width, 4 in Depth, NEMA 4, Lift-Off Cover, 4.88 x 4.88 in Panel, 144 cu-in, Wall Mount, Aluminum Alloy, Smooth Grained, Aluminum
Application Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required. ARRA Compliant C Buy American Compliant C Capacity 144 in³ Catalog Number BN4060604AL Color Silver Construction Continuously Welded Seams Country of Origin US Cover Type Lift-Off Cubic Capacity 144 cu. in. in³ Currency USD EU RoHS Indicator N Finish Smooth Grained Gross Volume Per Pack 190.12 Gross Volume per Pack Metric 3115.58 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.9000 lb Gross Weight per Pack Metric 0.86 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7616995190 Height [Metric] 11.4300 cm Length [Metric] 16.5100 cm Mounting External mounting plates Mounting Type External/Surface Panel Size 4.88 x 4.88 in Returnable Y Series BN4-AL Size 6" H x 6" W x 4" D Standard UL, CSA Type JIC Welded Seam UNSPSC 39121324 UPC 11 78672537677 UPC 12 786725376773 Width [Metric] 16.5100 cm Stock Status NONSTOCK Brand Wiegmann® Manufacturer Wiegmann Depth 4 in Height 4.50 in Length 6.50 in Material Aluminum Alloy NEMA Rating NEMA 4/4X/12/13 Width 6.50 in Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required. Bodies and doors fabricated from .080-inch thick (2 millimeters) 5052-H32 aluminum. Continuously welded seams ground smooth, less holes or knockouts. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional panel. Stainless steel screws and clamps on four sides of cover to assure water tight seal. Optional panels and terminal kits must be ordered separately. Grounding provisions provided. Bodies and doors fabricated from 14 ga 0.08 in THK 5052-H32 aluminum Continuously welded seams ground smooth, no holes or knockouts Closed cell oil-resistant neoprene gasket External mounting plates, top and bottom of enclosure Weldnuts are provided for mounting Stainless steel screws and clamps on four sides of cover to assure watertight seal Grounding provisions provided Without knockout
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Capacity | 144 in³ |
| Catalog Number | BN4060604AL |
| Color | Silver |
| Construction | Continuously Welded Seams |
| Country of Origin | US |
| Cover Type | Lift-Off |
| Cubic Capacity | 144 cu. in. in³ |
| Currency | USD |
| EU RoHS Indicator | N |
| Finish | Smooth Grained |
| Gross Volume Per Pack | 190.12 |
| Gross Volume per Pack Metric | 3115.58 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.9000 lb |
| Gross Weight per Pack Metric | 0.86 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7616995190 |
| Height [Metric] | 11.4300 cm |
| Length [Metric] | 16.5100 cm |
| Mounting | External mounting plates |
| Mounting Type | External/Surface |
| Panel Size | 4.88 x 4.88 in |
| Returnable | Y |
| Series | BN4-AL |
| Size | 6" H x 6" W x 4" D |
| Standard | UL, CSA |
| Type | JIC Welded Seam |
| UNSPSC | 39121324 |
| UPC 11 | 78672537677 |
| UPC 12 | 786725376773 |
| Width [Metric] | 16.5100 cm |
| Stock Status | NONSTOCK |
| Brand | Wiegmann® |
| Manufacturer | Wiegmann |
| Depth | 4 in |
| Height | 4.50 in |
| Length | 6.50 in |
| Material | Aluminum Alloy |
| NEMA Rating | NEMA 4/4X/12/13 |
| Width | 6.50 in |
| Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required. |
| Bodies and doors fabricated from .080-inch thick (2 millimeters) 5052-H32 aluminum. Continuously welded seams ground smooth, less holes or knockouts. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional panel. Stainless steel screws and clamps on four sides of cover to assure water tight seal. Optional panels and terminal kits must be ordered separately. Grounding provisions provided. |
| Bodies and doors fabricated from 14 ga 0.08 in THK 5052-H32 aluminum |
| Continuously welded seams ground smooth, no holes or knockouts |
| Closed cell oil-resistant neoprene gasket |
| External mounting plates, top and bottom of enclosure |
| Weldnuts are provided for mounting |
| Stainless steel screws and clamps on four sides of cover to assure watertight seal |
| Grounding provisions provided |
| Without knockout |
