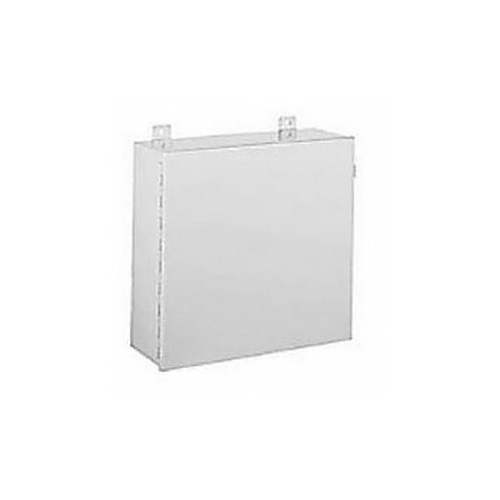

Wiegmann® B202007CH JIC,CH,OIL-TIGHT,CS,2
SKU795098
MFGR #B202007CH
Your Cost: $1,099.83/ea
JIC,CH,OIL-TIGHT,CS,20X20X7
JIC,CH,OIL-TIGHT,CS,20X20X7
Application Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. ARRA Compliant C Buy American Compliant C Capacity 2800 in³ Catalog Number B202007CH Color Gray Construction Continuously Welded Seams Country of Origin US Cover Type Continuous Hinged Cubic Capacity 2800 cu. in. in³ Currency USD EU RoHS Indicator Y Finish Smooth Gross Volume Per Pack 2800.00 Gross Volume per Pack Metric 45883.60 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 35.0000 lb Gross Weight per Pack Metric 15.88 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height [Metric] 50.8000 cm Length [Metric] 17.7800 cm Mounting External mounting feet Mounting Type Wall Panel Size 17 in H x 17 in W Returnable Y Series Large B-CH Size 20" H x 20" W x 7" D Standard UL, CSA Type Oiltight UNSPSC 39121324 UPC 11 78672533511 UPC 12 786725335114 Width [Metric] 50.8000 cm Stock Status NONSTOCK Brand Wiegmann® Manufacturer Wiegmann Depth 7 in Height 20.00 in Length 7.00 in Material Carbon Steel NEMA Rating NEMA 12/13 Width 20.00 in Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Doors are sealed with poured-in-place polyurethane gasket. External screw clamps on door. Continuously hinged door is removable by pulling hinged pin. Print pocket is provided. Collar studs are provided for mounting optional back panels. External mounting feet. Ground stud located in door. Body and doors fabricated from 14 ga steel Continuously welded seams ground smooth, less knockouts or holes Doors are sealed with poured in place polyurethane gasket External screw clamps on door Continuously hinged door is removable by pulling hinge pin Print pocket is provided Door and body stiffeners are provided in larger enclosures for added rigidity Collar studs are provided for mounting optional back panels External mounting feet Ground stud located in door ANSI-61 gray polyester powder inside and out finish Provide protection from dirt, dust, oil and water 20 in H
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Capacity | 2800 in³ |
| Catalog Number | B202007CH |
| Color | Gray |
| Construction | Continuously Welded Seams |
| Country of Origin | US |
| Cover Type | Continuous Hinged |
| Cubic Capacity | 2800 cu. in. in³ |
| Currency | USD |
| EU RoHS Indicator | Y |
| Finish | Smooth |
| Gross Volume Per Pack | 2800.00 |
| Gross Volume per Pack Metric | 45883.60 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 35.0000 lb |
| Gross Weight per Pack Metric | 15.88 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height [Metric] | 50.8000 cm |
| Length [Metric] | 17.7800 cm |
| Mounting | External mounting feet |
| Mounting Type | Wall |
| Panel Size | 17 in H x 17 in W |
| Returnable | Y |
| Series | Large B-CH |
| Size | 20" H x 20" W x 7" D |
| Standard | UL, CSA |
| Type | Oiltight |
| UNSPSC | 39121324 |
| UPC 11 | 78672533511 |
| UPC 12 | 786725335114 |
| Width [Metric] | 50.8000 cm |
| Stock Status | NONSTOCK |
| Brand | Wiegmann® |
| Manufacturer | Wiegmann |
| Depth | 7 in |
| Height | 20.00 in |
| Length | 7.00 in |
| Material | Carbon Steel |
| NEMA Rating | NEMA 12/13 |
| Width | 20.00 in |
| Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. |
| Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Doors are sealed with poured-in-place polyurethane gasket. External screw clamps on door. Continuously hinged door is removable by pulling hinged pin. Print pocket is provided. Collar studs are provided for mounting optional back panels. External mounting feet. Ground stud located in door. |
| Body and doors fabricated from 14 ga steel |
| Continuously welded seams ground smooth, less knockouts or holes |
| Doors are sealed with poured in place polyurethane gasket |
| External screw clamps on door |
| Continuously hinged door is removable by pulling hinge pin |
| Print pocket is provided |
| Door and body stiffeners are provided in larger enclosures for added rigidity |
| Collar studs are provided for mounting optional back panels |
| External mounting feet |
| Ground stud located in door |
| ANSI-61 gray polyester powder inside and out finish |
| Provide protection from dirt, dust, oil and water |
| 20 in H |
