Wiegmann®

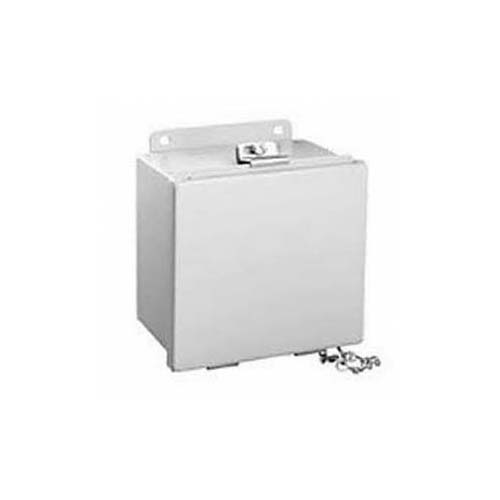

Wiegmann® B161406 JIC,CS,CLAMP COVER,16X1
Custom_Product_Images_Illustration
Wiegmann®
Wiegmann® B161406 JIC,CS,CLAMP COVER,16X1
SKU889727
MFGR #B161406
Your Cost: $461.39/ea
The Hubbell Wiegmann B Series JIC box is a standard of the automotive industry but has wide application in other industries. The box incorporates a chain secured lift off cover and is designed to safeguard components against exposure to dust, dirt, oil and water.
The Hubbell Wiegmann B Series JIC box is a standard of the automotive industry but has wide application in other industries. The box incorporates a chain secured lift off cover and is designed to safeguard components against exposure to dust, dirt, oil and water.
ARRA Compliant C Buy American Compliant C Capacity 1344 in³ Catalog Number B161406 Color Gray Construction Continuously Welded Seams Country of Origin US Cover Type Lift-Off Cubic Capacity 1344 cu. in. in³ Currency USD EU RoHS Indicator Y Finish Textured Gross Volume Per Pack 1344.00 Gross Volume per Pack Metric 22024.13 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 21.0000 lb Gross Weight per Pack Metric 9.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height [Metric] 40.6400 cm Length [Metric] 15.2400 cm Mounting External mounting plates Mounting Type Wall Panel Size 12.88 in H x 14.88 in W Returnable Y Series B Series Size 16" H x 14" W x 6" D Standard UL, CSA Type Carbon steel NEMA 12 JIC lift-off cover wall-mount enclosure UNSPSC 39121324 UPC 11 78672533095 UPC 12 786725330959 Width [Metric] 35.5600 cm Stock Status NONSTOCK Brand Wiegmann® Manufacturer Wiegmann Depth 6 in Height 16.00 in Length 6.00 in Material Carbon Steel NEMA Rating NEMA 12/13 Width 14.00 in The Hubbell Wiegmann B Series JIC box is a standard of the automotive industry but has wide application in other industries. The box incorporates a chain secured lift off cover and is designed to safeguard components against exposure to dust, dirt, oil, a Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. External screw clamps are quick and easy to operate. Lift off cover design. Chain holds cover to box when cover is removed. Grounding provisions provided. Body 14 ga and doors fabricated from 16 ga steel Continuously welded seams ground smooth, less knockouts or holes Lids are sealed with closed cell oil resistant neoprene gasket External mounting plates, top and bottom of enclosure Weldnuts are provided to secure optional back panel External screw clamps are quick and easy to operate Lift off cover design and chain holds cover to box when cover is removed Grounding provisions provided ANSI-61 gray polyester powder inside and out finish 16 in H 16-3/4 x 12 in mounting 17-1/2 x 14.31 in overall
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Capacity | 1344 in³ |
| Catalog Number | B161406 |
| Color | Gray |
| Construction | Continuously Welded Seams |
| Country of Origin | US |
| Cover Type | Lift-Off |
| Cubic Capacity | 1344 cu. in. in³ |
| Currency | USD |
| EU RoHS Indicator | Y |
| Finish | Textured |
| Gross Volume Per Pack | 1344.00 |
| Gross Volume per Pack Metric | 22024.13 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 21.0000 lb |
| Gross Weight per Pack Metric | 9.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height [Metric] | 40.6400 cm |
| Length [Metric] | 15.2400 cm |
| Mounting | External mounting plates |
| Mounting Type | Wall |
| Panel Size | 12.88 in H x 14.88 in W |
| Returnable | Y |
| Series | B Series |
| Size | 16" H x 14" W x 6" D |
| Standard | UL, CSA |
| Type | Carbon steel NEMA 12 JIC lift-off cover wall-mount enclosure |
| UNSPSC | 39121324 |
| UPC 11 | 78672533095 |
| UPC 12 | 786725330959 |
| Width [Metric] | 35.5600 cm |
| Stock Status | NONSTOCK |
| Brand | Wiegmann® |
| Manufacturer | Wiegmann |
| Depth | 6 in |
| Height | 16.00 in |
| Length | 6.00 in |
| Material | Carbon Steel |
| NEMA Rating | NEMA 12/13 |
| Width | 14.00 in |
| The Hubbell Wiegmann B Series JIC box is a standard of the automotive industry but has wide application in other industries. The box incorporates a chain secured lift off cover and is designed to safeguard components against exposure to dust, dirt, oil, a |
| Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. External screw clamps are quick and easy to operate. Lift off cover design. Chain holds cover to box when cover is removed. Grounding provisions provided. |
| Body 14 ga and doors fabricated from 16 ga steel |
| Continuously welded seams ground smooth, less knockouts or holes |
| Lids are sealed with closed cell oil resistant neoprene gasket |
| External mounting plates, top and bottom of enclosure |
| Weldnuts are provided to secure optional back panel |
| External screw clamps are quick and easy to operate |
| Lift off cover design and chain holds cover to box when cover is removed |
| Grounding provisions provided |
| ANSI-61 gray polyester powder inside and out finish |
| 16 in H |
| 16-3/4 x 12 in mounting |
| 17-1/2 x 14.31 in overall |
