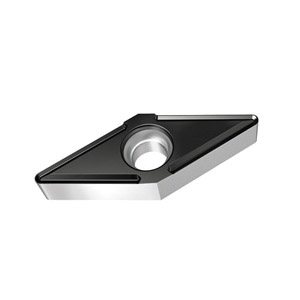

Valenite Tiger-tec® Silver 7054157 Positive Single Sided Turning Insert, VBMT221-FM6 WSM10S ANSI, Rhombic, VBMT Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7054157 Positive Single Sided Turning Insert, VBMT221-FM6 WSM10S ANSI, Rhombic, VBMT Insert
SKUPDW~12584955
MFGR #VBMT221-FM6WSM10S
Your Cost: $31.72/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code VBMT221-FM6 WSM10S Catalog Number VBMT221-FM6WSM10S Corner Radius 0.4 mm Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 1 lb Hole Diameter 2.8 mm Included Angle 35 ° ISO Code VBMT110304-FM6 WSM10S Relief Angle 5 ° Series Tiger-tec® Silver Sub Brand Tiger-tec® Thickness 3.18 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker FM6 Cutting Direction Neutral For Use On Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys, Austenitic Stainless Steel, Austenitic-Ferritic Steel and Steel Casting Inscribed Circle 6.35 mm Insert Size 221 Insert Style VBMT Manufacturer's Grade WSM10S Material Carbide Material Grade M, S Maximum Depth of Cut 1.6 mm Rake Positive Seat Size 11 Shape Rhombic TN60 grade general purpose cermet with superior wear resistance and toughness Cutting of steel and stainless steel Applicable on high temperature alloys and austenitic stainless steels 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.08 to 0.2 mm feed/rev 11.1 mm cutting edge length 7 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | VBMT221-FM6 WSM10S |
| Catalog Number | VBMT221-FM6WSM10S |
| Corner Radius | 0.4 mm |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 1 lb |
| Hole Diameter | 2.8 mm |
| Included Angle | 35 ° |
| ISO Code | VBMT110304-FM6 WSM10S |
| Relief Angle | 5 ° |
| Series | Tiger-tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 3.18 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | FM6 |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys, Austenitic Stainless Steel, Austenitic-Ferritic Steel and Steel Casting |
| Inscribed Circle | 6.35 mm |
| Insert Size | 221 |
| Insert Style | VBMT |
| Manufacturer's Grade | WSM10S |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 1.6 mm |
| Rake | Positive |
| Seat Size | 11 |
| Shape | Rhombic |
| TN60 grade general purpose cermet with superior wear resistance and toughness |
| Cutting of steel and stainless steel |
| Applicable on high temperature alloys and austenitic stainless steels |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.08 to 0.2 mm feed/rev |
| 11.1 mm cutting edge length |
| 7 deg rake |
