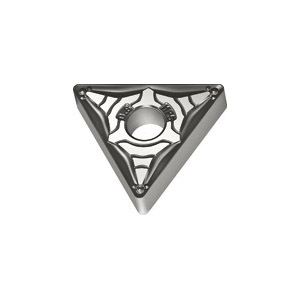

Valenite Tiger-tec® Silver 6407605 Double Sided Negative Turning Insert, TNMG543-MP5 WPP20S ANSI, Triangle, TNMG Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 6407605 Double Sided Negative Turning Insert, TNMG543-MP5 WPP20S ANSI, Triangle, TNMG Insert
SKU959380
MFGR #TNMG543-MP5 WPP20S
$/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code TNMG543-MP5 WPP20S Catalog Number TNMG543-MP5 WPP20S Corner Radius 1.2 mm Country of Origin DE Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0300 lb Hole Diameter 6.35 mm Included Angle 60 ° ISO Code TNMG270612-MP5 WPP20S Relief Angle 0 ° Series Tiger-tec® Silver Sub Brand Tiger-tec® Thickness 6.35 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker MP5 Cutting Direction Neutral For Use On Steel Inscribed Circle 15.875 mm Insert Size 543 Insert Style TNMG Manufacturer's Grade WPP20S Material Carbide Material Grade P Maximum Depth of Cut 7 mm Rake Negative Seat Size 27 Shape Triangle Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish Wiper geometries available for high feeds and high quality surface finish Ground, super sharp insert offer for exceptional surface finish Long cutting times Maximum wear resistance 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.3 to 0.5 mm feed/rev 27.496 mm cutting edge length
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | TNMG543-MP5 WPP20S |
| Catalog Number | TNMG543-MP5 WPP20S |
| Corner Radius | 1.2 mm |
| Country of Origin | DE |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hole Diameter | 6.35 mm |
| Included Angle | 60 ° |
| ISO Code | TNMG270612-MP5 WPP20S |
| Relief Angle | 0 ° |
| Series | Tiger-tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 6.35 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | MP5 |
| Cutting Direction | Neutral |
| For Use On | Steel |
| Inscribed Circle | 15.875 mm |
| Insert Size | 543 |
| Insert Style | TNMG |
| Manufacturer's Grade | WPP20S |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | 7 mm |
| Rake | Negative |
| Seat Size | 27 |
| Shape | Triangle |
| Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| Long cutting times |
| Maximum wear resistance |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.3 to 0.5 mm feed/rev |
| 27.496 mm cutting edge length |
