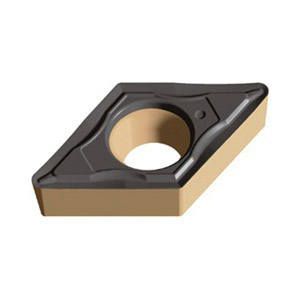

Valenite Tiger-tec® Silver 5848640 Positive Single Sided Turning Insert, DCMT3(2.5)1-PF4 WSM10 ANSI, Rhombic, Carbide
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 5848640 Positive Single Sided Turning Insert, DCMT3(2.5)1-PF4 WSM10 ANSI, Rhombic, Carbide
SKUPDW~9945973
MFGR #DCMT3(2.5)1-PF4WSM10
$/ea
VALENITE Tiger-tec® Silver Turning Insert, Positive Single Sided, DCMT Insert, Rhombic, 1.5 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.97 mm Thickness, PF4 Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturer's Grade: WSM10, ANSI Code: DCMT3(2.5)1-PF4 WSM10, ISO Code: DCMT11T304-PF4 WSM10, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
VALENITE Tiger-tec® Silver Turning Insert, Positive Single Sided, DCMT Insert, Rhombic, 1.5 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.97 mm Thickness, PF4 Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturer's Grade: WSM10, ANSI Code: DCMT3(2.5)1-PF4 WSM10, ISO Code: DCMT11T304-PF4 WSM10, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
ANSI Code DCMT3(2.5)1-PF4 WSM10 Catalog Number DCMT3(2.5)1-PF4WSM10 Corner Radius 0.4 mm Country of Origin DE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 4.4 mm Included Angle 55 deg ISO Code DCMT11T304-PF4 WSM10 Relief Angle 7 deg Sub Brand Tiger-tec® Thickness 3.97 mm Type Positive Single Sided Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker PF4 Inscribed Circle 9.525 mm Insert Style DCMT Manufacturer's Grade WSM10 Material Carbide Material Grade M/P/S Maximum Depth of Cut 1.5 mm Shape Rhombic PF4 Geometry - Finishing insert Outstanding chip control Can also be used for precision boring 40 to 60 deg double countersink hole 2 cutting edges 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.05 to 0.16 mm feed/rev 11.628 mm cutting edge length 11 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | DCMT3(2.5)1-PF4 WSM10 |
| Catalog Number | DCMT3(2.5)1-PF4WSM10 |
| Corner Radius | 0.4 mm |
| Country of Origin | DE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 4.4 mm |
| Included Angle | 55 deg |
| ISO Code | DCMT11T304-PF4 WSM10 |
| Relief Angle | 7 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 3.97 mm |
| Type | Positive Single Sided |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | PF4 |
| Inscribed Circle | 9.525 mm |
| Insert Style | DCMT |
| Manufacturer's Grade | WSM10 |
| Material | Carbide |
| Material Grade | M/P/S |
| Maximum Depth of Cut | 1.5 mm |
| Shape | Rhombic |
| PF4 Geometry - Finishing insert |
| Outstanding chip control |
| Can also be used for precision boring |
| 40 to 60 deg double countersink hole |
| 2 cutting edges |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.05 to 0.16 mm feed/rev |
| 11.628 mm cutting edge length |
| 11 deg rake |
