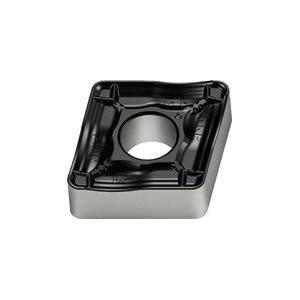

Valenite Tiger-tec® Silver 6164145 Negative Single Sided Turning Insert, CNMM643-NRF WPP30S ANSI, Rhombic, CNMM Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 6164145 Negative Single Sided Turning Insert, CNMM643-NRF WPP30S ANSI, Rhombic, CNMM Insert
SKUPDW~9945671
MFGR #CNMM643-NRFWPP30S
$/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code CNMM643-NRF WPP30S Catalog Number CNMM643-NRFWPP30S Corner Radius 1.2 mm Country of Origin DE Finish CVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Neutral Hole Diameter 7.93 mm Included Angle 80 deg ISO Code CNMM190612-NRF WPP30S Relief Angle 0 deg Sub Brand Tiger-tec® Thickness 6.35 mm Type Negative Single Sided Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker NRF Inscribed Circle 19.05 mm Insert Style CNMM Manufacturer's Grade WPP30S Material Carbide Material Grade K/M/P Maximum Depth of Cut 10 mm Shape Rhombic NRF Geometry - Universal single sided roughing insert Forged parts with uneven material removal Low power consumption Easy cutting geometry Cylindrical/double countersink hole 2 cutting edges 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.35 to 0.7 mm feed/rev 19.344 mm cutting edge length
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | CNMM643-NRF WPP30S |
| Catalog Number | CNMM643-NRFWPP30S |
| Corner Radius | 1.2 mm |
| Country of Origin | DE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 7.93 mm |
| Included Angle | 80 deg |
| ISO Code | CNMM190612-NRF WPP30S |
| Relief Angle | 0 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 6.35 mm |
| Type | Negative Single Sided |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | NRF |
| Inscribed Circle | 19.05 mm |
| Insert Style | CNMM |
| Manufacturer's Grade | WPP30S |
| Material | Carbide |
| Material Grade | K/M/P |
| Maximum Depth of Cut | 10 mm |
| Shape | Rhombic |
| NRF Geometry - Universal single sided roughing insert |
| Forged parts with uneven material removal |
| Low power consumption |
| Easy cutting geometry |
| Cylindrical/double countersink hole |
| 2 cutting edges |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.35 to 0.7 mm feed/rev |
| 19.344 mm cutting edge length |
