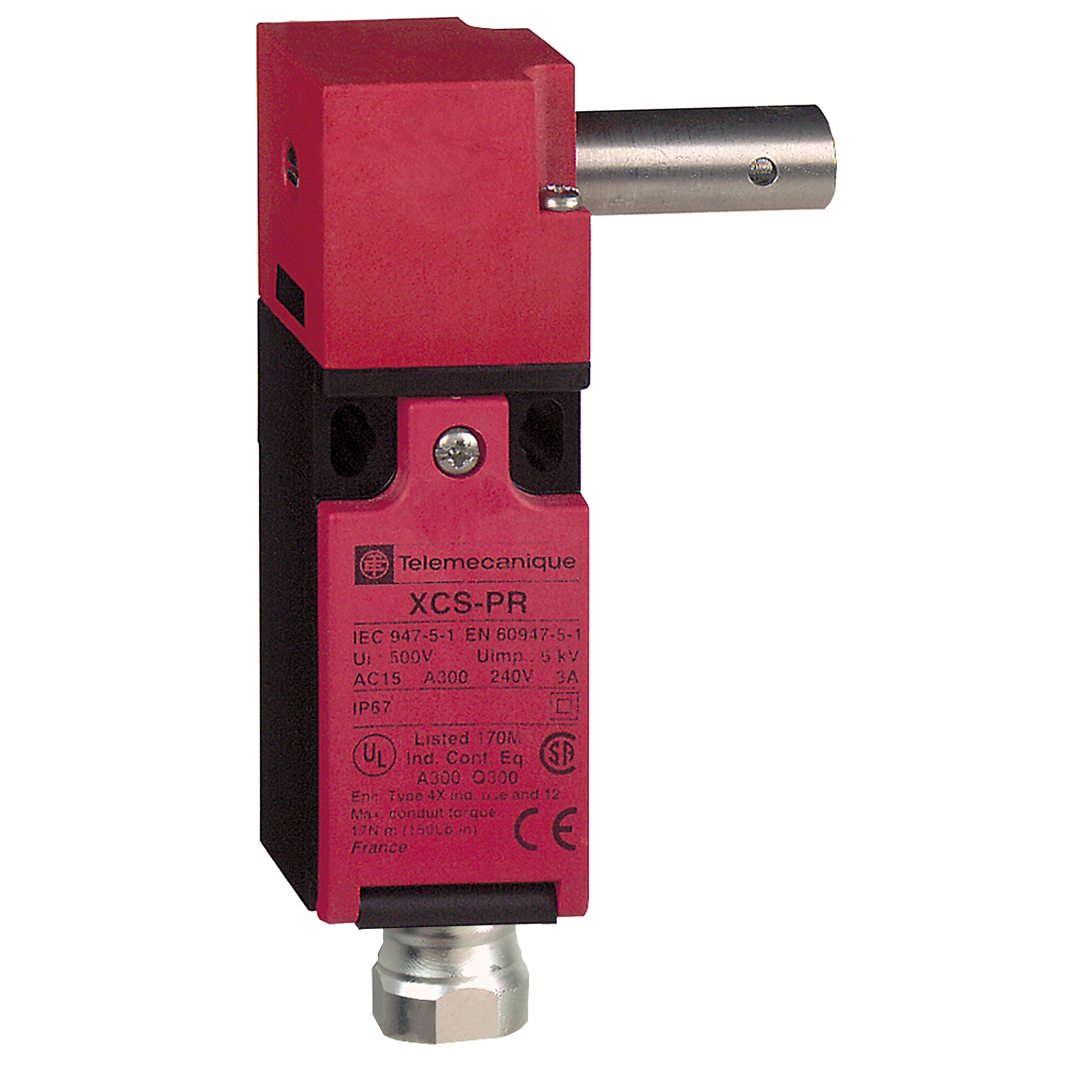

Telemecanique XCSPR753 ROTARY SHAFT N.C.+N.C.
Custom_Product_Images_Illustration
Telemecanique XCSPR753 ROTARY SHAFT N.C.+N.C.
SKU395529
MFGR #XCSPR753
Your Cost: $122.79/ea
Telemecanique Sensors XCSPR753 ROTARY SHAFT N.C.+N.C.,(1) 0.5 Inch NPT (Conduit Entrance) Screw Clamp,-25...70 deg.C,1 entry tapped 1/2 NPT,10 A,2 N.C.,2-Pole,300VAC,NEMA 4/4X/12 - IP67,Preventa Safety detection,guard switch,turret head rotary axis,Rotary Shaft (1.18),UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR4408794 Class 3211 03 - CE Marked,Water tight, Dust tight and Corrosion resistant (Indoor/Outdoor),plastic,turret head rotary axis
Telemecanique Sensors XCSPR753 ROTARY SHAFT N.C.+N.C.,(1) 0.5 Inch NPT (Conduit Entrance) Screw Clamp,-25...70 deg.C,1 entry tapped 1/2 NPT,10 A,2 N.C.,2-Pole,300VAC,NEMA 4/4X/12 - IP67,Preventa Safety detection,guard switch,turret head rotary axis,Rotary Shaft (1.18),UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR4408794 Class 3211 03 - CE Marked,Water tight, Dust tight and Corrosion resistant (Indoor/Outdoor),plastic,turret head rotary axis
Action SLOW-BREAK Actuator Spindle 30 mm;Stainless steel Alternate Catalog Number XCSPR753 Application TURRET HEAD ROTARY AXIS ARRA Compliant N Buy American Compliant N Catalog Number XCSPR753 Closed Contact Resistance 30 MOHM EN/IEC 60947-5-4 Connection TERMINAL Contact Configuration 1 NC + 1 NC Country of Origin FR Currency USD Dimensions 4.33 in H x 1.18 in W x 2.36 in D Enclosure Polyamide PA66 fibre glass impregnated Enclosure Type NEMA 4/4X/12/IP67 Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Weight Per Pack 0.2600 lb Gross Weight per Pack Metric 120.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509055 Height 4.5000 in Height [Metric] 4.5000 cm Hub Size 1/2 in NPT Insulation Double insulated Item Group 22411 Length 10.5000 in Length [Metric] 10.5000 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860014&lang=en-us Number Of Poles 2 Operating Temperature -25-70 A°C Returnable N Series XCSPR Size 2.36 in Standard 50 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL-BG,EN/IEC 60204-1-EN/IEC 60947-5-4-CSA C22.2 NO 14-UL 508-EN 1088/ISO 14119-EN/ISO 12100-EN/IEC 60947-5-1,IP67 IEC 60529,CLASS II EN/IEC 61140 Sub Brand XCSPR Type Rotary Axis Turret Head UNSPSC 39122213 UPC 11 78590137735 UPC 12 785901377351 Warranty Description Contractual Warranty:18 months Width 6.6000 in Width [Metric] 6.6000 cm Stock Status NORMALLY STOCKED Brand Telemecanique Sensors Manufacturer Telemecanique Sensors Amperage Rating 10 A Voltage Rating 300 VAC TURRET HEAD ROTARY AXIS PLASTIC Watertight, dusttight and corrosion-resistant With 12 x 30 mm rotating shaft actuator, 1/2 in NPT cable gland and plastic enclosure
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | Spindle 30 mm;Stainless steel |
| Alternate Catalog Number | XCSPR753 |
| Application | TURRET HEAD ROTARY AXIS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XCSPR753 |
| Closed Contact Resistance | 30 MOHM EN/IEC 60947-5-4 |
| Connection | TERMINAL |
| Contact Configuration | 1 NC + 1 NC |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 4.33 in H x 1.18 in W x 2.36 in D |
| Enclosure | Polyamide PA66 fibre glass impregnated |
| Enclosure Type | NEMA 4/4X/12/IP67 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2600 lb |
| Gross Weight per Pack Metric | 120.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 4.5000 in |
| Height [Metric] | 4.5000 cm |
| Hub Size | 1/2 in NPT |
| Insulation | Double insulated |
| Item Group | 22411 |
| Length | 10.5000 in |
| Length [Metric] | 10.5000 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860014&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | XCSPR |
| Size | 2.36 in |
| Standard | 50 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL-BG,EN/IEC 60204-1-EN/IEC 60947-5-4-CSA C22.2 NO 14-UL 508-EN 1088/ISO 14119-EN/ISO 12100-EN/IEC 60947-5-1,IP67 IEC 60529,CLASS II EN/IEC 61140 |
| Sub Brand | XCSPR |
| Type | Rotary Axis Turret Head |
| UNSPSC | 39122213 |
| UPC 11 | 78590137735 |
| UPC 12 | 785901377351 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.6000 in |
| Width [Metric] | 6.6000 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Telemecanique Sensors |
| Manufacturer | Telemecanique Sensors |
| Amperage Rating | 10 A |
| Voltage Rating | 300 VAC |
| TURRET HEAD ROTARY AXIS |
| PLASTIC |
| Watertight, dusttight and corrosion-resistant |
| With 12 x 30 mm rotating shaft actuator, 1/2 in NPT cable gland and plastic enclosure |
