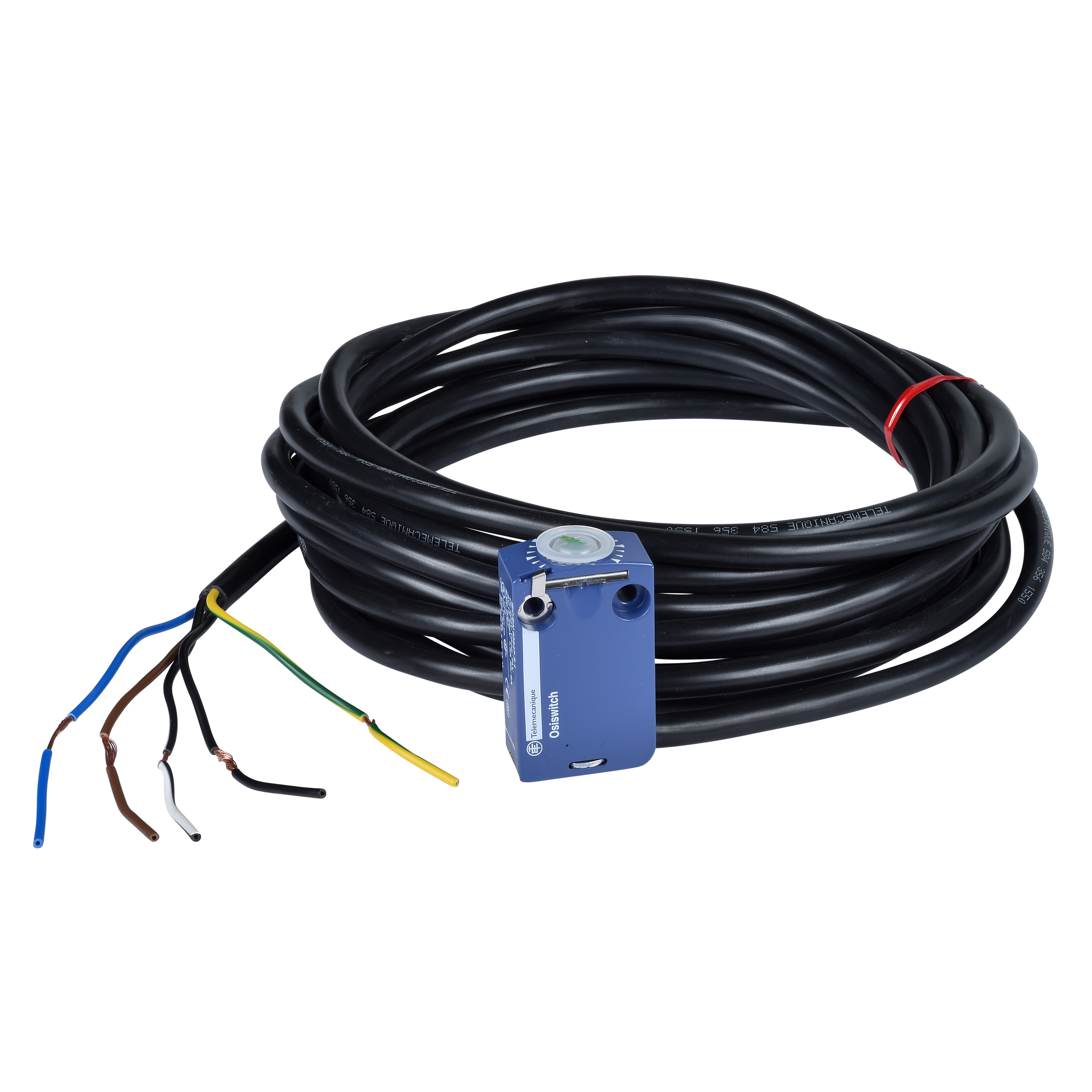

Telemecanique ZCMD21L5 LIMIT SWITCH 240VAC 5A
Custom_Product_Images_Illustration
Telemecanique ZCMD21L5 LIMIT SWITCH 240VAC 5A
SKU523948
MFGR #ZCMD21L5
Telemecanique Sensors ZCMD21L5 LIMIT SWITCH 240VAC 5A METAL ZCMD,1 NC + 1 NO,6 A,IEC, UL listed, CSA,OsiSense,OsiSense XC,fixed,limit switch body,XCMD,ZCMD,ZCMD,standard format,cable,fixed,fixed
Telemecanique Sensors ZCMD21L5 LIMIT SWITCH 240VAC 5A METAL ZCMD,1 NC + 1 NO,6 A,IEC, UL listed, CSA,OsiSense,OsiSense XC,fixed,limit switch body,XCMD,ZCMD,ZCMD,standard format,cable,fixed,fixed
Action Snap action Alternate Catalog Number ZCMD21L5 Amperage Rating 6 A Application XCMD ARRA Compliant N Buy American Compliant N Cable Length 16.40 ft Catalog Number ZCMD21L5 Closed Contact Resistance 25 MOHM IEC 60255-7 CATEGORY 3 Connection REMOVABLE CABLE Connection Type Removable Cable Country of Origin ID Currency USD Dimensions 1.97 in H x 1.18 in W x 0.63 in D EU RoHS Indicator Y Gross Volume Per Pack 94.50 Gross Volume per Pack Metric 1548.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.0700 lb Gross Weight per Pack Metric 485.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509055 Height 4.0000 in Height [Metric] 4.0000 cm Item Group 22413 Length 20.0000 in Length [Metric] 20.0000 cm Material Zamak Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880312&lang=en-us Number Of Poles 2 Returnable Y Series ZCMD Size 16 MM,30 MM,50-50 MM in Standard IEC, UL LISTED, CSA Sub Brand ZCMD Temperature Rating -40 to 158 deg F Storage Type 2-Pole Fixed Miniature UNSPSC 39122213 UPC 11 78590171182 UPC 12 785901711827 Warranty Description Contractual Warranty:18 months Width 20.0000 in Width [Metric] 20.0000 cm Stock Status NONSTOCK Brand Telemecanique Sensors Manufacturer Telemecanique Sensors Contact Configuration 1NO-1NC Contact Rating 1.5 A at 240 VAC, 0.1 A at 250 VDC Suitable For Use With XCMD Standard Format Limit Switch XCMD FIXED
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Snap action |
| Alternate Catalog Number | ZCMD21L5 |
| Amperage Rating | 6 A |
| Application | XCMD |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Length | 16.40 ft |
| Catalog Number | ZCMD21L5 |
| Closed Contact Resistance | 25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | REMOVABLE CABLE |
| Connection Type | Removable Cable |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 1.97 in H x 1.18 in W x 0.63 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 94.50 |
| Gross Volume per Pack Metric | 1548.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.0700 lb |
| Gross Weight per Pack Metric | 485.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 4.0000 in |
| Height [Metric] | 4.0000 cm |
| Item Group | 22413 |
| Length | 20.0000 in |
| Length [Metric] | 20.0000 cm |
| Material | Zamak |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880312&lang=en-us |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | ZCMD |
| Size | 16 MM,30 MM,50-50 MM in |
| Standard | IEC, UL LISTED, CSA |
| Sub Brand | ZCMD |
| Temperature Rating | -40 to 158 deg F Storage |
| Type | 2-Pole Fixed Miniature |
| UNSPSC | 39122213 |
| UPC 11 | 78590171182 |
| UPC 12 | 785901711827 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.0000 in |
| Width [Metric] | 20.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Telemecanique Sensors |
| Manufacturer | Telemecanique Sensors |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 1.5 A at 240 VAC, 0.1 A at 250 VDC |
| Suitable For Use With | XCMD Standard Format Limit Switch |
| XCMD |
| FIXED |
