Siemens

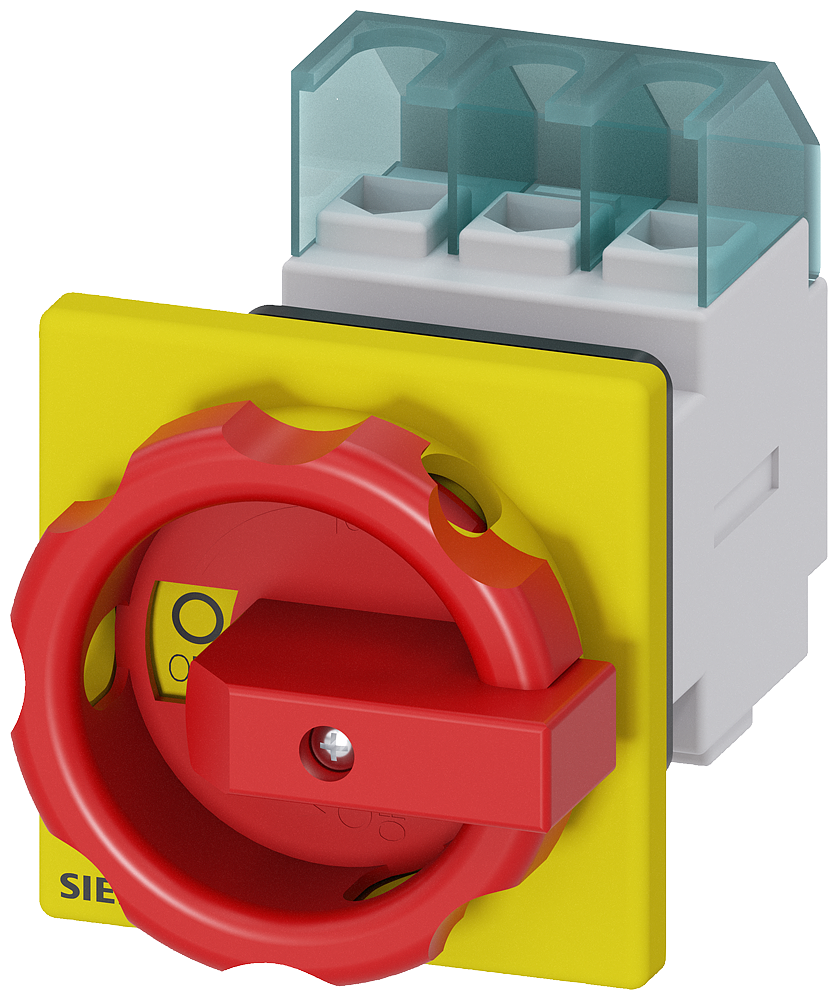

Sentron™ 3LD2254-0TK53 3LD Disconnect Switch, 690 VAC, 32 A, 3 Poles
Custom_Product_Images_Illustration
Siemens
Sentron™ 3LD2254-0TK53 3LD Disconnect Switch, 690 VAC, 32 A, 3 Poles
SKU133053
MFGR #3LD2254-0TK53
Your Cost: $159.49/ea
List: SIEMENS 3LD2254-0TK53 ROTARY DSC SWITCH
SIEMENS 3LD2254-0TK53 ROTARY DSC SWITCH
Actuator Rotary Actuator Type Rotary Alternate Catalog Number 3LD2254-0TK53 Application OEM Disconnect ARRA Compliant C Buy American Compliant C Catalog Number 3LD2254-0TK53 Color Red/Yellow Handle Conduit Connection N/A Connection N/A Contact Configuration N/A Contact Rating N/A Country of Origin DE Currency USD Dimensions 2.8 x 3.2 x 4.5 in Enclosure N/A Enclosure Type IP65 Environmental Conditions Indoor EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 57.67 Gross Volume UOM in Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509065 Height 4.5500 in Height [Metric] 11.5570 cm Indicator N/A Interrupt Rating 11.5kW Length 3.9000 in Length [Metric] 9.9060 cm Mounting Center Hole Mounted Mounting Type Center Hole/Front Number Of Poles 3 Operating Temperature -20F to 120F Ambient Temp Returnable Y Series 3LD Short Circuit Current Rating 50 kA Size 2.800x3.200x4.500 Standard UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCE CertifiedCSA CertifiedUL Listed Sub Brand SENTRON Temperature Rating -20 to 120 °F Terminal Type Box Trip Type N/A Type 3LD UNSPSC 39122233 UPC 11 75455472993 UPC 12 754554729930 Wattage N/A Width 3.2500 in Width [Metric] 8.2550 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 32 A Voltage Rating 690 VAC OEM Disconnect Red and Yellow Handle 3LD2 type switches are pad lockable in the OFF position
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Rotary |
| Actuator Type | Rotary |
| Alternate Catalog Number | 3LD2254-0TK53 |
| Application | OEM Disconnect |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 3LD2254-0TK53 |
| Color | Red/Yellow Handle |
| Conduit Connection | N/A |
| Connection | N/A |
| Contact Configuration | N/A |
| Contact Rating | N/A |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 2.8 x 3.2 x 4.5 in |
| Enclosure | N/A |
| Enclosure Type | IP65 |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 57.67 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 4.5500 in |
| Height [Metric] | 11.5570 cm |
| Indicator | N/A |
| Interrupt Rating | 11.5kW |
| Length | 3.9000 in |
| Length [Metric] | 9.9060 cm |
| Mounting | Center Hole Mounted |
| Mounting Type | Center Hole/Front |
| Number Of Poles | 3 |
| Operating Temperature | -20F to 120F Ambient Temp |
| Returnable | Y |
| Series | 3LD |
| Short Circuit Current Rating | 50 kA |
| Size | 2.800x3.200x4.500 |
| Standard | UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCE CertifiedCSA CertifiedUL Listed |
| Sub Brand | SENTRON |
| Temperature Rating | -20 to 120 °F |
| Terminal Type | Box |
| Trip Type | N/A |
| Type | 3LD |
| UNSPSC | 39122233 |
| UPC 11 | 75455472993 |
| UPC 12 | 754554729930 |
| Wattage | N/A |
| Width | 3.2500 in |
| Width [Metric] | 8.2550 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 32 A |
| Voltage Rating | 690 VAC |
| OEM Disconnect |
| Red and Yellow Handle |
| 3LD2 type switches are pad lockable in the OFF position |
