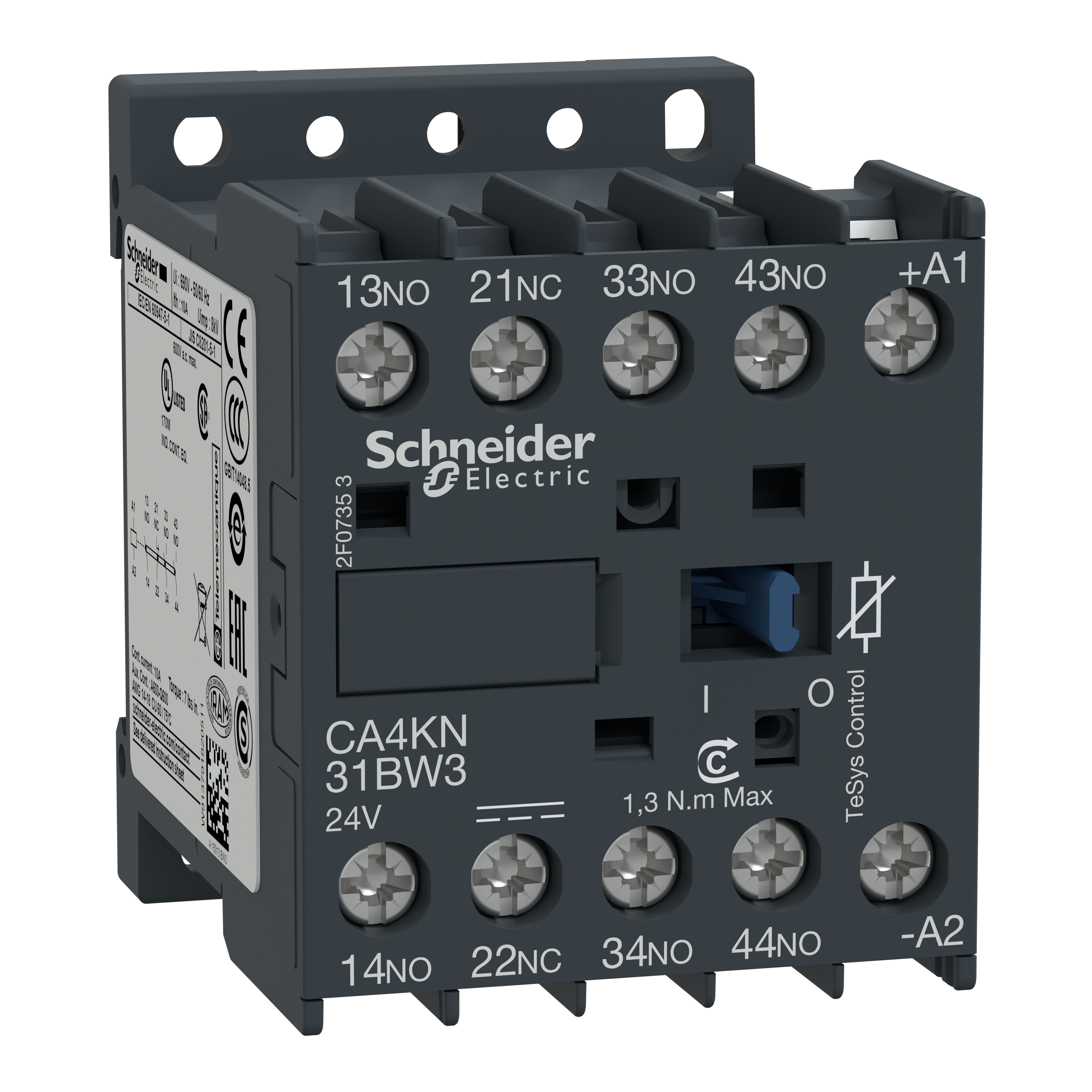

Schneider Electric TeSys CAK Control Relay, 10 A, 3NO-1NC Contact Form, 24 VDC Coil
Custom_Product_Images_Illustration
Schneider Electric TeSys CAK Control Relay, 10 A, 3NO-1NC Contact Form, 24 VDC Coil
SKU336281
MFGR #CA4KN31BW3
Your Cost: $87.33/ea
Schneider Electric CA4KN31BW3 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS,-25...50 deg.C,10 A at <= 50 deg.C,24VDC (Low Consumption),3 NO + 1 NC,IP2x,Screw Clamp,TeSys,UL Listed File Number 164353 CCN NKCR - CSA Certified File Number LR43364 Class 3211 03 - CE Marked,control circuit,control relay,plate-rail
Schneider Electric CA4KN31BW3 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS,-25...50 deg.C,10 A at <= 50 deg.C,24VDC (Low Consumption),3 NO + 1 NC,IP2x,Screw Clamp,TeSys,UL Listed File Number 164353 CCN NKCR - CSA Certified File Number LR43364 Class 3211 03 - CE Marked,control circuit,control relay,plate-rail
Alternate Catalog Number CA4KN31BW3 Application Control circuit ARRA Compliant N Buy American Compliant N Catalog Number CA4KN31BW3 Coil 24 V DC;Built-in bidirectional peak limiting diode suppressor Contact Configuration 3 NO + 1 NC Country of Origin US Currency USD Dimensions 58 mm H x 45 mm W x 57 mm D Enclosure IP2X Enclosure Type IP2X EU RoHS Indicator Y Gross Volume Per Pack 11.88 Gross Volume per Pack Metric 194.68 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.4900 lb Gross Weight per Pack Metric 220.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410050 Height 6.6000 in Height [Metric] 4.8000 cm Item Group 22371 Length 6.2000 in Length [Metric] 6.6000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=596380&lang=en-us Mounting Rail;plate Mounting Type DIN Rail/Panel Operating Temperature -25-50 A°C Power Rating 1.8 W Returnable Y Series TeSys™ CAK Size 2.24 in Standard IP2X,UL-CSA,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 Standards UL 164353, CSA File No. LR43364 Class 3211 03, CE Certified, IEC Rated Sub Brand TESYS Substitute Product Catalog Number LA2KT2E Temperature Rating -25 to 50 °C Terminal Type Screw/Clamp Type CONTROL RELAY UNSPSC 39122331 UPC 11 78590196728 UPC 12 785901967286 Warranty Description Contractual Warranty:18 months Width 4.8000 in Width [Metric] 6.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 24 VDC Contact Form 3NO-1NC Control circuit Built-in bidirectional peak limiting diode suppressor coil technology
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | CA4KN31BW3 |
| Application | Control circuit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | CA4KN31BW3 |
| Coil | 24 V DC;Built-in bidirectional peak limiting diode suppressor |
| Contact Configuration | 3 NO + 1 NC |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 57 mm D |
| Enclosure | IP2X |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 11.88 |
| Gross Volume per Pack Metric | 194.68 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.4900 lb |
| Gross Weight per Pack Metric | 220.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410050 |
| Height | 6.6000 in |
| Height [Metric] | 4.8000 cm |
| Item Group | 22371 |
| Length | 6.2000 in |
| Length [Metric] | 6.6000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=596380&lang=en-us |
| Mounting | Rail;plate |
| Mounting Type | DIN Rail/Panel |
| Operating Temperature | -25-50 A°C |
| Power Rating | 1.8 W |
| Returnable | Y |
| Series | TeSys™ CAK |
| Size | 2.24 in |
| Standard | IP2X,UL-CSA,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 |
| Standards | UL 164353, CSA File No. LR43364 Class 3211 03, CE Certified, IEC Rated |
| Sub Brand | TESYS |
| Substitute Product Catalog Number | LA2KT2E |
| Temperature Rating | -25 to 50 °C |
| Terminal Type | Screw/Clamp |
| Type | CONTROL RELAY |
| UNSPSC | 39122331 |
| UPC 11 | 78590196728 |
| UPC 12 | 785901967286 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.8000 in |
| Width [Metric] | 6.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 24 VDC |
| Contact Form | 3NO-1NC |
| Control circuit |
| Built-in bidirectional peak limiting diode suppressor coil technology |
