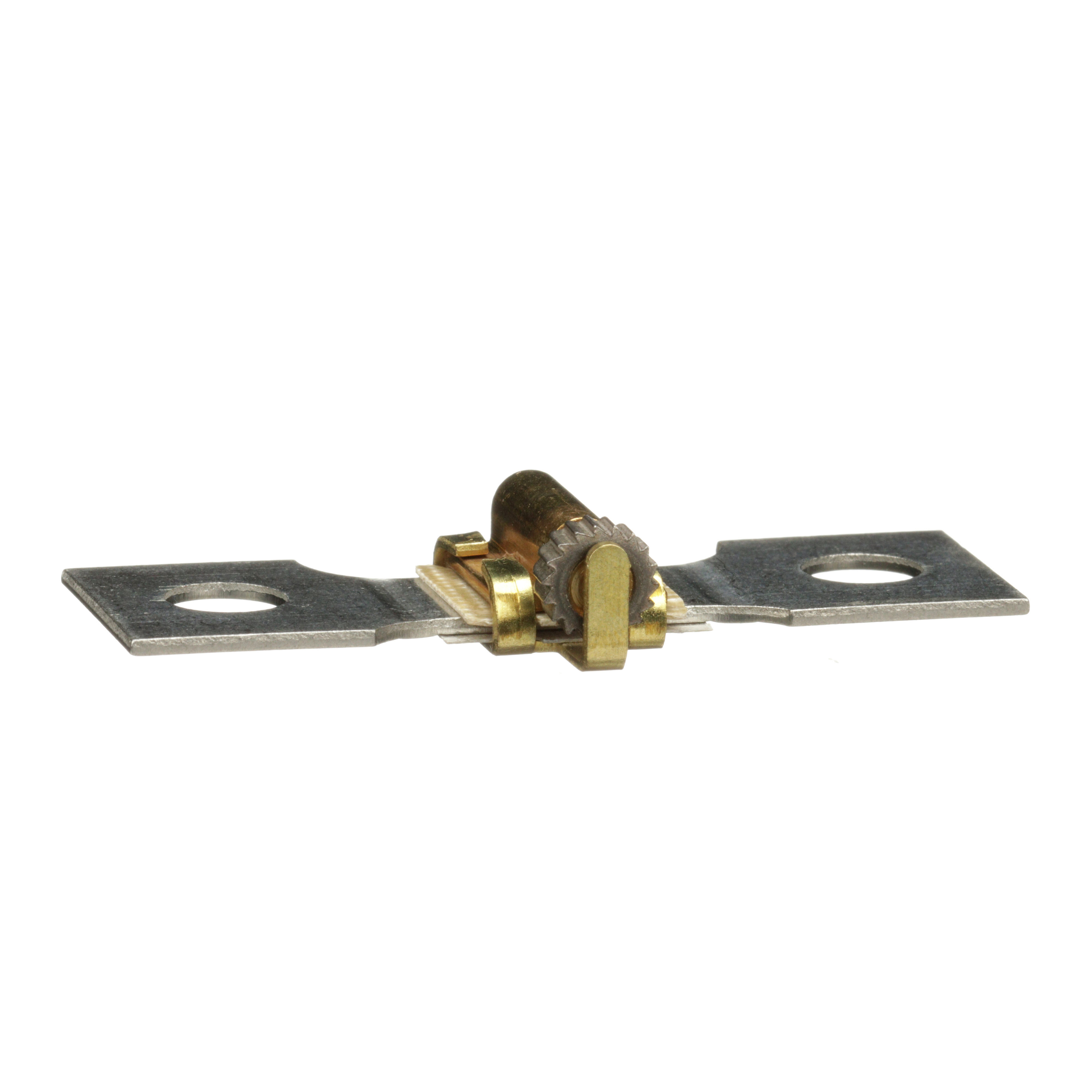

Square D™ CC81.5 Thermal Unit, 600 VAC
SKU34007
MFGR #CC81.5
Your Cost: $34.10/ea
List: Square D CC81.5 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 102,Thermal - Melting Alloy Thermal Unit
Square D CC81.5 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 102,Thermal - Melting Alloy Thermal Unit
Alternate Catalog Number CC81.5 Application FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS ARRA Compliant N Buy American Compliant N Catalog Number CC81.5 Country of Origin US Currency USD EU RoHS Indicator Y Full Load Current 46 to 105.7 A Gross Weight Per Pack 0.0700 lb Gross Weight per Pack Metric 31.75 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536308000 Height 2.0320 in Height [Metric] 2.0320 cm Item Group 21781 Length 8.3820 in Length [Metric] 8.3820 cm Maximum Motor Voltage 600VAC Mounting Type Plug-In Reset Type Manual Returnable Y Size 4.8 in L x 3.5 in W x 2.4 in H Sub Brand SCHNEIDER ELECTRIC Temperature Rating 40 °C Temperature Trip Range 40C AMBIENT RATED Trip Type Standard/Class 102 Type Melting Alloy UNSPSC 39122330 UPC 11 78590158812 UPC 12 785901588122 Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 5.8420 cm Stock Status NORMALLY STOCKED Brand Schneider Electric Manufacturer Schneider Electric Voltage Rating 600 VAC FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS NEMA OVERLOAD RELAYS Melting Alloy Thermal Units One-piece thermal unit construction Provides overload protection for most motors Calibration is set for a range of motor full load currents Repeated tripping does not affect the original calibration Cannot be reset until cooled Melting alloy thermal units are available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | CC81.5 |
| Application | FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | CC81.5 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Full Load Current | 46 to 105.7 A |
| Gross Weight Per Pack | 0.0700 lb |
| Gross Weight per Pack Metric | 31.75 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 2.0320 in |
| Height [Metric] | 2.0320 cm |
| Item Group | 21781 |
| Length | 8.3820 in |
| Length [Metric] | 8.3820 cm |
| Maximum Motor Voltage | 600VAC |
| Mounting Type | Plug-In |
| Reset Type | Manual |
| Returnable | Y |
| Size | 4.8 in L x 3.5 in W x 2.4 in H |
| Sub Brand | SCHNEIDER ELECTRIC |
| Temperature Rating | 40 °C |
| Temperature Trip Range | 40C AMBIENT RATED |
| Trip Type | Standard/Class 102 |
| Type | Melting Alloy |
| UNSPSC | 39122330 |
| UPC 11 | 78590158812 |
| UPC 12 | 785901588122 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.8420 in |
| Width [Metric] | 5.8420 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Voltage Rating | 600 VAC |
| FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| NEMA OVERLOAD RELAYS |
| Melting Alloy Thermal Units |
| One-piece thermal unit construction |
| Provides overload protection for most motors |
| Calibration is set for a range of motor full load currents |
| Repeated tripping does not affect the original calibration |
| Cannot be reset until cooled |
| Melting alloy thermal units are available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10) |
