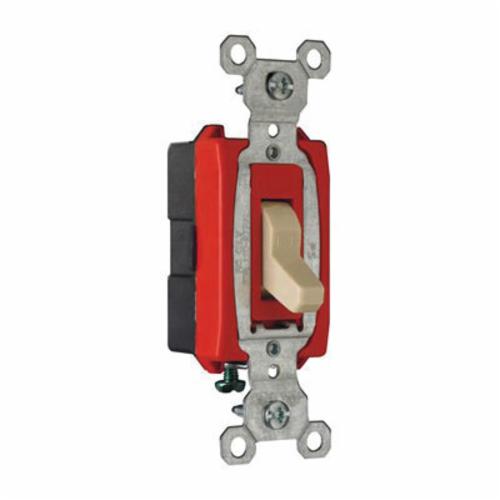

Pass & Seymour® CS20AC1-I Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1/2 hp
Custom_Product_Images_Illustration
Pass & Seymour® CS20AC1-I Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1/2 hp
SKU323563
MFGR #CS20AC1-I
Your Cost: $7.67/ea
Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy-gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.
Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy-gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.
Action Single pole Actuator Toggle Switch Application Commercial Catalog Number CS20AC1-I Color Ivory Contact Rating 20Amp, 120/277Vac Country of Origin MX Enclosure Nylon Gross Weight Per Pack 0.1500 lb Insulation None Mounting Wall Number Of Poles 1 Size 3.3 in Standard UL 498/20 Standards CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1 and WD-6, RoHS Complaint, UL File No. E140597 Listed Sub Brand Pass & Seymour Type Toggle Switch UNSPSC 39122211 UPC 11 78500712645 UPC 12 78500712645 Stock Status NONSTOCK Brand Pass & Seymour® Manufacturer Legrand Amperage Rating 20 A Voltage Rating 120/277 V Commercial Side wire, locking support, heavy duty toggle One-piece plated steel strap for corrosion-resistance Heavy-duty bumpers for quiet, smooth operation Oversized silver-alloy contacts for long life and better heat dissipation Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce Shallow design for easier installation Glass-reinforced nylon back body for durability and strength Cam designed for fast make with positive break action to minimize arcing and prolong switch life Locking support provides resistance to face and back body separation Side wire with NO 14 - 10 AWG copper or copper-clad wire Glass-reinforced nylon back body, nylon front body 1 hp at 120 V, 2 hp at 240 V, 2 hp at 277 V Nylon enclosure Side wire connection UL 94-V2 Flammability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Single pole |
| Actuator | Toggle Switch |
| Application | Commercial |
| Catalog Number | CS20AC1-I |
| Color | Ivory |
| Contact Rating | 20Amp, 120/277Vac |
| Country of Origin | MX |
| Enclosure | Nylon |
| Gross Weight Per Pack | 0.1500 lb |
| Insulation | None |
| Mounting | Wall |
| Number Of Poles | 1 |
| Size | 3.3 in |
| Standard | UL 498/20 |
| Standards | CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1 and WD-6, RoHS Complaint, UL File No. E140597 Listed |
| Sub Brand | Pass & Seymour |
| Type | Toggle Switch |
| UNSPSC | 39122211 |
| UPC 11 | 78500712645 |
| UPC 12 | 78500712645 |
| Stock Status | NONSTOCK |
| Brand | Pass & Seymour® |
| Manufacturer | Legrand |
| Amperage Rating | 20 A |
| Voltage Rating | 120/277 V |
| Commercial |
| Side wire, locking support, heavy duty toggle |
| One-piece plated steel strap for corrosion-resistance |
| Heavy-duty bumpers for quiet, smooth operation |
| Oversized silver-alloy contacts for long life and better heat dissipation |
| Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce |
| Shallow design for easier installation |
| Glass-reinforced nylon back body for durability and strength |
| Cam designed for fast make with positive break action to minimize arcing and prolong switch life |
| Locking support provides resistance to face and back body separation |
| Side wire with NO 14 - 10 AWG copper or copper-clad wire |
| Glass-reinforced nylon back body, nylon front body |
| 1 hp at 120 V, 2 hp at 240 V, 2 hp at 277 V |
| Nylon enclosure |
| Side wire connection |
| UL 94-V2 Flammability |
