McGill®

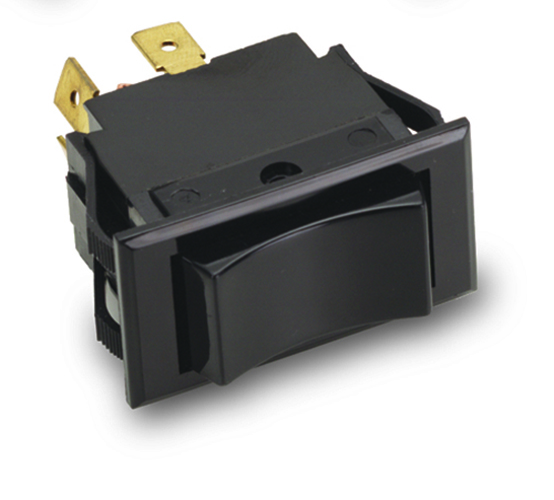

McGill® 08620013N 0862 Rocker Switch, 15 A, 125 VAC, DPST, 2 Poles
Custom_Product_Images_Illustration
McGill®
McGill® 08620013N 0862 Rocker Switch, 15 A, 125 VAC, DPST, 2 Poles
SKU956826
MFGR #08620013N
Your Cost: $20.57/ea
McGill® Rocker Switch, Series: 0862, 15 A, 125 VAC, DPST, 2 Poles, Rocker, Maintained/On/On, Snap-In Bracket, Quick-Connect Terminal, Nylon, 1.7 in L x 0.96 in W
McGill® Rocker Switch, Series: 0862, 15 A, 125 VAC, DPST, 2 Poles, Rocker, Maintained/On/On, Snap-In Bracket, Quick-Connect Terminal, Nylon, 1.7 in L x 0.96 in W
Action Maintained Actuator Rocker Amperage Rating 15 A Application Recognized for reliable, long service by appliance manufacturers and manufacutrers of industrial and commercial equipment ARRA Compliant N Buy American Compliant N Catalog Number 08620013N Color Black Connection 1/4" Quick Connect Terminal Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 0.23 in Height [Metric] 5.8420 mm Indicator Non-Lighted Length 6.00 in Length [Metric] 15.2400 cm Material Nylon 66 221 Mounting Nylon Snap-In Number Of Poles 2 Series 862 Standard UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant Standards RoHS CompliantCSA File No. 249055CSA C22.2 No. 55UL RecognizedUL File No. E335442UL 1054Guide WORY2 Switch Function ON/OFF Type 0852/0862 Series Rocker Switches UNSPSC 39122226 UPC 11 03628300138 UPC 12 036283001380 Voltage Rating 125 VAC Width 4.70 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand McGill® Manufacturer McGill Contact Configuration ON -- ON Contact Rating Silver Plated Contacts Electrical Ratings 15 A at 125 VAC, 10 A at 250 VAC, 3/4 hp at 250 VAC Recognized for reliable, long service by appliance manufacturers and manufacutrers of industrial and commercial equipment Designed for full-size rectangular cutouts. Designed to fit full-size rectangular cutouts. Angled corners are suggested for optimum fit, but standard rectangular cutouts are acceptable 1/4 in quick connect terminals Curved rockers with Illuminated single or dual lens to fit your style and functional requirements 125 Vac incandescent lamp standard Silver plate contacts Brass or copper terminals Phenolic 302 deg F/150 deg C base Nylon 66 221 deg F/105 deg C rocker and nylon bracket Curved/smooth face matte rocker Smooth face matte bracket 12 Vdc or 28 Vdc Neon lamp Nylon snap-in bezel mounting 125 VAC 15 A, 250 VAC 10 A electrical rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Maintained |
| Actuator | Rocker |
| Amperage Rating | 15 A |
| Application | Recognized for reliable, long service by appliance manufacturers and manufacutrers of industrial and commercial equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 08620013N |
| Color | Black |
| Connection | 1/4" Quick Connect Terminal |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 0.23 in |
| Height [Metric] | 5.8420 mm |
| Indicator | Non-Lighted |
| Length | 6.00 in |
| Length [Metric] | 15.2400 cm |
| Material | Nylon 66 221 |
| Mounting | Nylon Snap-In |
| Number Of Poles | 2 |
| Series | 862 |
| Standard | UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant |
| Standards | RoHS CompliantCSA File No. 249055CSA C22.2 No. 55UL RecognizedUL File No. E335442UL 1054Guide WORY2 |
| Switch Function | ON/OFF |
| Type | 0852/0862 Series Rocker Switches |
| UNSPSC | 39122226 |
| UPC 11 | 03628300138 |
| UPC 12 | 036283001380 |
| Voltage Rating | 125 VAC |
| Width | 4.70 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | McGill® |
| Manufacturer | McGill |
| Contact Configuration | ON -- ON |
| Contact Rating | Silver Plated Contacts |
| Electrical Ratings | 15 A at 125 VAC, 10 A at 250 VAC, 3/4 hp at 250 VAC |
| Recognized for reliable, long service by appliance manufacturers and manufacutrers of industrial and commercial equipment |
| Designed for full-size rectangular cutouts. |
| Designed to fit full-size rectangular cutouts. Angled corners are suggested for optimum fit, but standard rectangular cutouts are acceptable |
| 1/4 in quick connect terminals |
| Curved rockers with Illuminated single or dual lens to fit your style and functional requirements |
| 125 Vac incandescent lamp standard |
| Silver plate contacts |
| Brass or copper terminals |
| Phenolic 302 deg F/150 deg C base |
| Nylon 66 221 deg F/105 deg C rocker and nylon bracket |
| Curved/smooth face matte rocker |
| Smooth face matte bracket |
| 12 Vdc or 28 Vdc Neon lamp |
| Nylon snap-in bezel mounting |
| 125 VAC 15 A, 250 VAC 10 A electrical rating |
